ADJUSTING FORK
ADJUSTING THE REBOUND
DAMPER

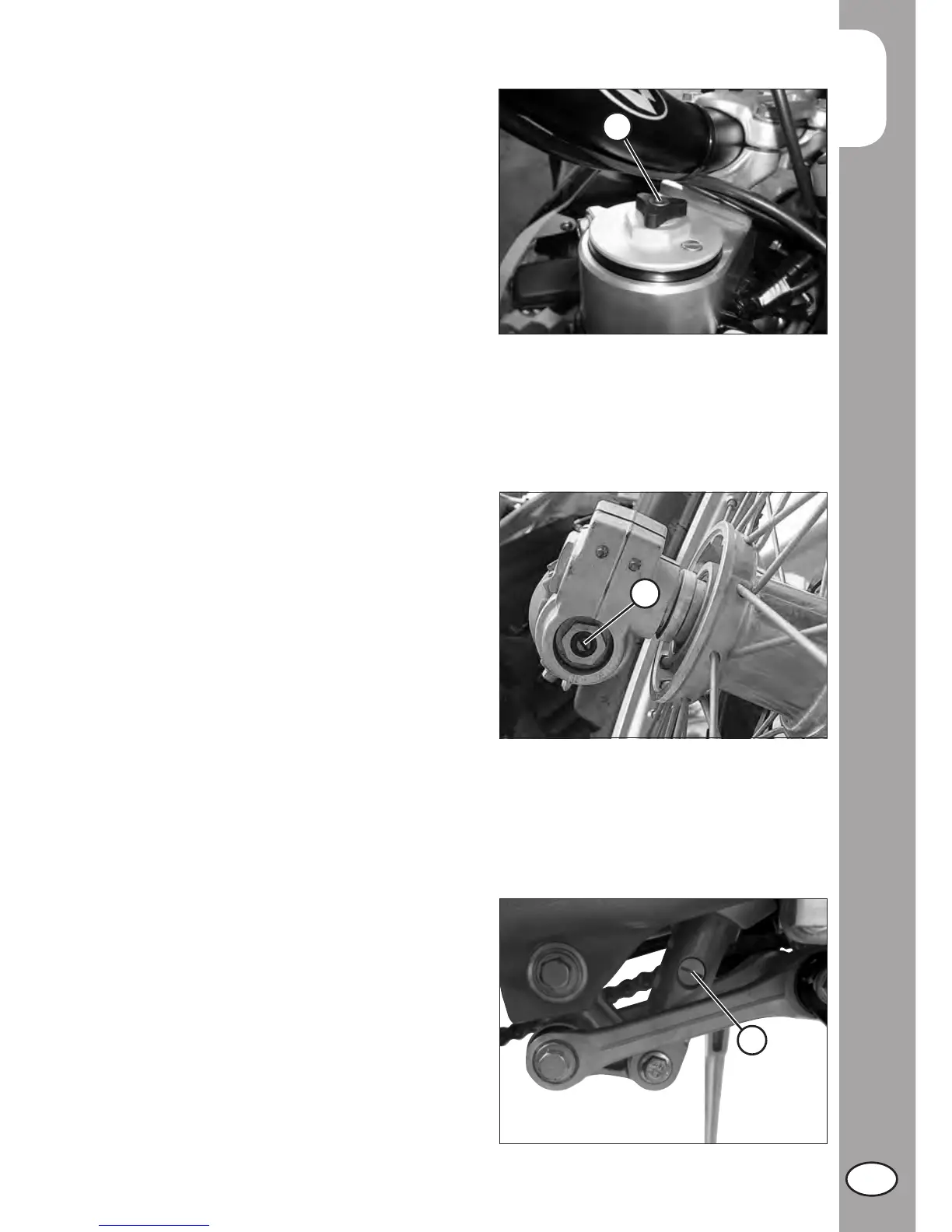

The hydraulic rebound damper determines
the behaviour of the telescopic fork during
extension and can be adjusted by means
of screw A. Turning the screw clockwise in-
creases the action of the rebound damper;
turning it anticlockwise decreases the ac-
tion of the rebound damper.
For standard calibration, refer to page
12.
ADJUSTING THE COMPRESSION
DAMPER
The hydraulic compression damper deter-
mines the behaviour of the telescopic fork
during compression and can be adjusted
by means of screw B located at the lower
end of the fork legs. Turning the screw
clockwise increases the action of the com-
pression damper; turning it anticlockwise
decreases the action of the compression
damper.
For standard calibration, refer to page
12.
SHOCK ABSORBER
ADJUSTING THE REBOUND
DAMPER
Turn screw A to adjust the hydraulic re-
bound damper.
Turning the screw anticlockwise (out) de-
creases the damping effect.
For standard setting, refer to
page 12.
