STATIC SAG LOAD TEST
To verify the static sag of the shock ab-
sorber proceed as follows:
-

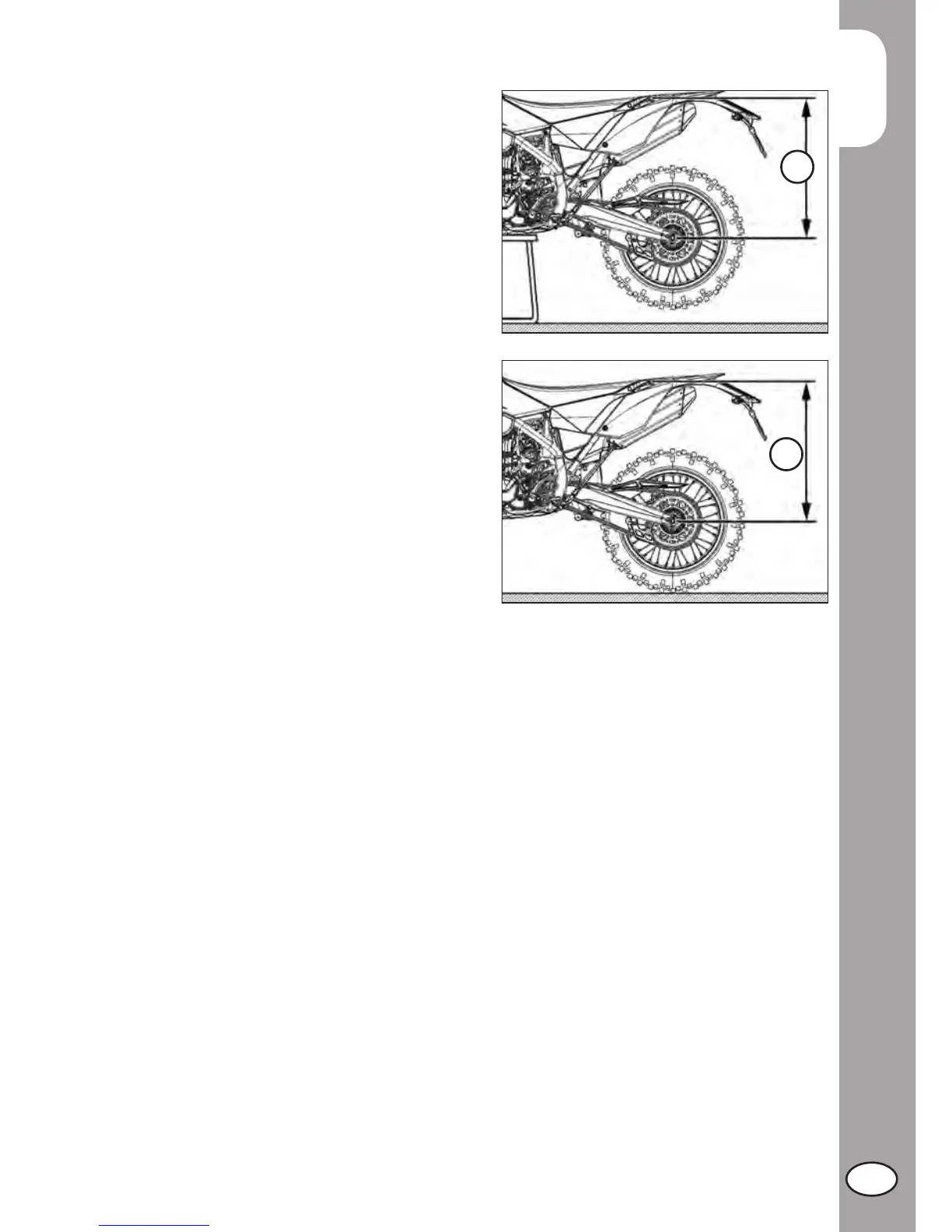

Place the motorcycle on the work stand.
- Measure the vertical distance between
the rear wheel axle and a reference point
on the rear fairings.
- Write down the dimension H
1
.
- Remove the work stand.
-
Keep the motorcycle in vertical position
and measure again the distance between
the wheel axle and the reference point
previously established.
- Write down the dimension H
2
.
Verify that the value of the static compres-
sion X = H
1
- H
2
matches the one shown on
page 11. Otherwise, perform the adjust-
ment of the spring preload as described
above.
