BETCO BPS28 - BELT REPLACEMENT; 5.6 REPLACING AND ADJUSTING THE BELTS

11
5.6 REPLACING AND ADJUSTING THE BELTS
To prepare the machine for belt replacement, carry out the following operations:
-Remove the top bonnet and the front bin.
-After removing the right wheel, loosen the screws that secure the bumper and right side guard in place and
remove the latter.
With the machine dismantled in such a manner, you can replace the damaged belt.
5.6.1 REPLACING THE DRIVE BELT

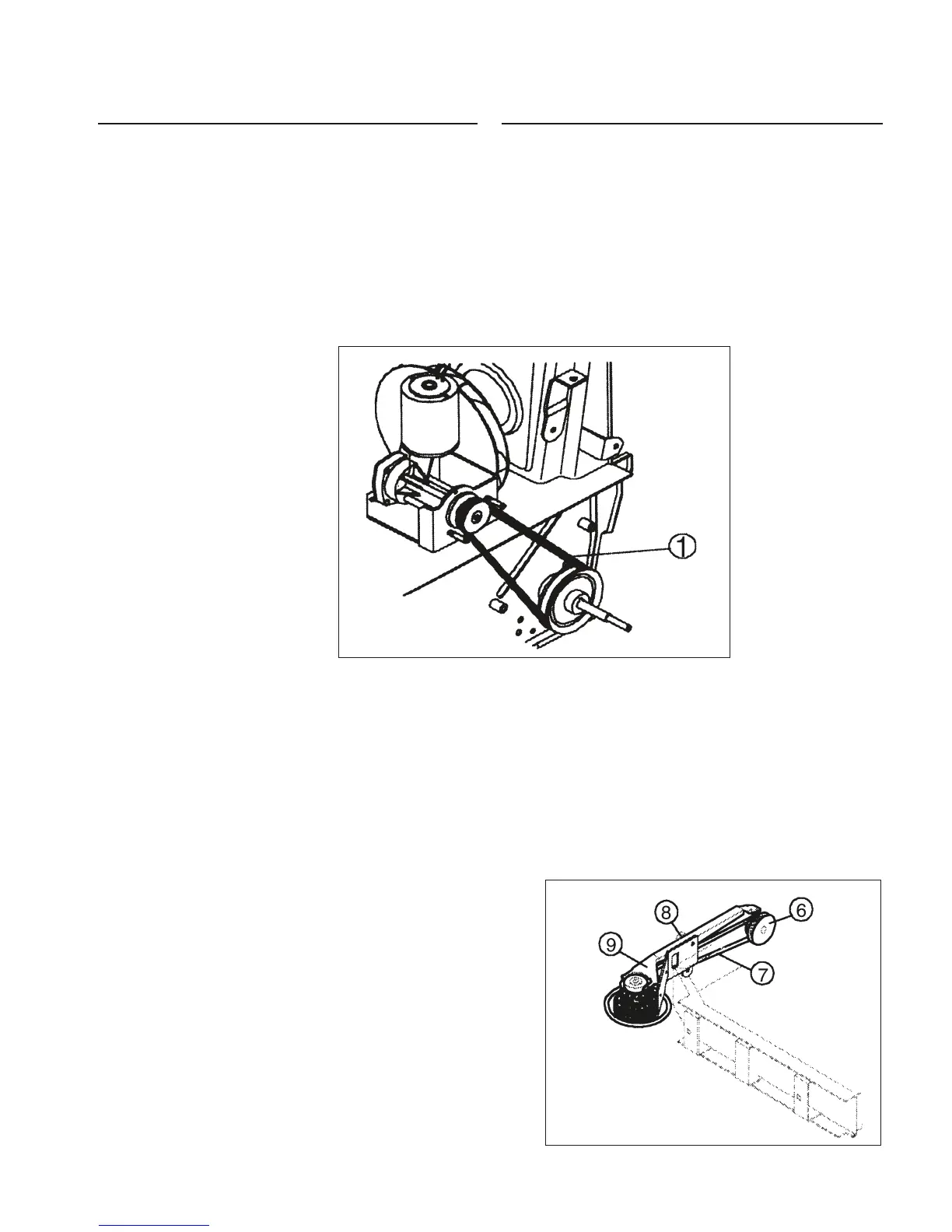

-Remove belt (#1, Fig. 6) from the grooves of pulley.
-Position belt on pulley
5.6.1 REPLACING THE SIDE BRUSH BELT
-Remove belt (#7, Fig. 6) from pulley (#6, Fig. 6). Loosen fixing pin (#8, Fig. 6) and let the hooks of side arm
(#9, Fig. 6) come out of the idle toothed ring.
-Remove belt (#7, Fig. 6) from side arm (#9, Fig. 6).
-Replace the belt.
-Hook side arm (#9, Fig. 6) to the idle toothed ring.
-Tighten pin (#8, Fig. 6).
-Place belt (#7, Fig. 6) on pulley (#6, Fig. 6).
Fig. 6A
Fig. 6B
