BETCO BPS28 - FLAP REPLACEMENT; 5.7 REPLACING THE FLAPS

12
5.7 REPLACING THE FLAPS
5.7.1 OUTER SIDE FLAPS
To replace the side flaps (#1, Fig. 7), remove the rear wheels and the relevant side guards. Loosen the screws that
secure the flaps to frame (#2, Fig. 7) and replace the old flaps with new ones.
5.7.2 INNER SIDE FLAPS
To replace the inner side flaps (#5, Fig. 7), lift the front part of the machine and loosen screws (#6, Fig. 7) that
secure the flaps to the frame. Replace the old flaps with new ones.
5.7.3 CENTER FLAPS
- Remove the rear wheels and the relevant side guards.
- Remove the rear door.
- Loosen the two two flap fixing pins (#3, Fig. 7), located on the sides of the frame. Grasp flap (#4, Fig. 7) and pull
it outward.
Remounting
- Fit the flaps in the same direction in which they are removed.
- Insert the two references in their holes.
- Tighten the two fixing pins and

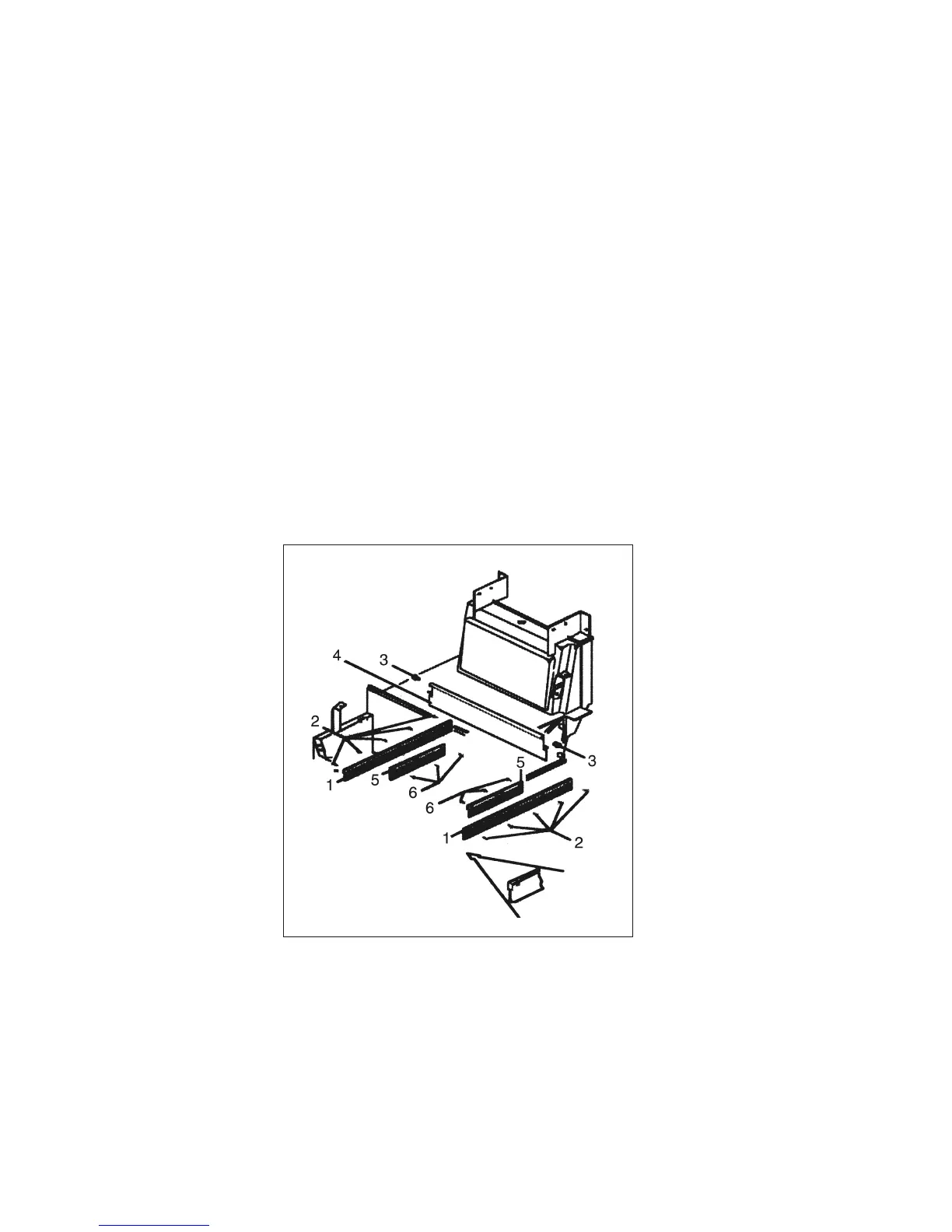

Fig. 7
