3. TS 900 Beltpack Transmitter
The TS 900 C beltpack transmitter provides charging contacts and can be powered by
rechargeable batteries as well.

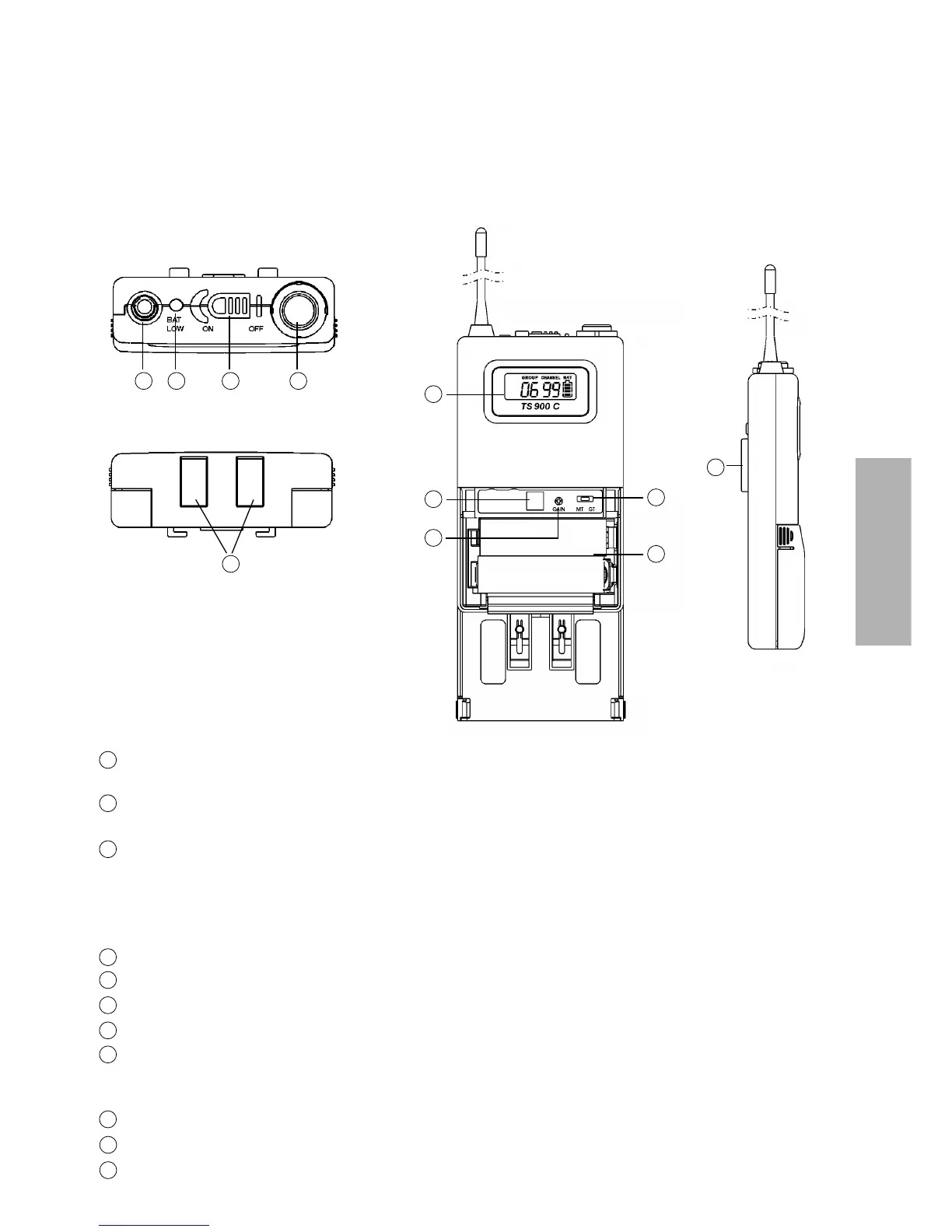

3.1 Controls and Indicators
AF input, 4-pin mini XLR for microphones (lavalier, neckworn mics).
For connection please refer to chapter 3.5 “AF Connection”.
ON/OFF switch (ON = switch to “ON“-position; OFF = switch to “OFF“ position).
Switch off the transmitter when not in use.
TS 900 C only: Battery status LED to indicate the power on / off and battery status.
(a) When the beltpack transmitter is switched on this LED will flash for a moment to
indicate the normal battery status.
(b) When the LED stays red after having switched on the transmitter the battery is to
weak and must be replaced.
Transmitting antenna
LC-Display
Infrared receiving diode for ACT function.
Gain control to adjust input gain.
GT/MT switch: When you use electric guitars this switch must be in the “GT“ position.
In the GT mode the gain control is deactivated. Switch to the “MT“ position when you
use condenser and wired microphones. In the MT mode the gain control is activated
Battery compartment and cover for two 1.5 V batteries (AA).
TS 900 C only: Charging contacts
Removable belt clip can be rotated 360°. To remove use a screwdriver at a 45° angle.
TS 900 C
1
5
234
6
7
8
9
11
10
1
2
3
4
5
6
7
8
9
10
11
