3.2.3 Orbis SU 63 System Unit
The Orbis SU 63 system unit provides mounting brackets for a variable installation, e.g. directly under
the table or upright into an armrest.
• Provide appropriate holes for the button, microphone and loudspeaker in the table top or armrest.
• Mount the system unit with the mounting brackets and appropriate screws to the table top or arm-
rest. Make sure that the system unit is even with the table edge or armrest. .
• Connect the gooseneck microphone to the appropriate connections.
Upright installation
During installation, make sure that you use screws that are suitable for your application (not included
in the delivery).

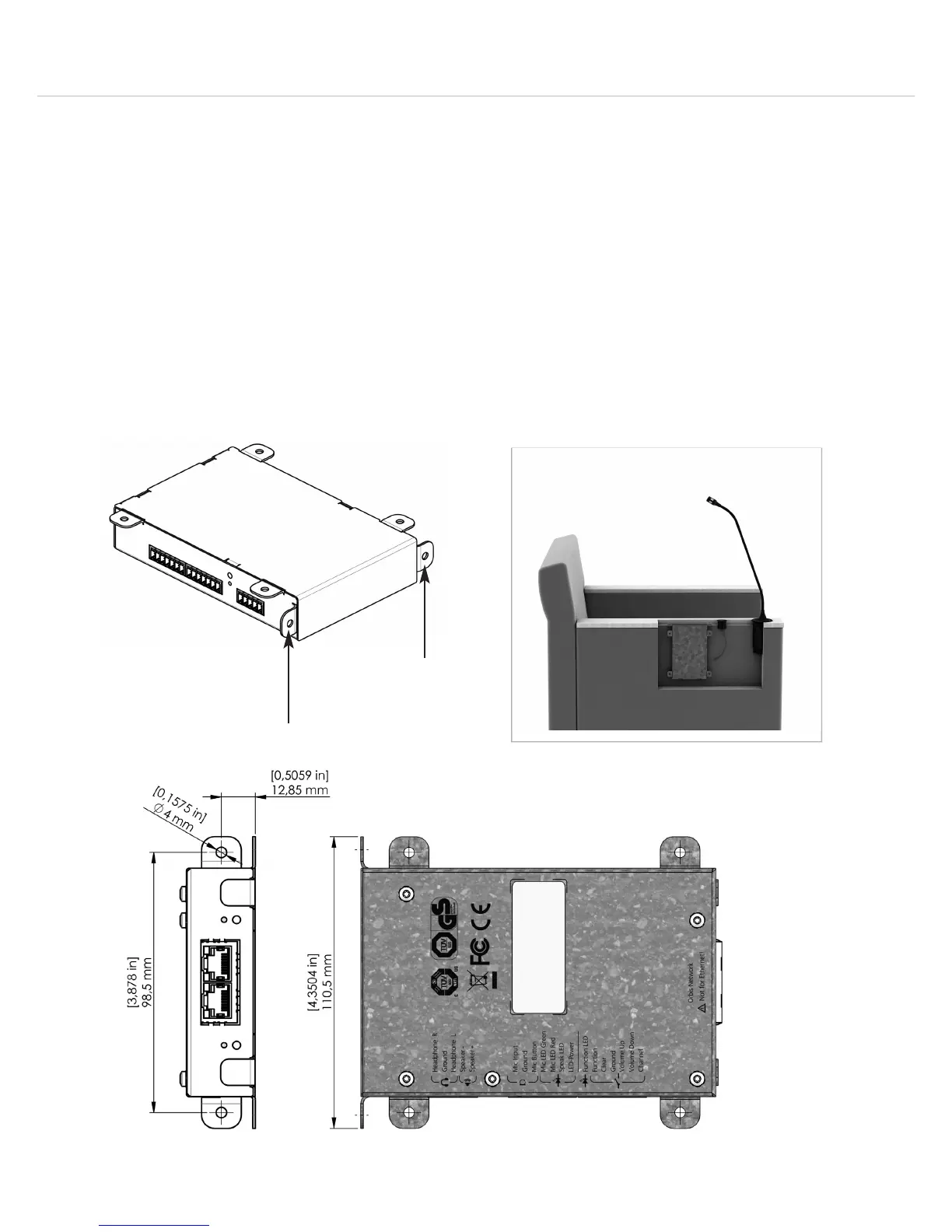

Mounting bracket
Mounting bracket
Upright installation into an armrest
