Beyerdynamic Orbis - Unit Installation Procedures

Orbis – Installation
14
3.2 Installation

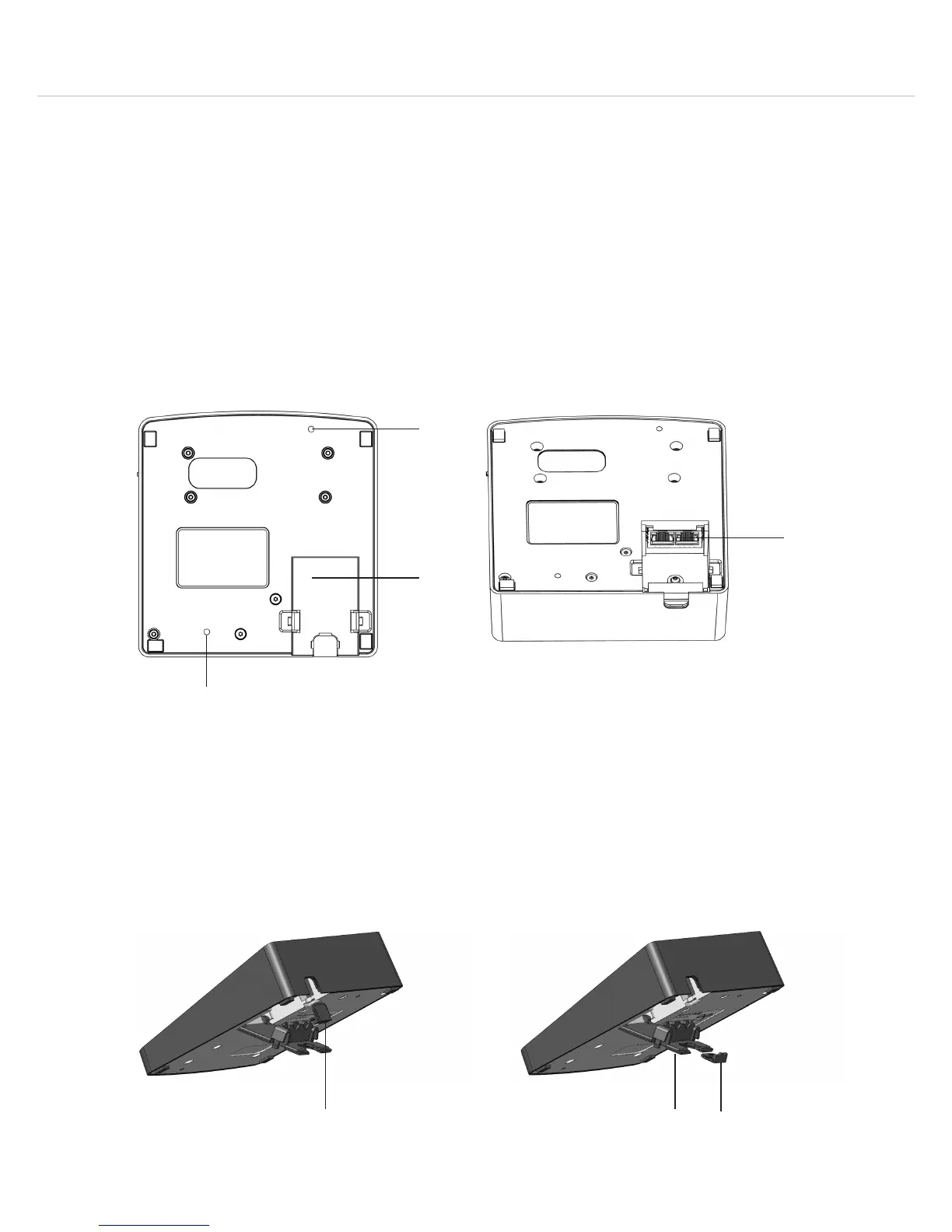

3.2.1 Orbis MU 23/21 Microphone Unit
The Orbis MU 23 and Orbis MU 21 microphone units have two threads  on the bottom to attach
the microphone unit on a table top. Use the appropriate drilling template to drill the holes into the
table top.




Remove cable cover
• Press the lateral flaps of the cable cover  inwards and remove the cable cover .
• Now you can connect the connecting cables to the In/Out sockets .
Cable outlet downwards
• If the connecting cables of the Orbis MU 23/21
microphone unit are to be routed downwards,
insert the sliding element  into the back of
the microphone unit.
Cable outlet backwards
• If the connecting cables of the Orbis MU 23/21
microphone unit are to be routed backwards,
insert the sliding element  into the cable
cover .

