Beyerdynamic Orbis - Page 8

 RS 232 interface
 Audio input, RCA phono, +2.2 dBu
 Audio output, RCA phono, +2.2 dBu
 Audio output, 3-pin XLR, +6 dBu
 Connection for microphone units line 1, RJ45 (Warning: No Ethernet Connection)
 Connection for microphone units line 2, RJ45 (Warning: No Ethernet Connection)
 48 V DC connection for power supply unit
Important: Only use the power supply unit supplied by beyerdynamic.
 Reset to restore the factory settings
      

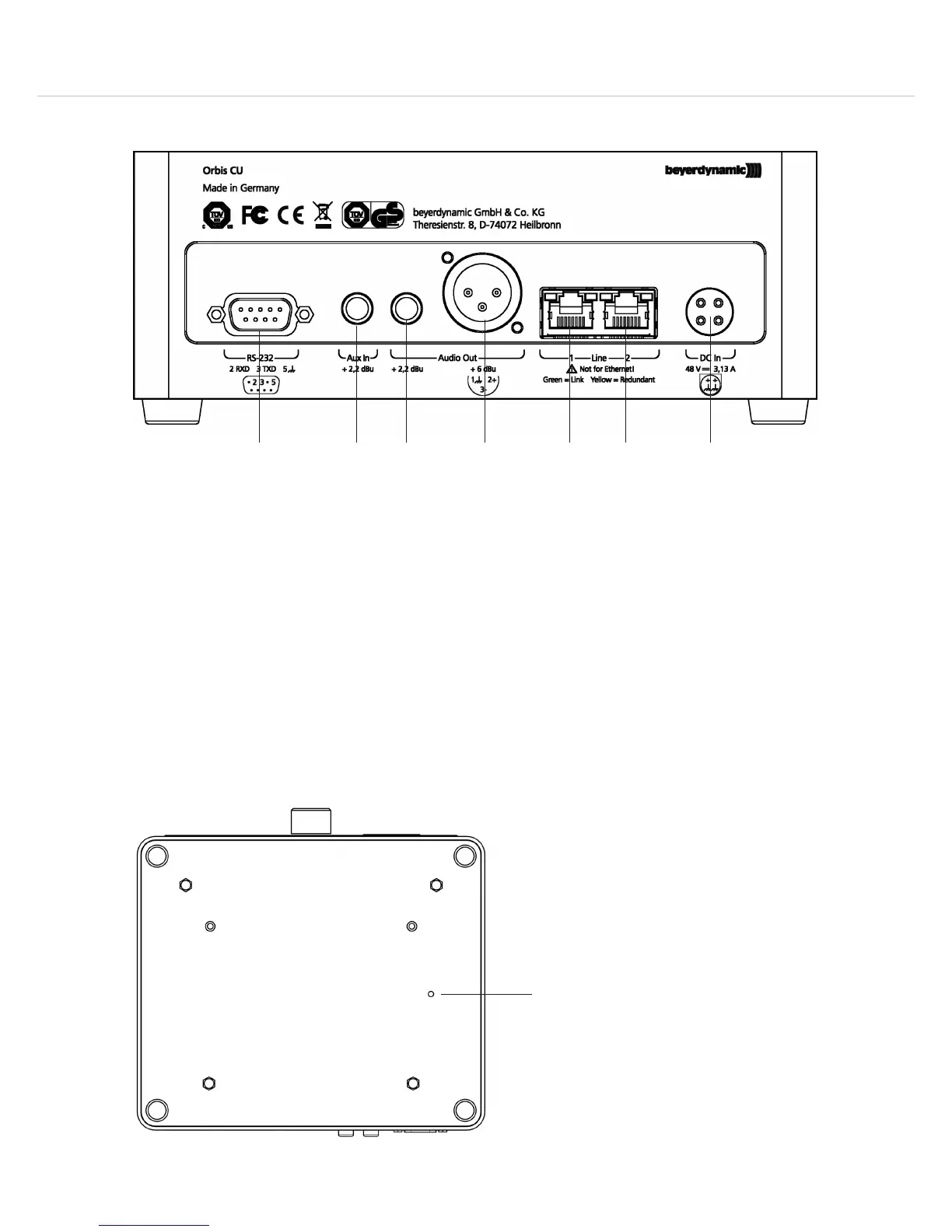

Rear View
Orbis – Control Unit
8

Bottom
