BFGoodrich PS-823 - Emergency Power Supply Models; Compatible Indicators and Manufacturers

BFGoodrich Avionics Systems,
Inc.
Component
Maintenance Manual
P/N 501-1075-()
Number
PS-823
Model
NI-CAD
AmpereHours(Ah)
Battery
Test
Application
Cells
A
and E
20 1.9
No
Drive
2-inch Al-804
or
3-
inch
Al-904
JET
indicators.
A/T and E/T
20
1.9
Yes
B and
F 40
3.8
No
Drive
2-inch Al-804
or
3-
inch
Al-904
JET
indicators.
B/T and
F/T
40
3.8 Yes
C and
G 20 1.9 No
Drive
3-inch3-
phase
JETor
SFENA
indicators
C/T
and G/T 20 1.9 Yes
D and
H
40 3.8 No
Drive
3-inch3-
phase JET or SFENA
indicators
D/T
and
H/T
40
3.8 Yes

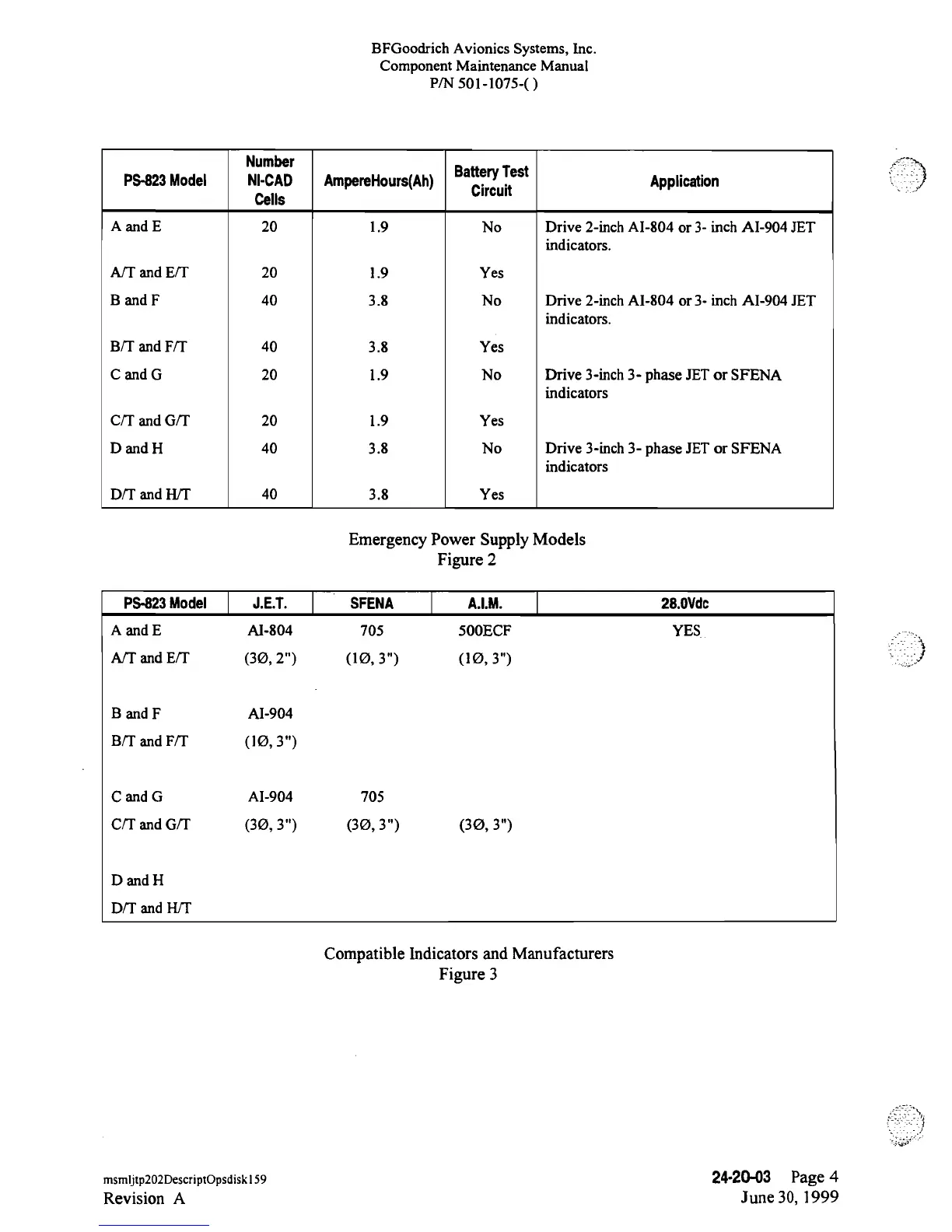

Emergency
Power Supply Models
Figure 2
PS-823
Model
J.E.T. SFENA
A.I.M. 28.0Vdc
A
and E
Al-804
705
500ECF
YES
A/T and E/T (30,
2")
(lØ,
3")
(10,
3")
B
and
F
Al-904
B/T
and
F/T
(10,
3")
C
and
G
Al-904
705
C/T and G/T
(30,
3")
(30,
3")
(30,
3")
D and H
D/T
and H/T
Compatible Indicators
and Manufacturers
Figure
3
msmijtp202DescriptOpsdiskl59
24-20-03
Page
4
Revision
A
June
30,
1999
