2.8 Unit finishing
2.8.1 Edge finishing
For cassette models (Type DF C) only:
1. Make a hole in the ceiling for the unit.

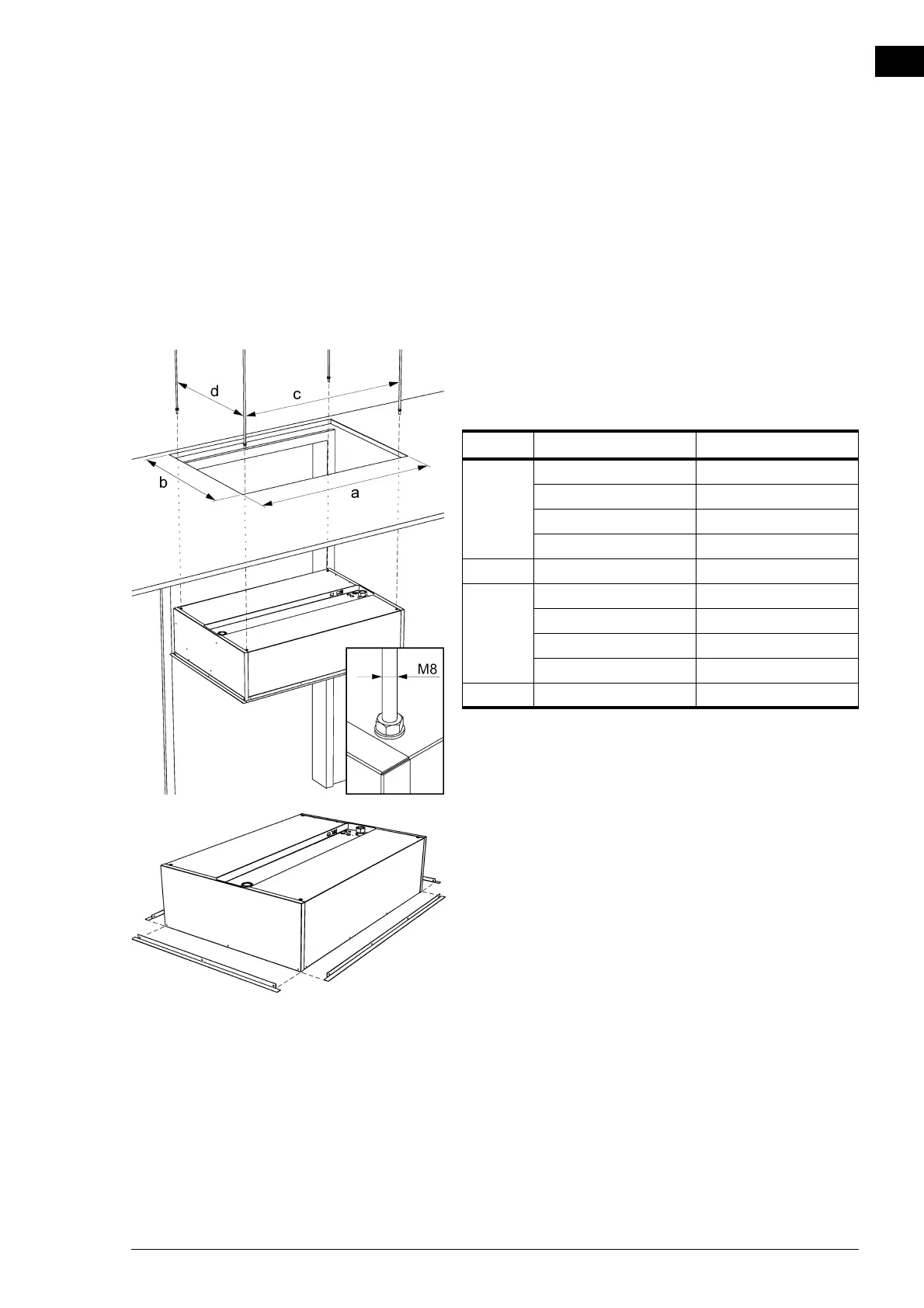

Dimensions of hole and suspension for cassette model
2. Attach the angle sections using the screws supplied along
the unit’s edges.
SIZE TYPE DIMENSIONS
a DF 100-C 1012 mm(39 27/32")
DF 150-C 1512 mm(59 17/32")
DF 200-C 2012 mm(79 7/32")
DF 250-C 2512 mm(98 29/32")
b all DF C 705 mm(27 3/4")
c DF 100-C 937 mm(36 7/8")
DF 150-C 1437 mm(56 9/16")
DF 200-C 1937 mm(76 1/4")
DF 250-C 2437 mm(95 15/16")
d all DF C 641 mm(25 1/4")
