BIFFI RPS Series User Manual

July 2020
Installation, Operation and Maintenance Manual
MAN 573 Rev. 8
A
±0.2
A
±0.2
B
B
±0.2
M
±0.2
K L
GH
FF
D
ØE
ØE
Front side
Top view
Back side
№4 threaded holes
№4 threaded holes (optional)

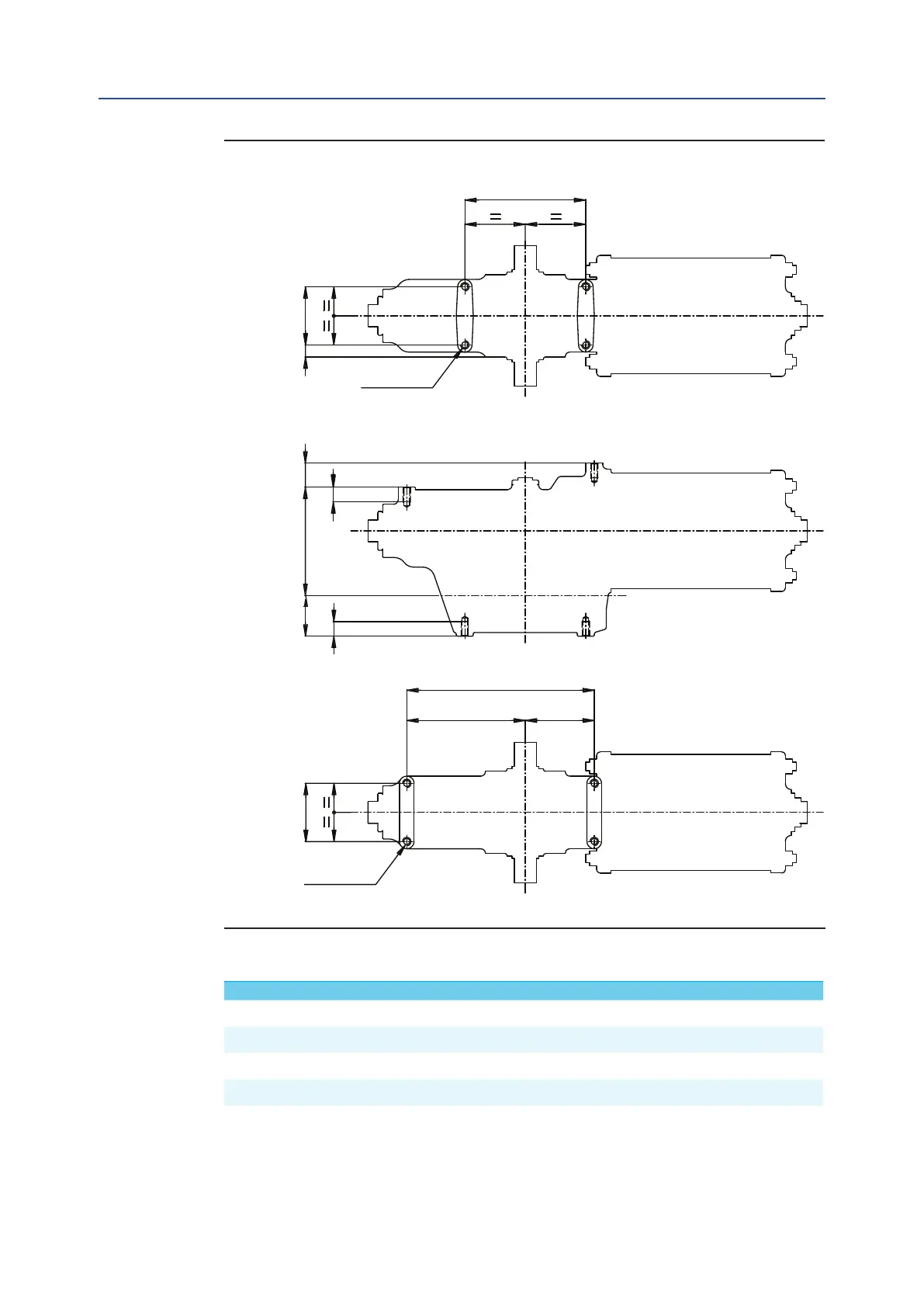

Figure 3
Model A B C D ØE F G H K L M
15 55 110 12.5 43 M8 14 17 98 114 67 181
30 70 125 15 56 M10 16 35 120 136 80 216
60 88 160 16 68 M12 19 35 150 160 105 265
120 124 190 18 82 M16 23 50 183 210 124 334
Table 2. Dimensions in mm
The expected lifetime of actuator is approximately 25 years.
General Warnings4
Section 1: General Warnings

BIFFI RPS Series Specifications

General

Brand	BIFFI
Model	RPS Series
Category	Controller
Language	English
