HAIKU by Big Ass Fans
5
Review the safety guidelines. If you are not completely comfortable or have questions about any
aspect of the installation process, consult a structural engineer or electrical contractor or contact
Haiku Technical Service for assistance.

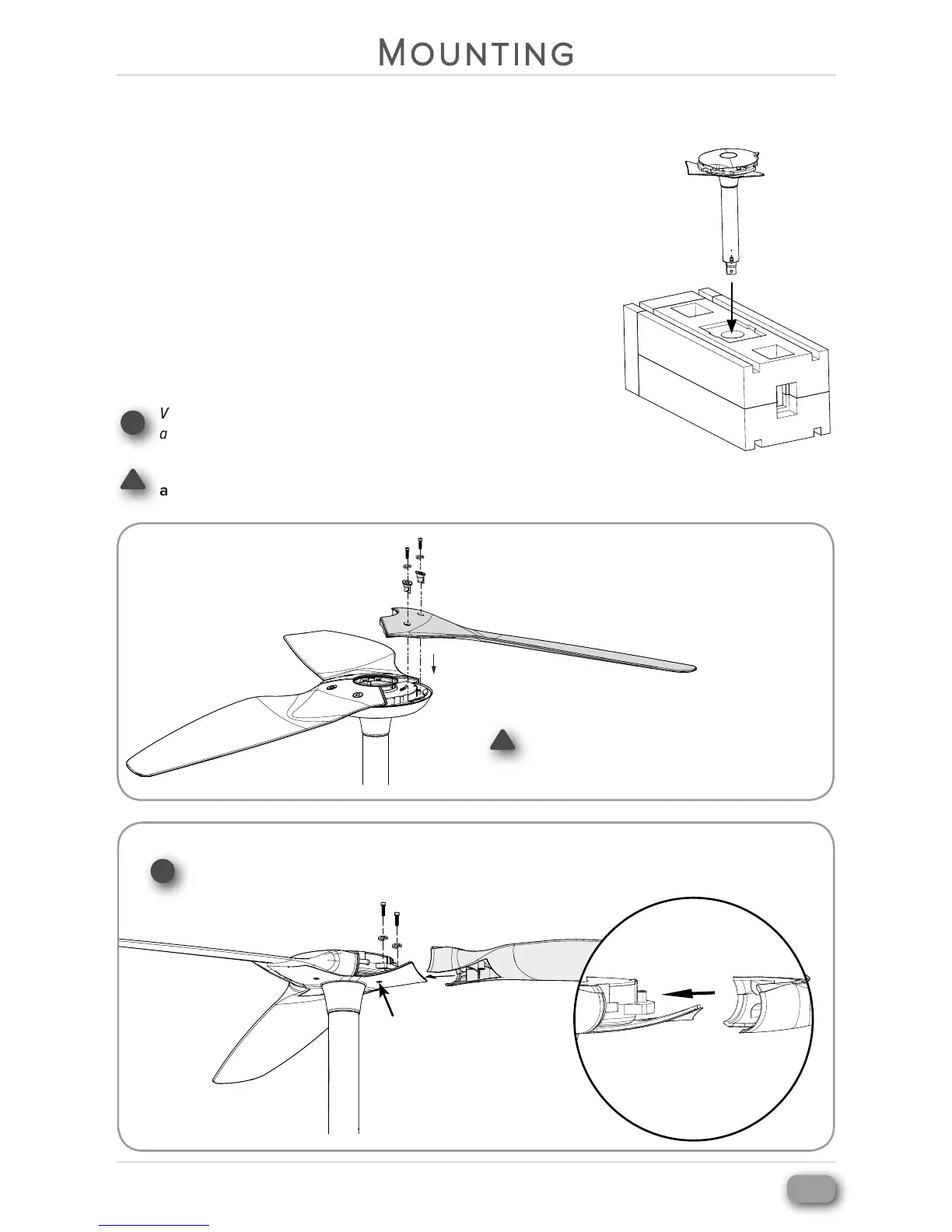

Step 1. Installing the airfoils
Position the fan upside-down on the provided foam work aid
located inside the packaging as shown on the right. Remove the
protective covering from the circuit board.
Moving clockwise around the fan, align each airfoil with a fan hub
tab and firmly press it into place. Make sure that the colored stickers
match the colors of the stickers on the attachment of the fan hub.
Loosely secure the airfoils with the provided (6) airfoil screws. Once
the airfoils are in position, fully tighten the screws to secure the
airfoils to the fan hub.
Visit www.haikufan.com to view installation videos illustrating the
airfoil installation process.
Be careful not to damage the circuit board while installing
airfoils!
Mounting
tip!
tip!
Haiku
To ease airfoil installation, the (3) motor top screws can be loosened. Do not forget to retighten them!
!
Haiku Bamboo
When installing the Bamboo airfoils,
the edge of each airfoil should tuck
under the airfoil next to it.
!
Motor
top screw
