REV B 6-2 119293
8. Pivot the cam by using a 3/8” rachet and extension. Pivot
the cam until the top of the deck is the same distance
from the ground as the right side. Figure 6-6
9. To allow for easier access when tightening the adjusting
hardware, lower the deck to its lowest position.
10. Tighten the cam hardware.
IMPORTANT: When tightening the cam hardware you
must tighten the inner nut while holding the bolt and
outer nut to keep the cam from rotating and changing the
adjustment. The inner nut must be tight to prevent cam
movement. Figure 6-7 & Figure 6-8
11. Go to the front of the deck and measure the center of the
deck from the ground to the top of the deck. This distance
should be 1/8” to 3/8” less than the rear corner
dimensions. If it is not then it will be necessary to adjust
the deck front to back. Figure 6-9
12. Level the front of the deck by turning the lock nut, at the
front of the mower, until the correct distance from the
ground to the top of the deck is attained. Figure 6-10

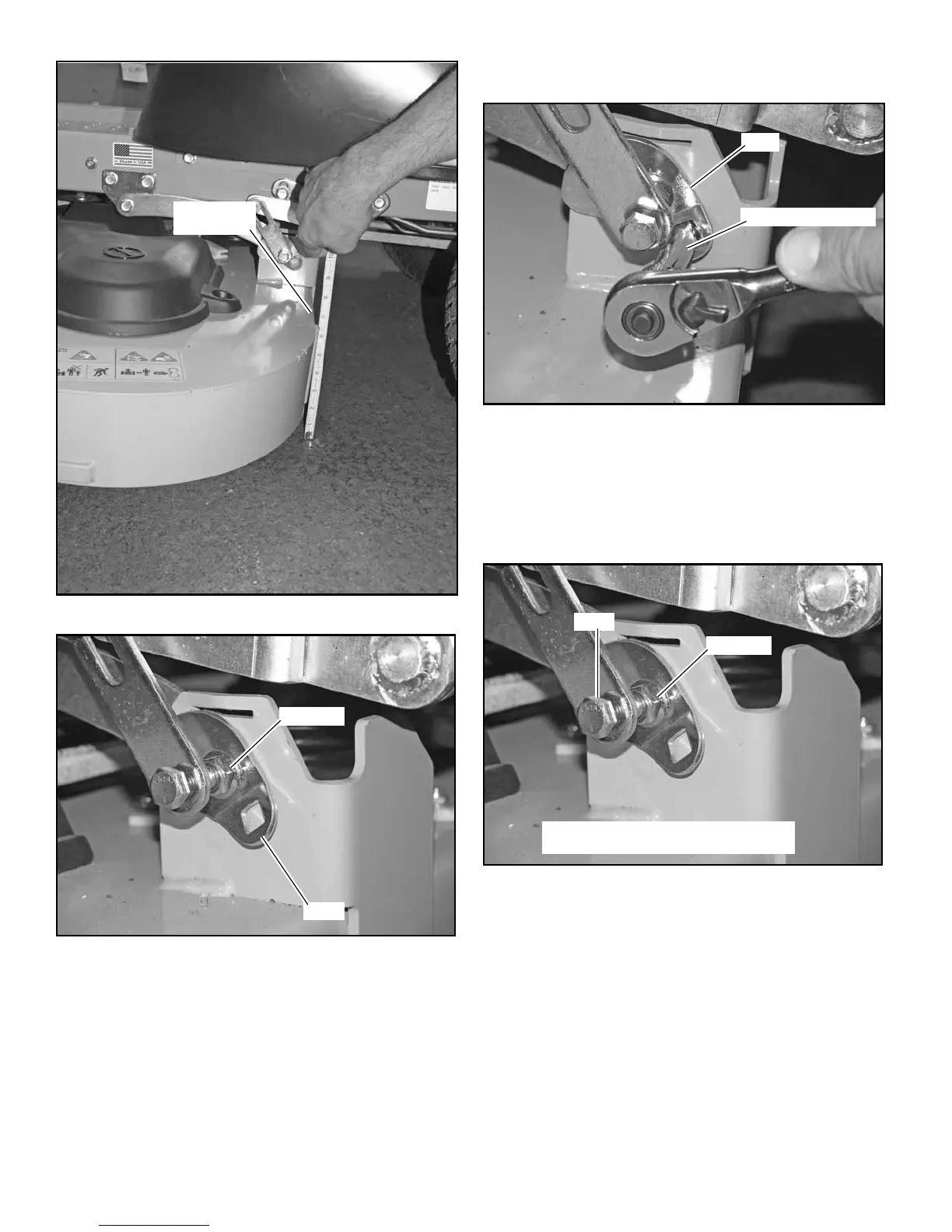

Figure 6-4
Figure 6-5
Measure to
top of deck
Hardware
Cam
Figure 6-6
Figure 6-7
Cam
3/8” drive extension
Outer nut
Bolt
Hold the bolt and outer nut so cam does
not move while tightening the inner nut.
To Next Page
