BigDog Alpha - Maintenance Locator Chart

REV B 8-2 119293

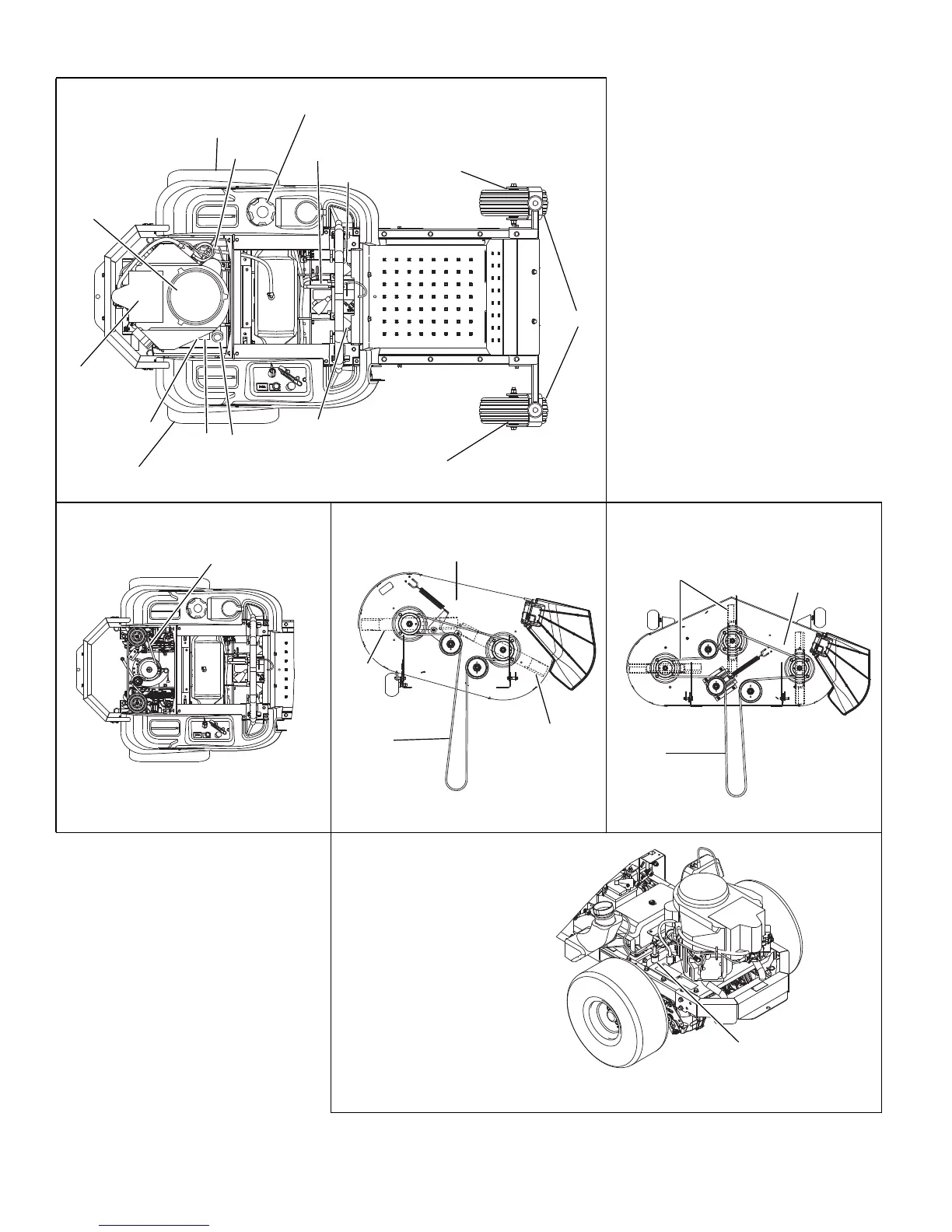

Maintenance Locator Chart
1. Engine Oil Fill & Dipstick
2. Fuel Filter
3. Engine Air Cleaner
4. Engine Oil Drain Valve
5. Battery
6. Fuel Tank
7. Engine Oil Filter
8. Park Brake Switch (2)
9. Drive Tire
10. Pump Belt
11. Engine Air Intake Screen
12. Front Wheel Tires
13. Front Wheel Zerks (2)
14. Deck Belt
15. Blades
16. Fuel Evaporation System Filter
Figure 8-2 Figure 8-3 Figure 8-4
Figure 8-5
Figure 8-1
6
5
8
13
11
3
12
13
8
9
4
1
7
2
9
10
15
14
15
36”/42” Deck
15
14
52” Deck
15
16
