BigDog Alpha - Page 27

119293 6-7 REV B

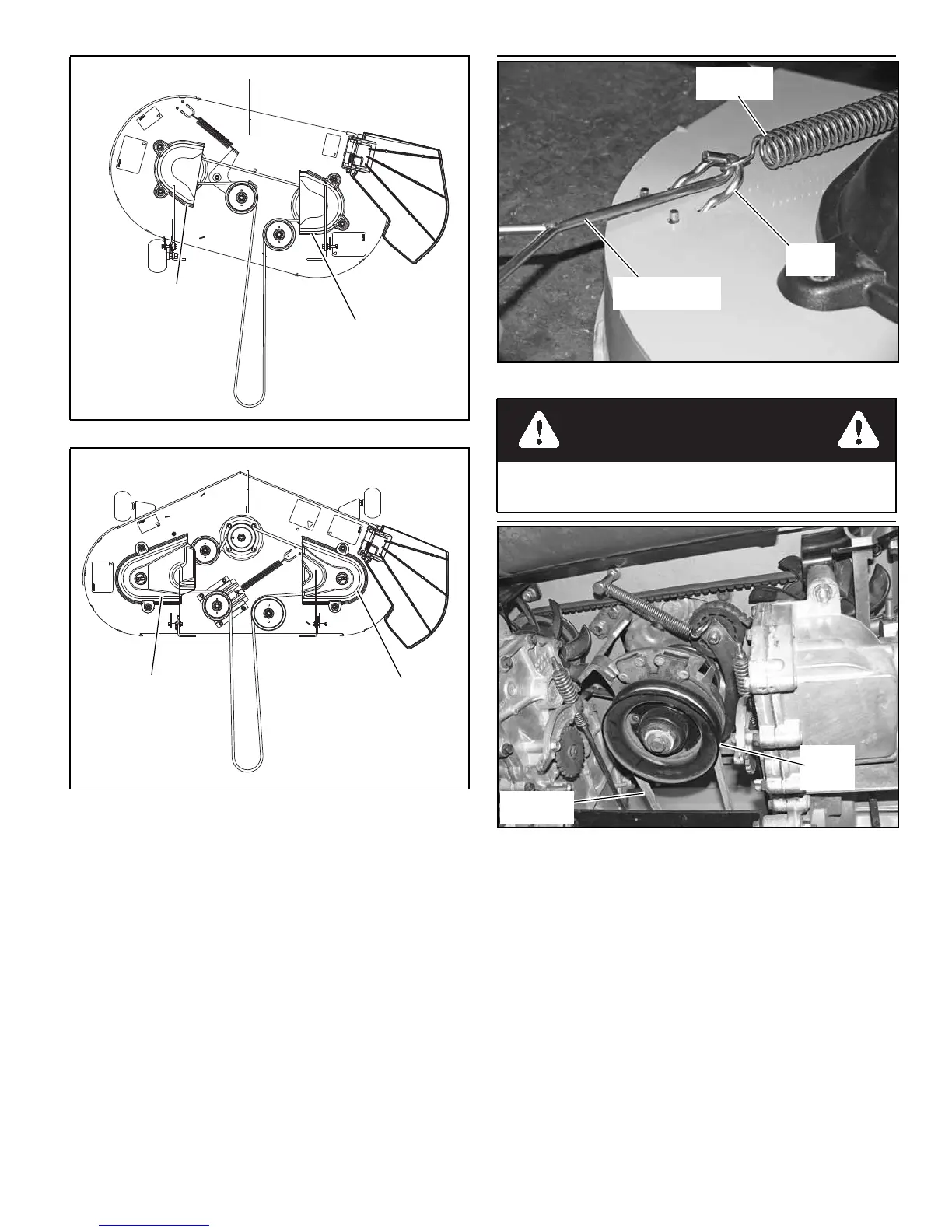

8. Using the tension spring hook (604462), re-tension the
deck drive belt by pulling on the deck belt idler spring
and hooking it in the spring mount on the deck.
9. Re-install the deck covers. Figure 6-18 & Figure 6-19
Figure 6-18
Figure 6-19
Deck
cover
Deck
cover
Deck
cover
Deck
cover
Figure 6-20
WARNING
Never operate the mower without the deck covers in
place.
Figure 6-21
Tension idler
spring
Tension spring
hook (604462)
Spring
mount
Electric
clutch
pulley
Deck drive
belt
