BIGTREETECH Eddy V1.0 User Manual
9
4. Installation Guide
4.1. Installation Height
Install Eddy 2 to 3 mm above the nozzle to ensure optimal performance. If you
encounter any errors during the calibration process, these may be related to
Eddy's installation height. For solutions, please refer to the troubleshooting
section of this manual.
Important:
Some people confuse the current calibration height of 20mm with the mounting
height of 2-3mm. The 20mm height is only used when calibrating the coil
current later in this guide.
4.2. Example using Voron 2.4
Installation replaces the original PL-08N position.

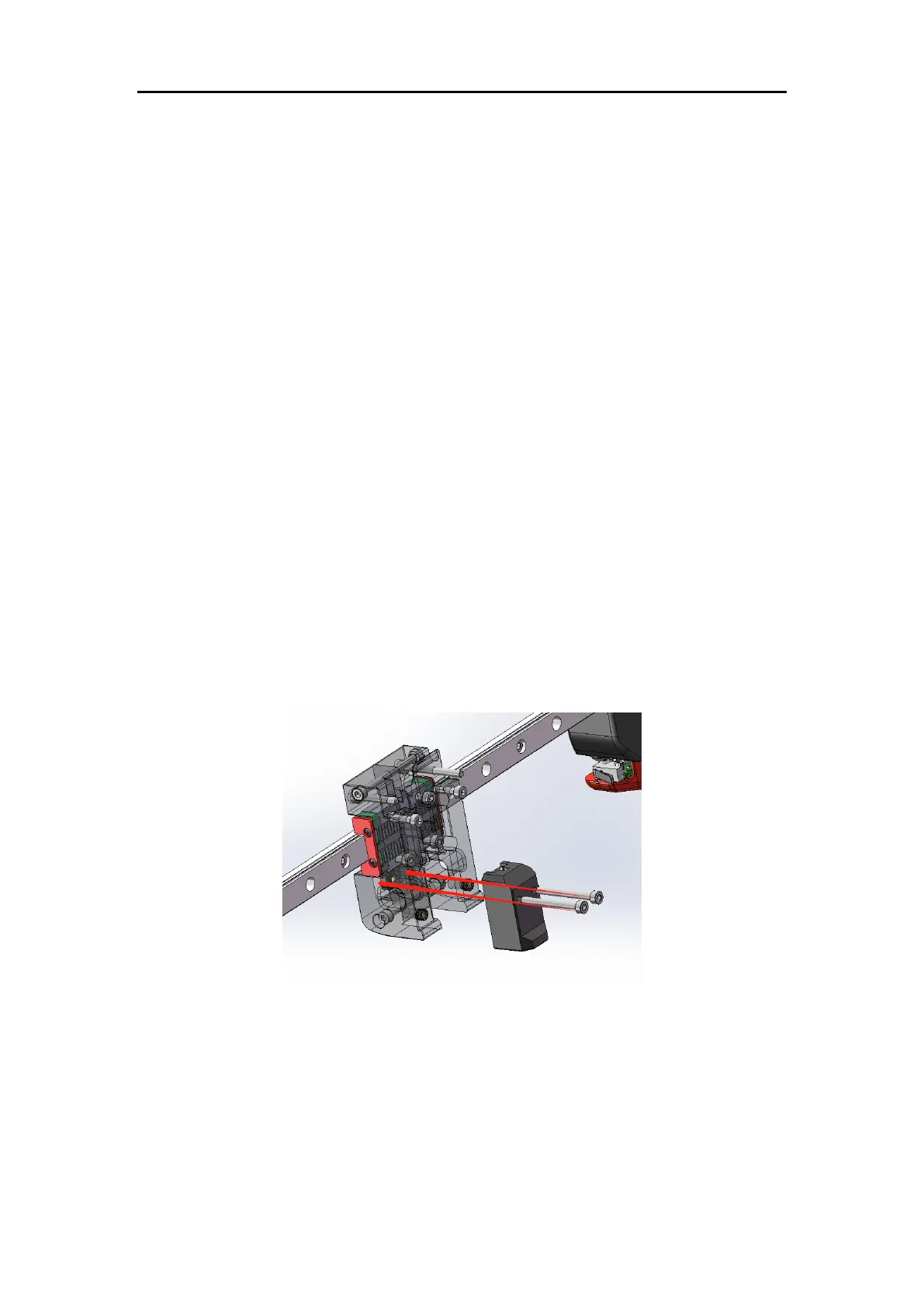

Use two M3x25 screws (included in the package) to secure the Eddy to the X
Carriage as shown in the diagram.
