BIGTREETECH SKR E3 DIP V1.0 User Manual

Name: BIGTREETECH SKR E3 DIP V1.0
Brand: BIGTREETECH
Rating: 5 (1 reviews)

10 pages

To Next Page

To Previous Page

Shenzhen BIGTREE technology co., LTD.

BIG TREE TECH

Stepper driver and peripherals configuration

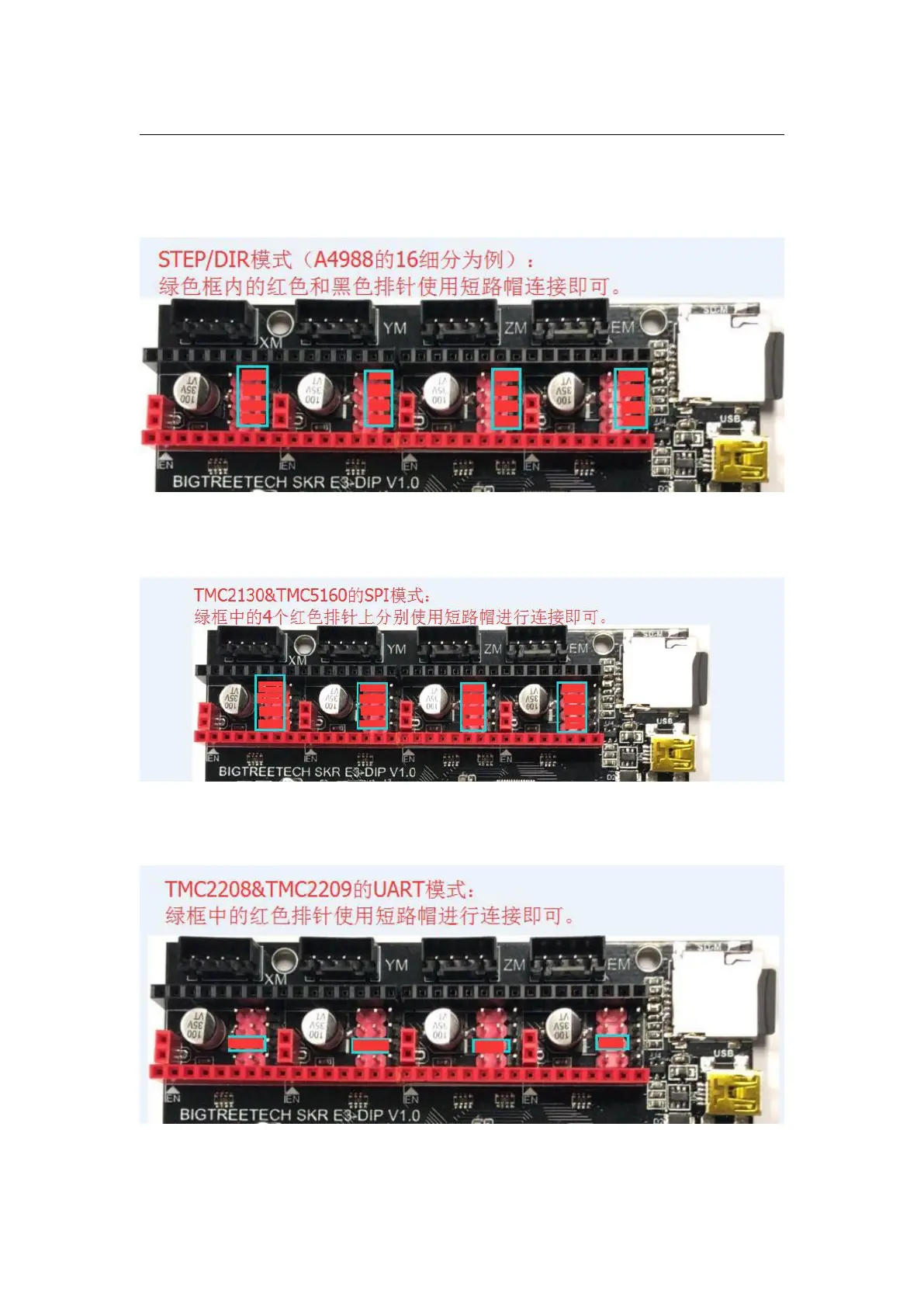

1) STEP/DIR mode

Set the jumpers according to your microstepping settings.

2) SPI Mode

Set the jumpers like in the picture above.

3) UART mode

Set the jumpers like in the picture above.
