13

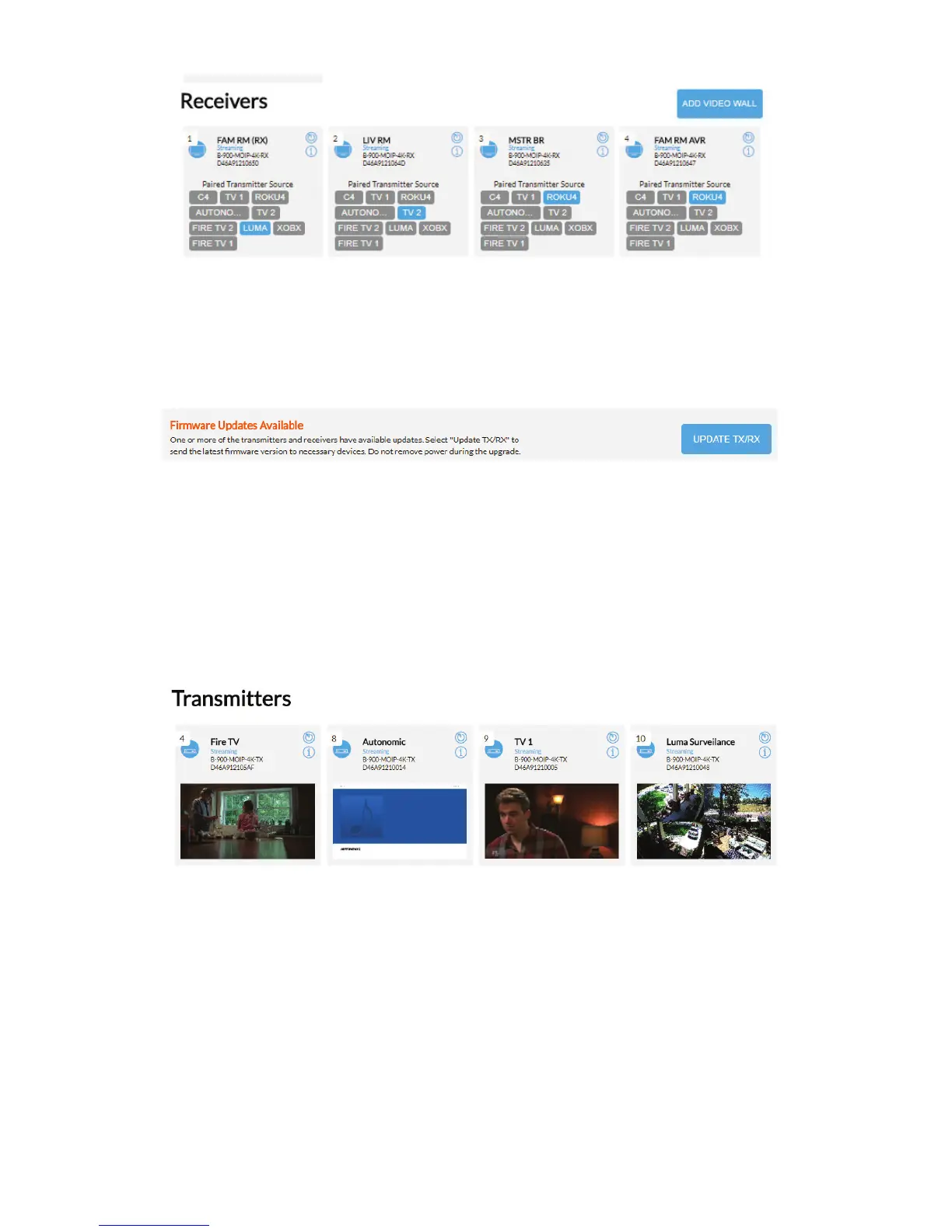

10. Update TX and RX Firmware (if necessary)
1. If a rmware update is required on any of the transmitters and receivers, a banner will
appear on the MoIP controller main page.
2. Click UPDATE TX/RX. This will apply the rmware update to any or all devices as required.
3. Each individual device will show Updating in red.
IMPORTANT: Do NOT remove any devices or reboot until all have completed update status.
11. Identify Receiver-Display and Transmitter-Source Pairs (Recommended)
1. Click the i under each device to name each transmitter. Use the screen capture from each
source to help identify each transmitter.
2. Record the Transmitter number, MAC address and connected source for use during control
system integration.
3. Activate Identify Mode via the MoIP controller UI. Each display connected to each receiver
will display the MAC address for the receiver connected to that display.
4. Name each receiver based on the MAC address.
