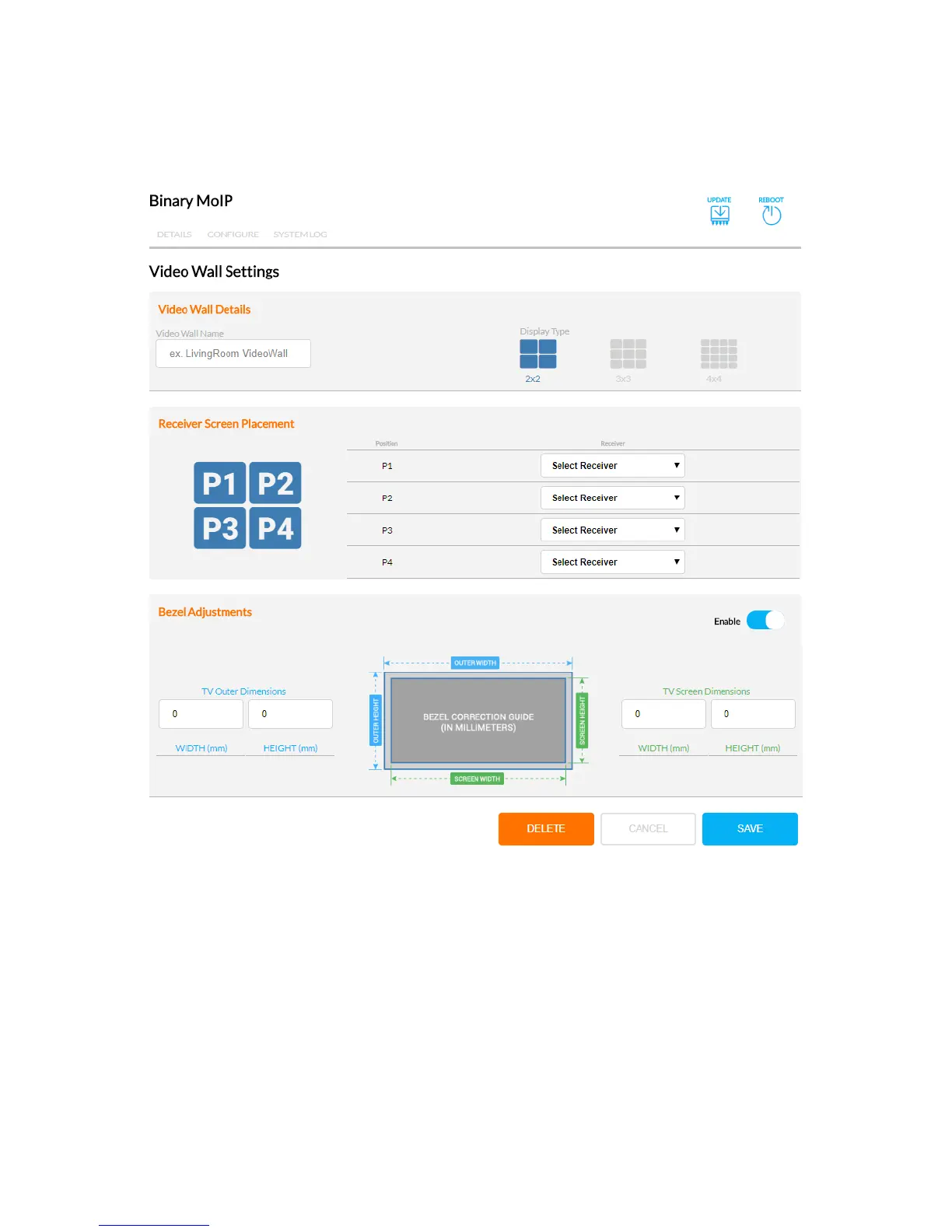

Create a Video Wall
A video wall can be created with receivers currently discovered by the MoIP Controller. After
creating the wall, it will be added to the Receiver list alongside the existing receivers. 4x4, 3x3
and 2x2 video walls can be created out of 16, 9 and 4 receivers. Each receiver can only be a
member of a single video wall group.
To create a video wall:
1. Name the video wall (required)
2. Select the video wall size (2x2, 3x3, 4x4) by clicking the matching size
3. Based on your installation, assign a given receiver to each position “PX” of the video wall.
4. Measure the display screen dimensions as indicated to adjust out the video that falls behind
each TV bezel
5. Click Enable to adjust the bezel
6. Enter the dimensions
7. Click Save
The updated video wall receivers are now available and will integrate with a control system
as another output like all other receivers. Additional control system steps may be required to
properly switch control for a video wall.
