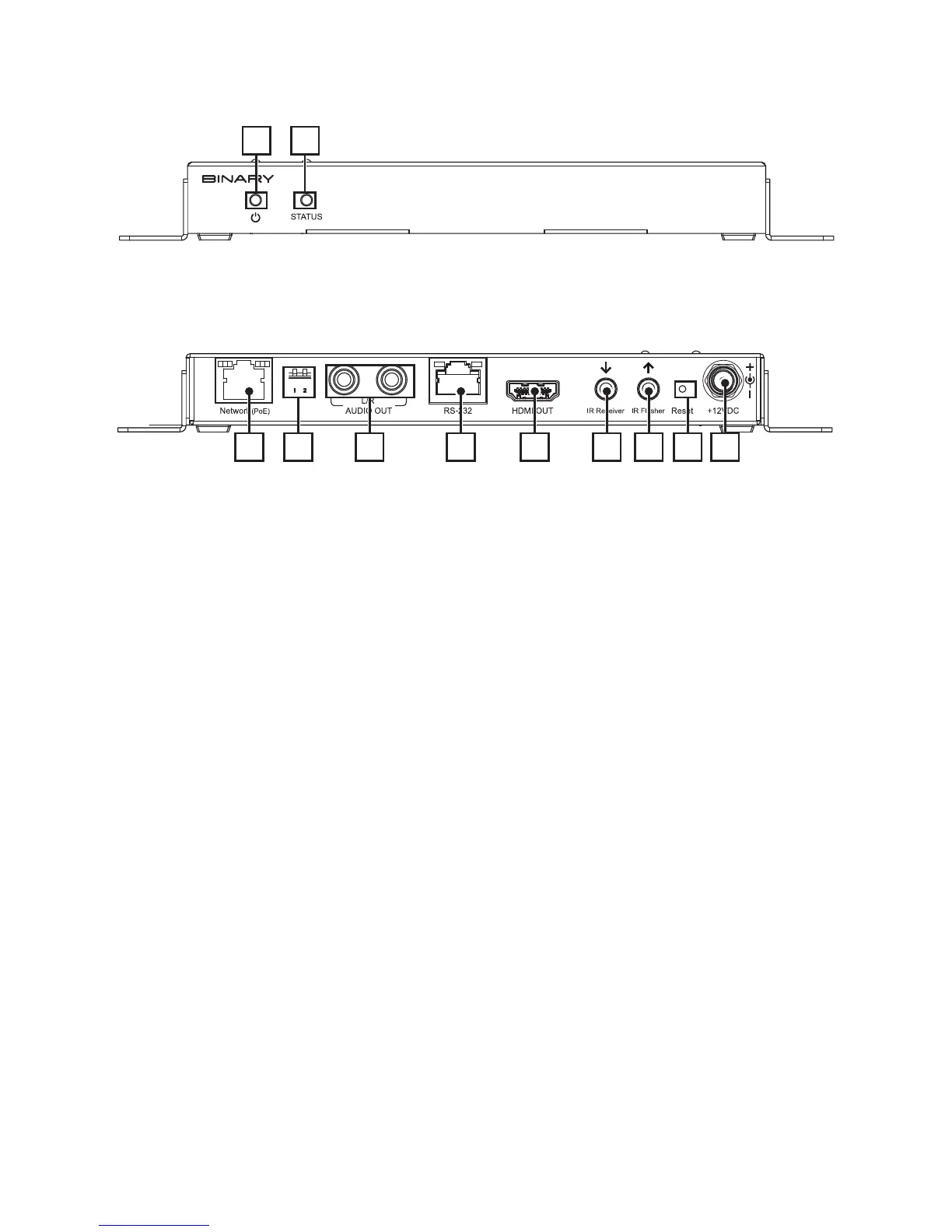

MoIP Receiver B-900-MOIP-4K-RX
A. Power Indicator
On: Power on | Blink: Booting | Off: Power off
B. System Status Light
On: Connected to network and not subscribed to transmitter stream | Off: Not
connected to network | Blinking: Connected to network and subscribed to transmitter
stream
C. Network Port
Provides access to network and power via Power-over-Ethernet (POE)
D. DIP Switches
Switch 1: IR receiver On/Off | Switch 2: DTE/DCE
E. 3.5 mm Input
Analog Audio embedding to replace HDMI audio
F. L/R Audio Out
RCA Analog audio de-embedding of 2-channel PCM audio
G. RS-232
RJ45, RS-232, (TX, RX, Ground), EIA-561 pin out
H. HDMI OUT
HDMI source input and HDMI loop output for local display
I. IR Receiver
3.5 mm mini Mono/Stereo for external receivers
J. IR Flasher
3.5 mm mini Mono/Stereo output to IR emitter/asher
K. Factory Reset
Press and hold for 10 seconds to restore to factory settings
L. 12 V 2A Power Connection
12VDC 2A locking connection for external power supply (not included)
