Binary B-900-MOIP-4K-CTRL User Manual

4
GETTING STARTED
To get started, you will need:
• 1× per source: MoIP Transmitter B-900-MOIP-4K-TX
• 1× per display: MoIP Receiver B-900-MOIP-4K-RX
• 1× MoIP Controller B-900-MOIP-4K-CTRL
• 1× Layer 2 Managed switch
• Sources, Displays, HDMI cables and category cabling
MoIP Controller B-900-MOIP-4K-CTRL
B-900-MOIP-4K-CTRL
CONTROLLER
Reboot
Factory Default
Network
+5VDC

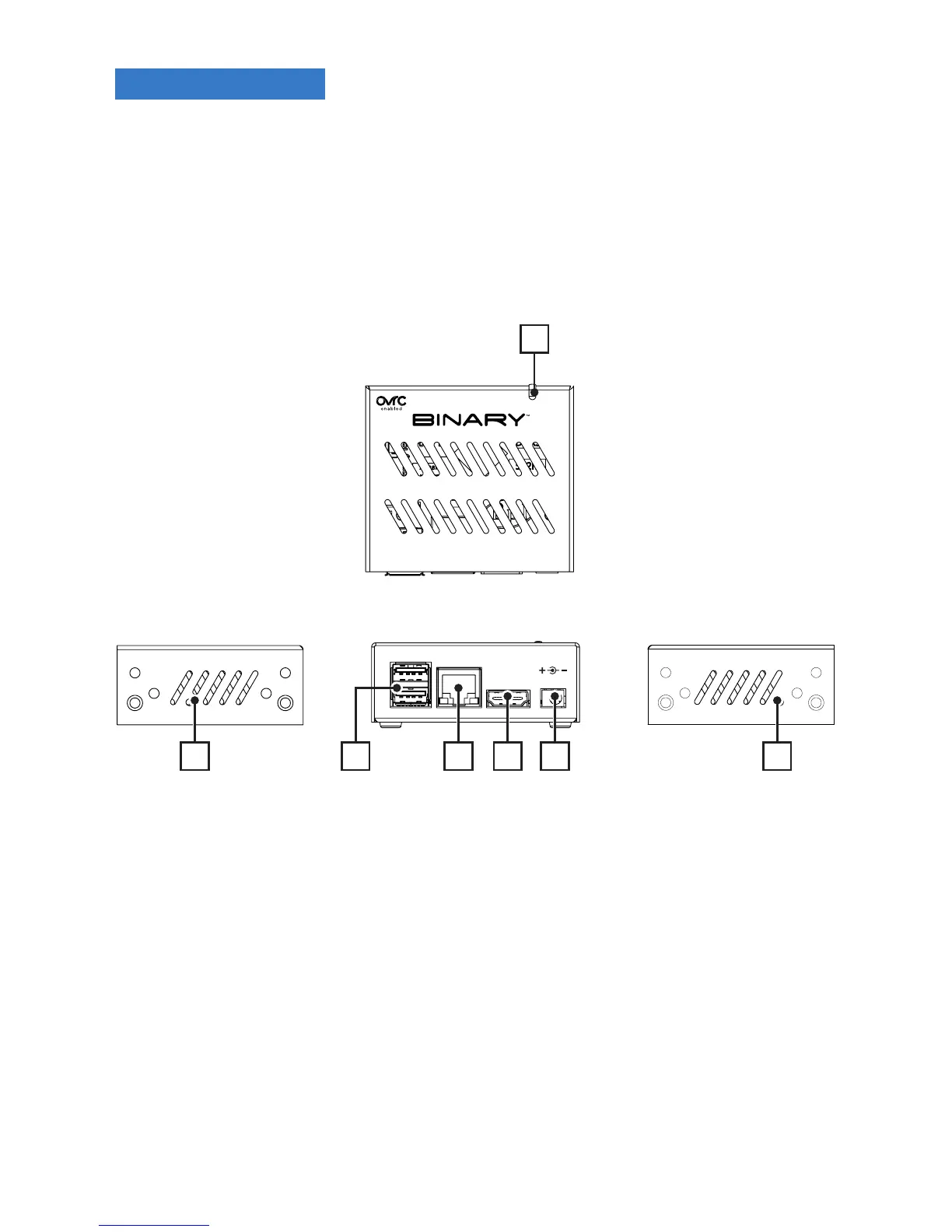

A. Status LED
Solid during system boot | Blinks during normal operation
B. Reboot Button
Use a pin to press the recessed button to restart
C. USB Ports
Not used for the MoIP system
D. Network/LAN Port
Connect to MoIP switch to provide access to MoIP transmitters and receivers
E. HDMI Port
Not used for the MoIP system
F. 12 VDC Power Connection
Connect the power supply provided
G. Factory Default button
Use a pin to press recessed button restore factory settings
A
B GC D E F

Binary B-900-MOIP-4K-CTRL Specifications

General

Brand	Binary
Model	B-900-MOIP-4K-CTRL
Category	Transmitter
Language	English
