NETWORKING
Binary’s 900 series Media over IP system is compatible with network switches from multiple
switch manufacturers that meet a set of minimum requirements. The quality, reliability and
actual performance may vary. SnapAV recommends the Araknis line of 210 PoE series and 310
PoE series switches.
All switches compatible with MoIP must be at least a 1 Gigabit Layer 2 Managed switch (Layer
3 is compatible but not required) and have the following features or specications:
• IGMP Snooping
• Multi-cast forwarding or ltering
• IGMP Querier
• IGMP Fast Leave / Instant Leave / Immediate Leave
• Jumbo Frames / Jumbo Packets / Maximum Transmission Unit (8000 bytes or larger)
• 7.5 Watts PoE power per port for each transmitter and receiver (no external power supplies
are provided with each transmitter or receiver)

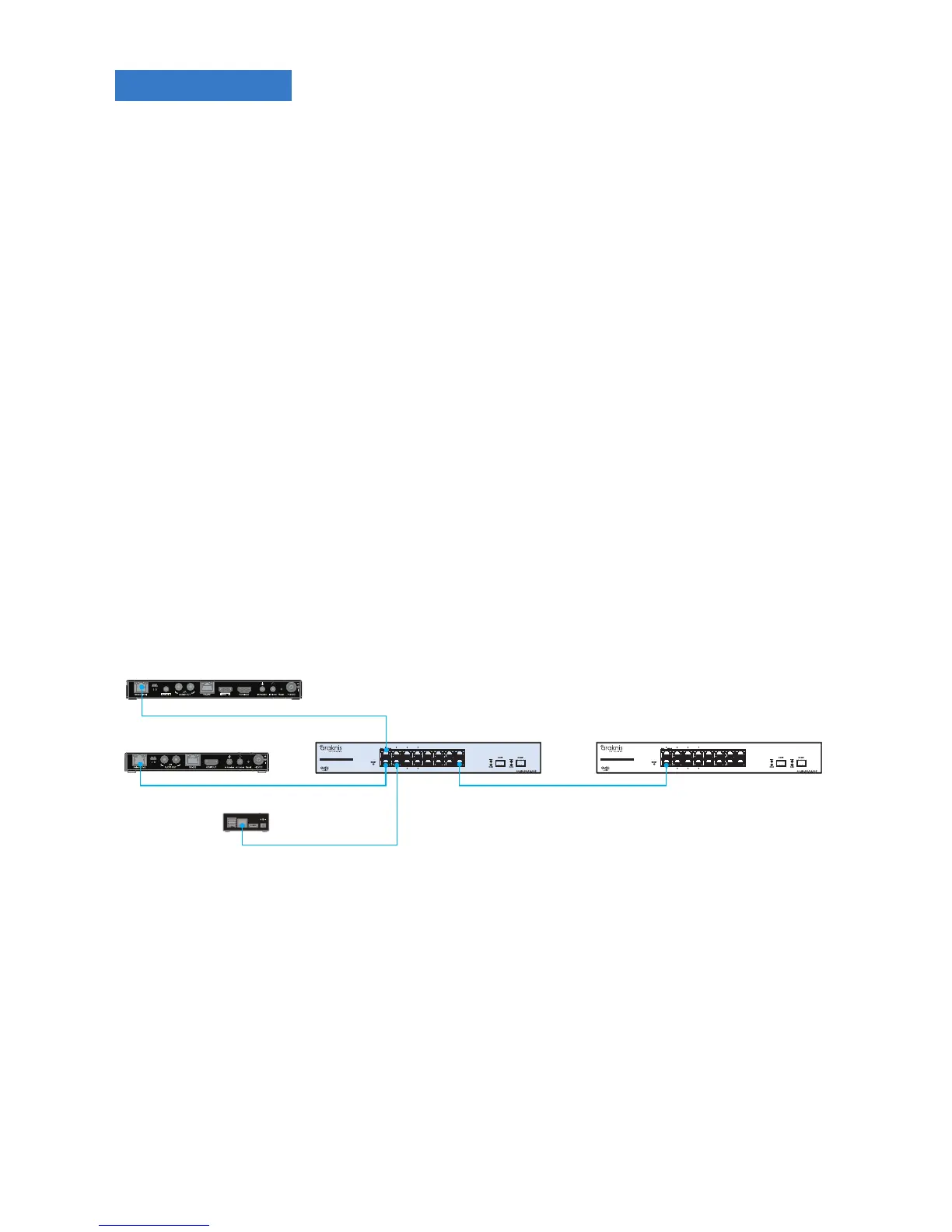

Recommended Network Topology
Binary’s 900 series MoIP system can be deployed across multiple network topology to support
most applications. We recommend a single dedicated network MoIP switch for the fastest,
simplest install. Please refer to our ‘Networking Guide’ document for other options.
Network
+5VDC
9 11 13 15
10 12 14 16
9 11 13 15
10 12 14 16
MoIP Transmitter (one per source)
MoIP Receiver (one per display)
MoIP Controller (one per system)
Dedicated MoIP Switch Main LAN Switch
Other Network Devices
To Next Page
