14

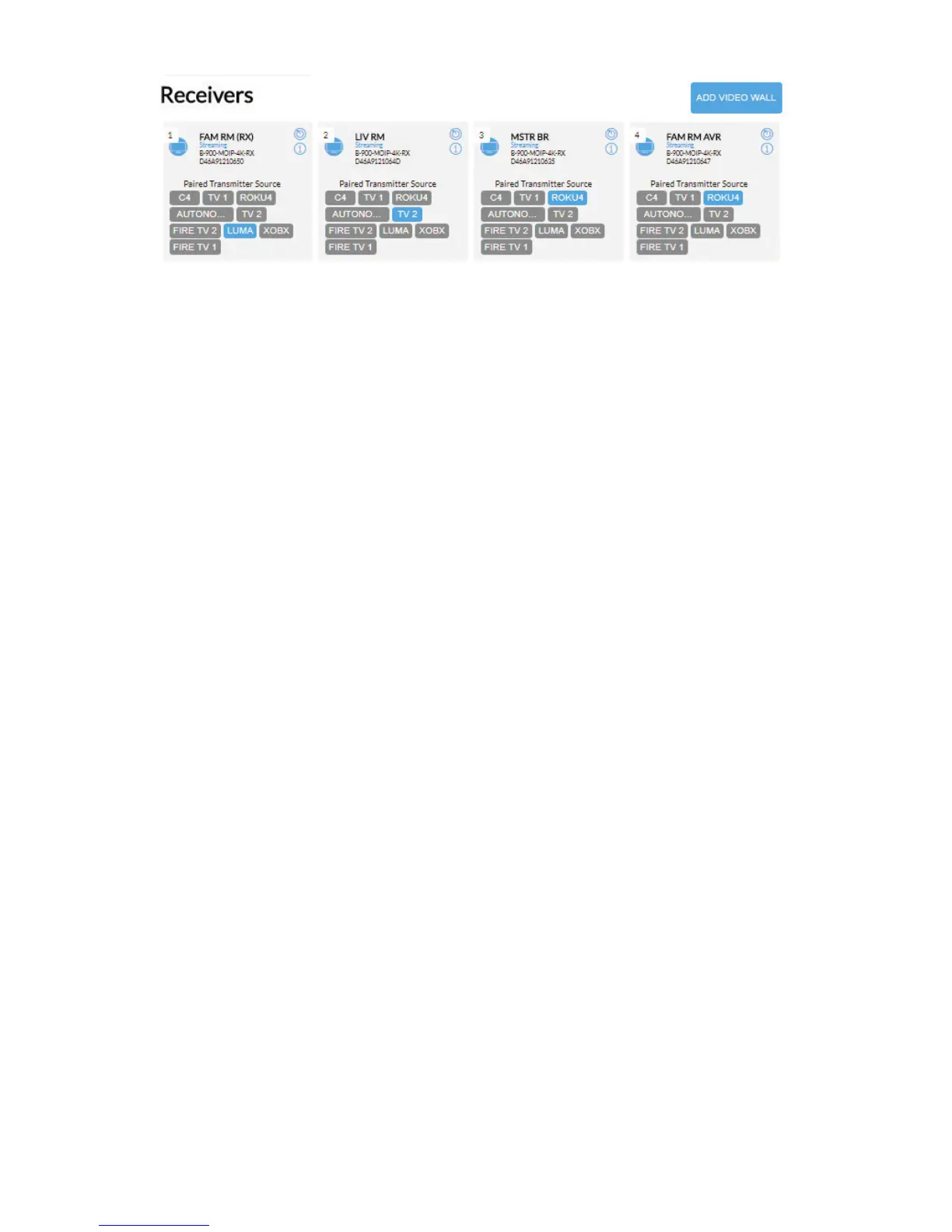

5. Record the Receiver number, MAC address, and connected display type/location for use
during control system integration.
Note: In Test mode, 4K content does not show on a 1080p TV or via 1.4 HDCP connection.
Downscaling can be congured to x this by clicking i next to each receiver.
12. Congure the MoIP Transmitters
1. The audio EDID between the MoIP Transmitter and the source can be xed to 2 Channel
Stereo or 5.1 Multichannel. By default, the device is shipped with this set to Pass-through.
Pass-through allows all multi-channel high audio resolution formats including DTS-X, Dolby
ATMOS, DTS HD Master Audio, and Dolby True HD.
2. If a device connected to a MoIP Receiver has limited audio capabilities, please congure the
MoIP Transmitters to limit the audio EDID presented to the source to the most common
format (5.1 or 2ch)
a. If the MoIP Transmitter Audio EDID to 2 Channel Stereo, all MoIP Receivers will hear
the 2 channel stereo audio from the HDMI source.
b. All TVs in the system can process 5.1 Dolby Digital and DTS 5.1 but only the home
theater AVR can process Dolby ATMOS, then congure the MoIP Transmitter Audio
EDID to 5.1 Multichannel mode.
c. If one or more MoIP Transmitters are dedicated to the home theater, then those MoIP
Transmitter Audio EDID settings should be congured for Pass-through.
Note:
• MoIP does not down mix audio from multichannel to stereo. An audio down mixer is
necessary for this purpose.
• Disabling power saving settings on connected sources helps maintain accessibility to the
video stream.
