Binks HP 4/32 - 2 Brief Description

4

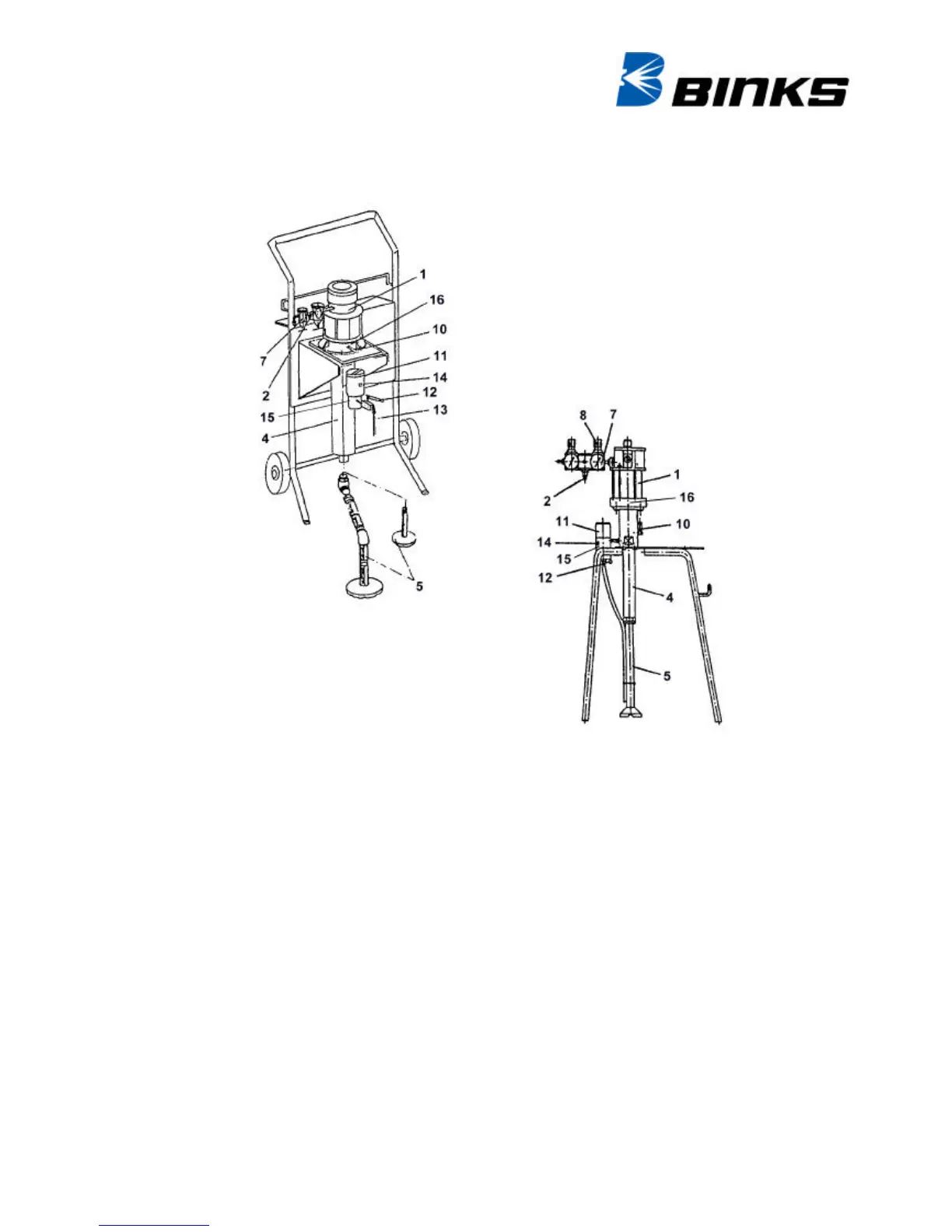

2. BRIEF DESCRIPTION (FIGURE 1)
1 Pneumatic drive 11
High pressure filter
2 Compressed air supply connection piece 12
High pressure filter relief valve
4 Spray material pump 13
Return pipe
5 Suction system 14
Grounding terminal
7 Compressed air control valve 15
Spray material outlet connection piece
8 Pressure reducer 16
Grounding terminal (if used without HP-filter)
10
Release agent chamber
