3. TECHNICAL DATA
BINKS HP 4/32
Theoretical
transmission
32 : 1
Air motor Air intake pressure 8 bar
Diameter cylinder 85 mm
Material pump Volume double stroke 27 ccm
Operating pressure max. 256 bar
Piston stroke 75 mm
Free flow capacity nominal 1,6 ltr./min.
Piston diameter D1 15 mm
Piston diameter D2 21,5 mm
Connections Air inlet Stem for quick disconnection
or R 3/8" (m)
Air to gun (Aircombi only) 90° connection for hose 8x6
or 1/4" NPS (m)
Fluid outlet on HP-filter
1/4" NPS (m)
Dimensions of
bare pump
L x W x D in mm 580 x 165 x 120

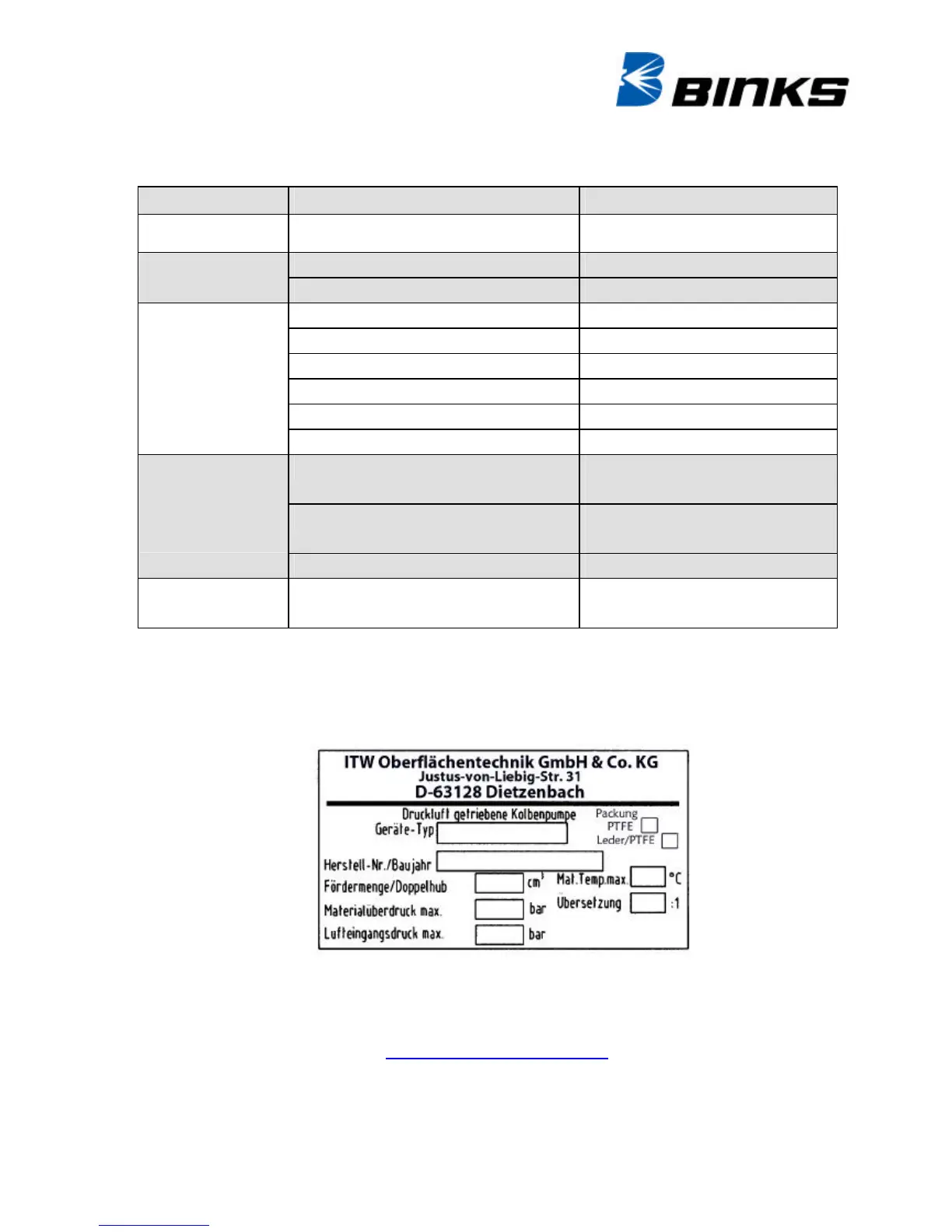

The nameplate on your outfit is attached to the spray material pump. Enter the data from the name-
plate into figure 3. Have this information ready when you call customer service.
