The extracted spray material is filtered through the high pressure filter (standard filter on HP 4/32:
type 03 - order-no. 0110-009130), before being driven out through the spray material line and the
airless gun. We recommend the following filter cartridges for the various types of spray material:
Filter size Nozzle Spray material
M 200 less than 0.3 mm colourless lacquer
M 150 greater than 0.3 mm surfacer, filler, red lead
M 100 greater than 0.3 mm surfacer, filler, red lead
M 70 greater than 0.5 mm micaceous iron ore, red lead
M 50 greater than 0.6 mm emulsion, loaded spray material
Do not use a filter cartridge for fibre-loaded spray material!
HD filter cartridges (overview)
Filter-type
Order-no.
01
0114-013525
01
0114-013525
02
0110-009057
03
0110-009130
11
0114-011760
13
0114-013585
Filter-type
Order-no.
05
0114-013526
05
0114-013526
Screen area 29 cm
2
27 cm
2
49 cm
2
84 cm
2
118 cm
2
118 cm
2
Core material polyamide brass stainless steel stainless steel polyamide no filter core

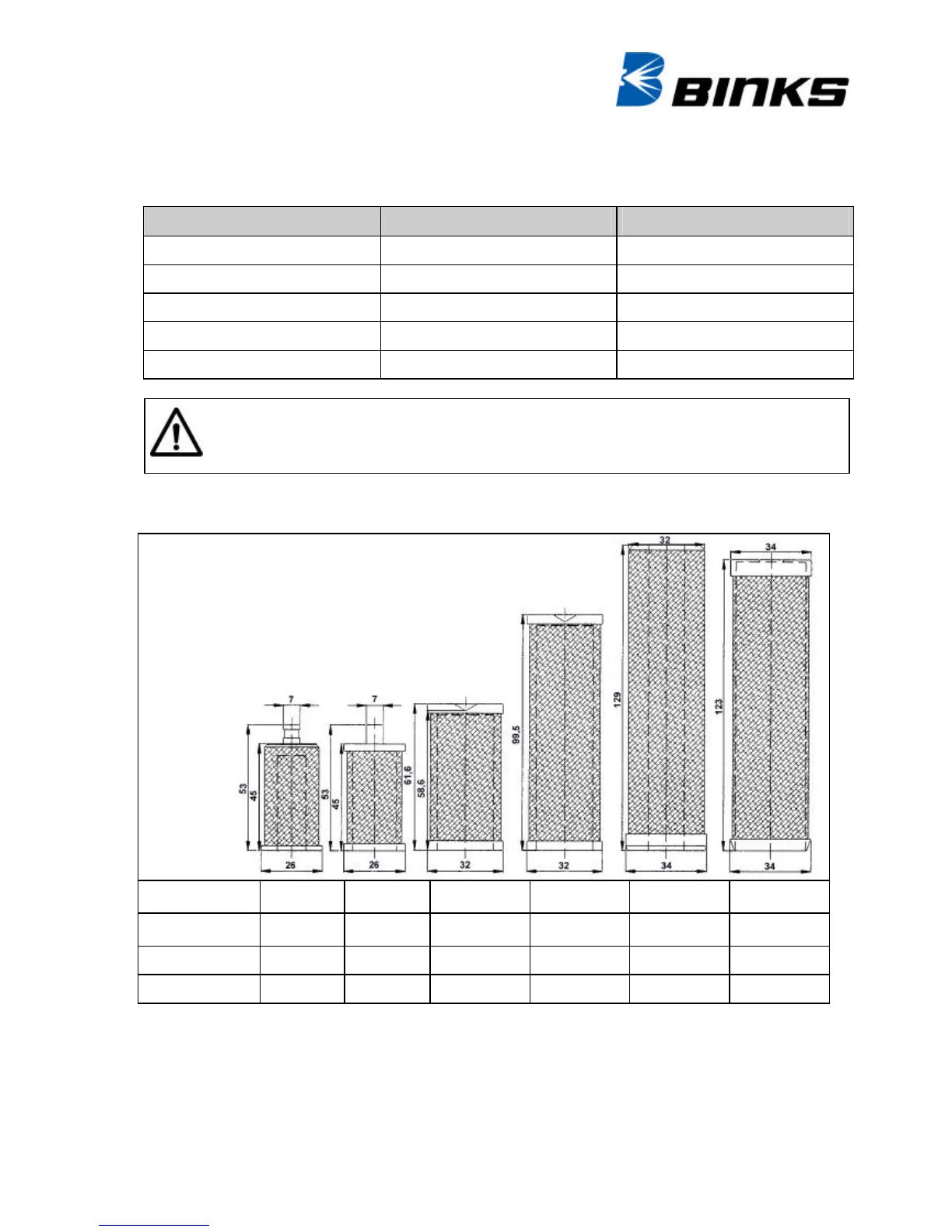

Figure 2
