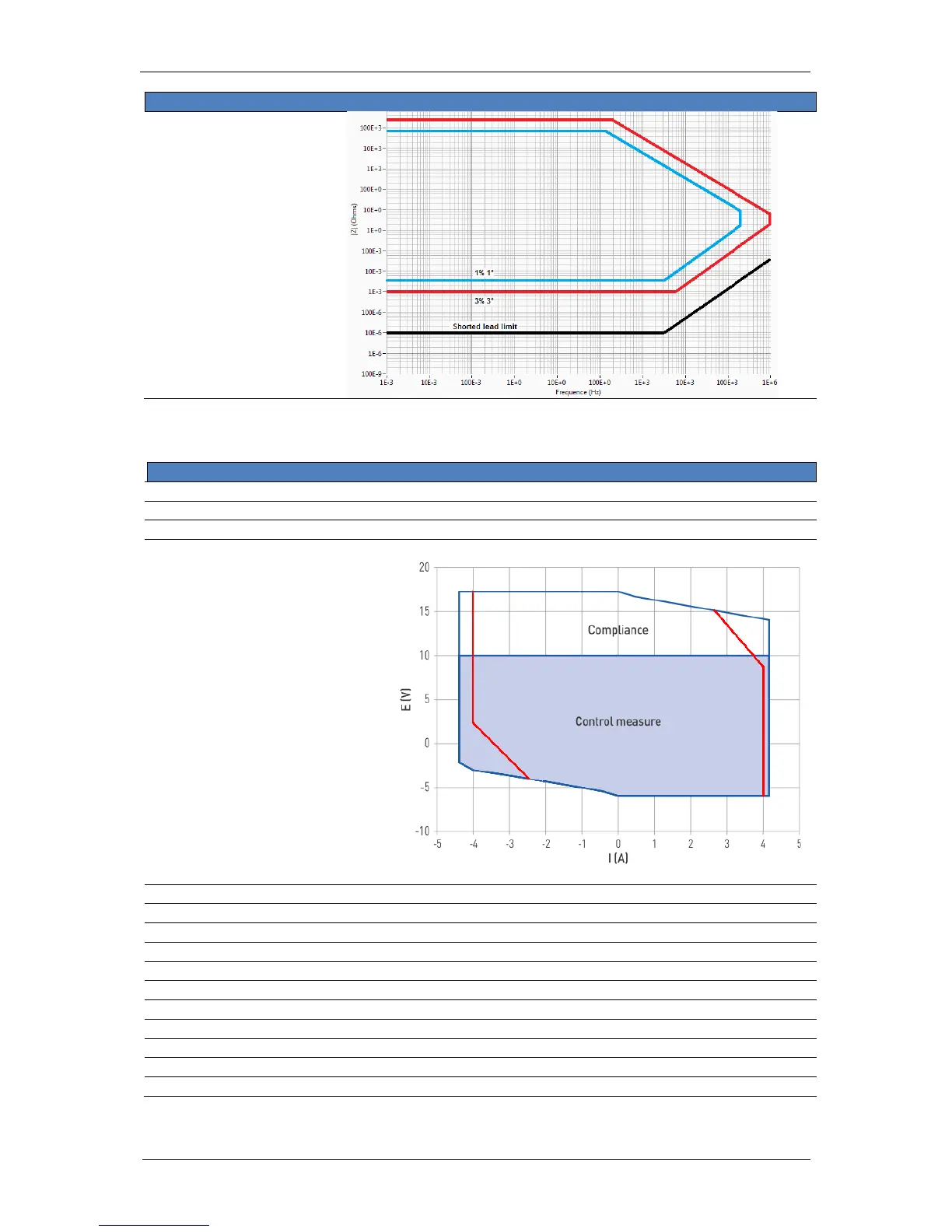

Impedance specifications (if booster board connected to board with EIS option)
Accuracy
10.2.5 4A/14V booster
Control amplifier
Compliance voltage
- 3 V ; +14 V
Compliance current
± 4 A
Control voltage
- 3 V ; +10 V
Operating area
For VSP-300 chassis there
is derating for the slot #5
and #6 (red curve). For all
the other case, consider the
blue curve.
Bandwidth (-3 dB)
>4 MHz
Slew Rate (no load)
50 V/µs
Rise/Fall time (no load)
<200 nA
Floating mode
yes
Parallel ability
yes
Current accuracy
0.1% range
Slew rate (no load)
>50 V/µs
Rise/Fall time (no load)
<200 ns
Floating mode
yes
Parallel ability
Yes
Current accuracy
0.1% range
