Manual for VMP300-based instruments
Test Box 3 is a tool for teaching and practice on linear
and non-linear electrochemical systems. This testing
box is made of three electrical circuits simulating real
electrochemical systems. Along with application
notes #8 and #9 Test Box 3 can be used to highlight
some commonly overlooked points about
electrochemical impedance spectroscopy.
Additionally, with Test Box 3 some general
electrochemistry protocols like Cyclic Voltammetry
and, corrosion techniques such as Linear Polarization
or Generalized Corrosion can also be practiced.

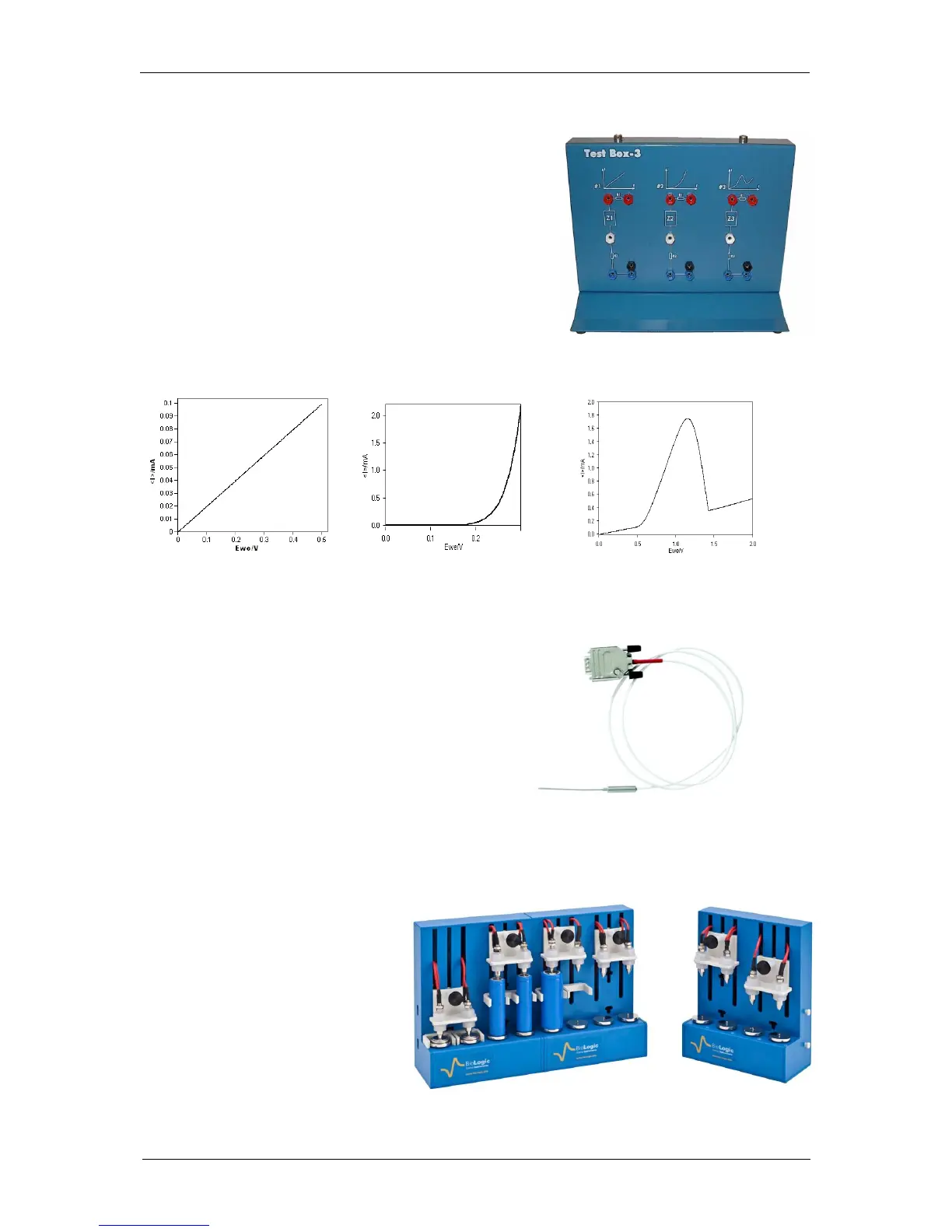

Fig. 103: stationary curve obtained with Test Box-3.
7.6 Temperature probe
To allow the user to measure temperature,
temperature probe (PN: 092-22/13) can be
connected to the auxiliary input/output of the
potentiostat board. The temperature probe is
fully controlled in EC-Lab
®
software.
Fig. 104: Temperature probe.
7.7 Battery holders
7.7.1 Battery Holder: BH-1
This accessory is designed to make
battery testing easier. The holder is
modular and compatible with a wide
variety of battery types (coin cells,
18650 and 26650 cells). The BH-1
can accommodate up to 4 batteries
in pairs of two. Perfect contact of
the BH-1 connectors with the
battery poles is ensured with
spring-loaded connection points.
Each of the batteries is secured in
place by isolating separators
Fig. 105: Battery holder, BH-1.
