Manual for VMP300-based instruments
56
For convenience we have designed a 50 cm
cable that connects to the DB9 connector of a
channel on one end with 8 BNCs on the other
end.
The available signals are: E monitor, I monitor,
Trigger In, Trigger Out, Analog In1, Analog In2
and Analog Out.
Another cable is also available, it is the IS-1
option. This cable is described in detail in the
paragraph 8.

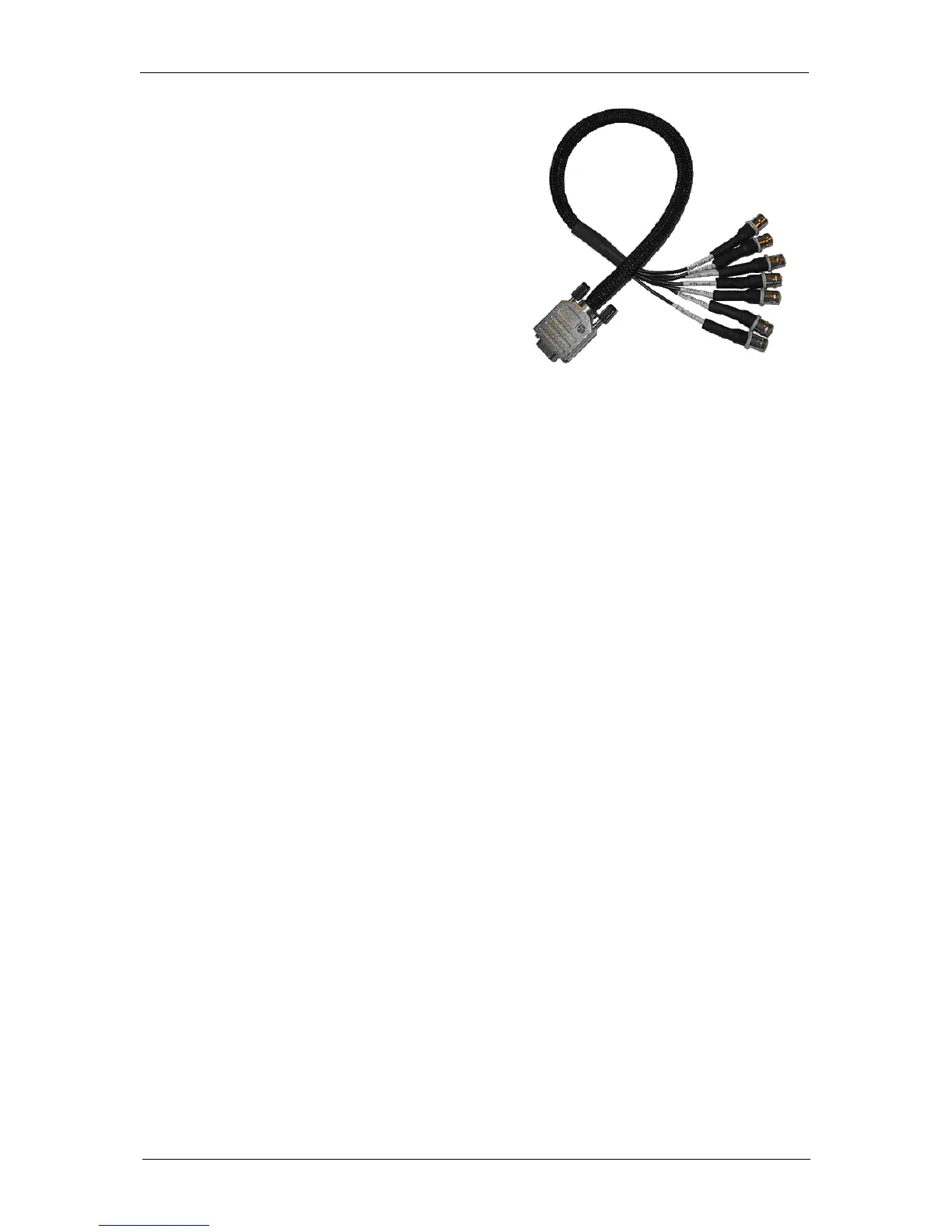

Fig. 80: DB9-8BNC cable.
