14 Biodex Medical Systems, Inc. © 2017

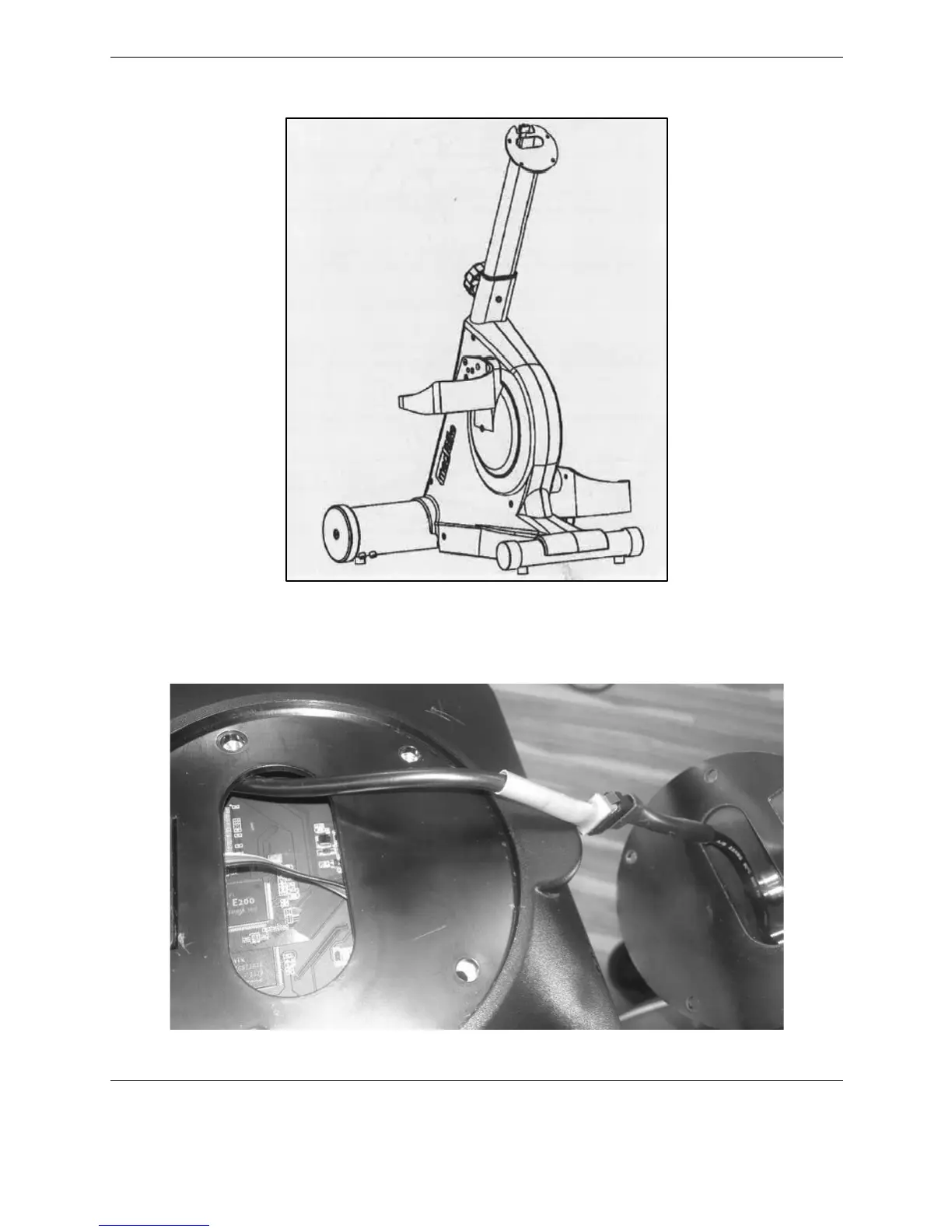

Figure 2.4. Handlebars stem tube--secured in pedal/motor assembly.
Once the bottom of the handlebars stem tube has be secured, the display can be affixed to the
top. But first, the cable must be connected as illustrated below:
Figure 2.5. Connect the display cable.
