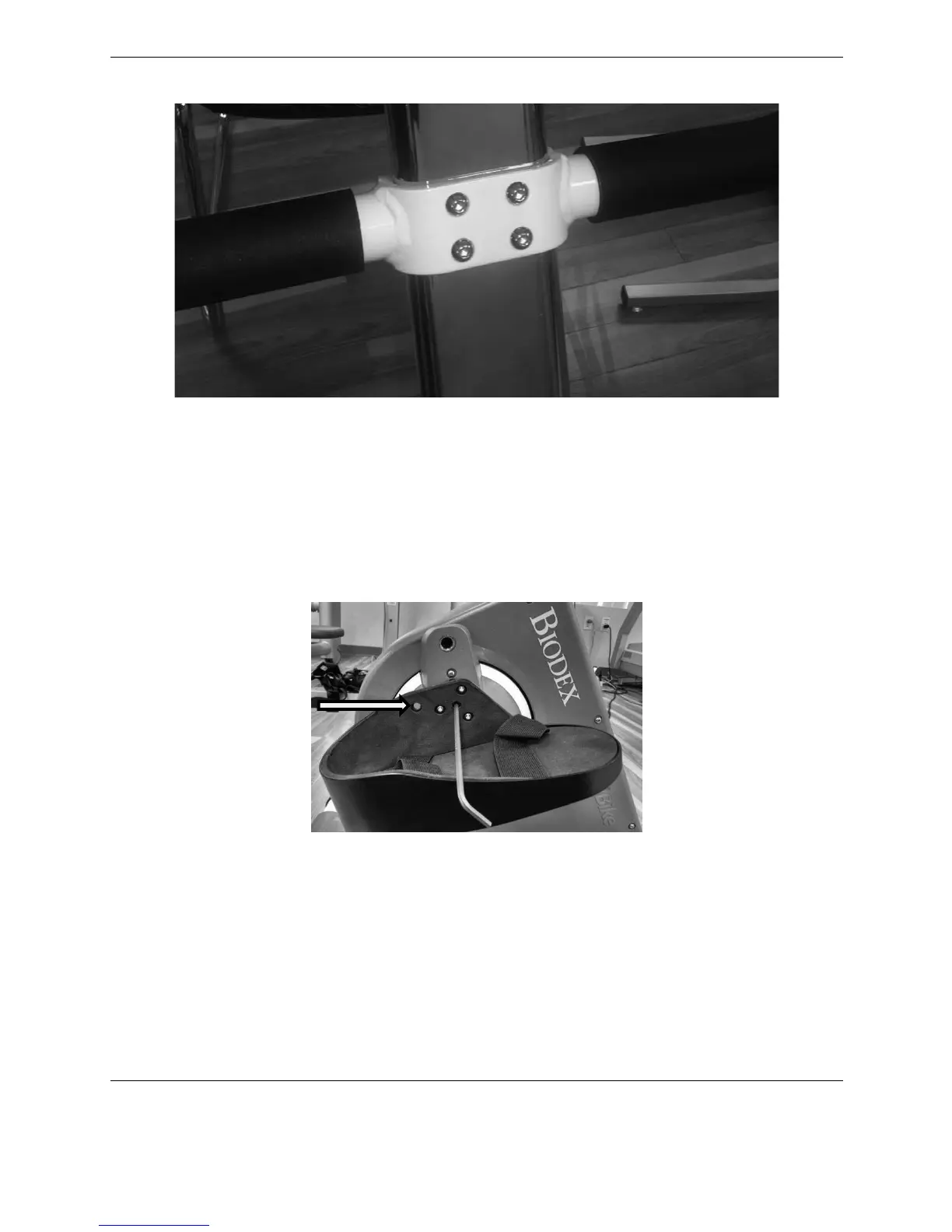

Figure 2.8 Bolts (4) for handlebars.
Adjusting Pedals on the MedBike
Managing the degree of hip flexion for certain patients using this device could be a concern.
First, consider moving their seat back a few inches. If the seat back reclines, consider that
option as well. As for the device itself, the pedal radius is easily changed. Using the Allen
wrench, remove pedal bolt and move it into a closer hole on the crank as illustrated in
Figure 2.9 below thus reducing the radius of the pedal cranks:
Figure 2.9. Adjusting the Pedals using an Allen Wrench
Or, using the slim wrench included with the medBike, move the pedal to another optional
hole on the crank by inserting the wrench between the pedals and the crank as illustrated in
the diagrams below and unscrewing the pedal:
