(See Figures 3.8 and 3.9.)
This routine ensures the platform is level. The platform is level when all four markers on the
display are green.

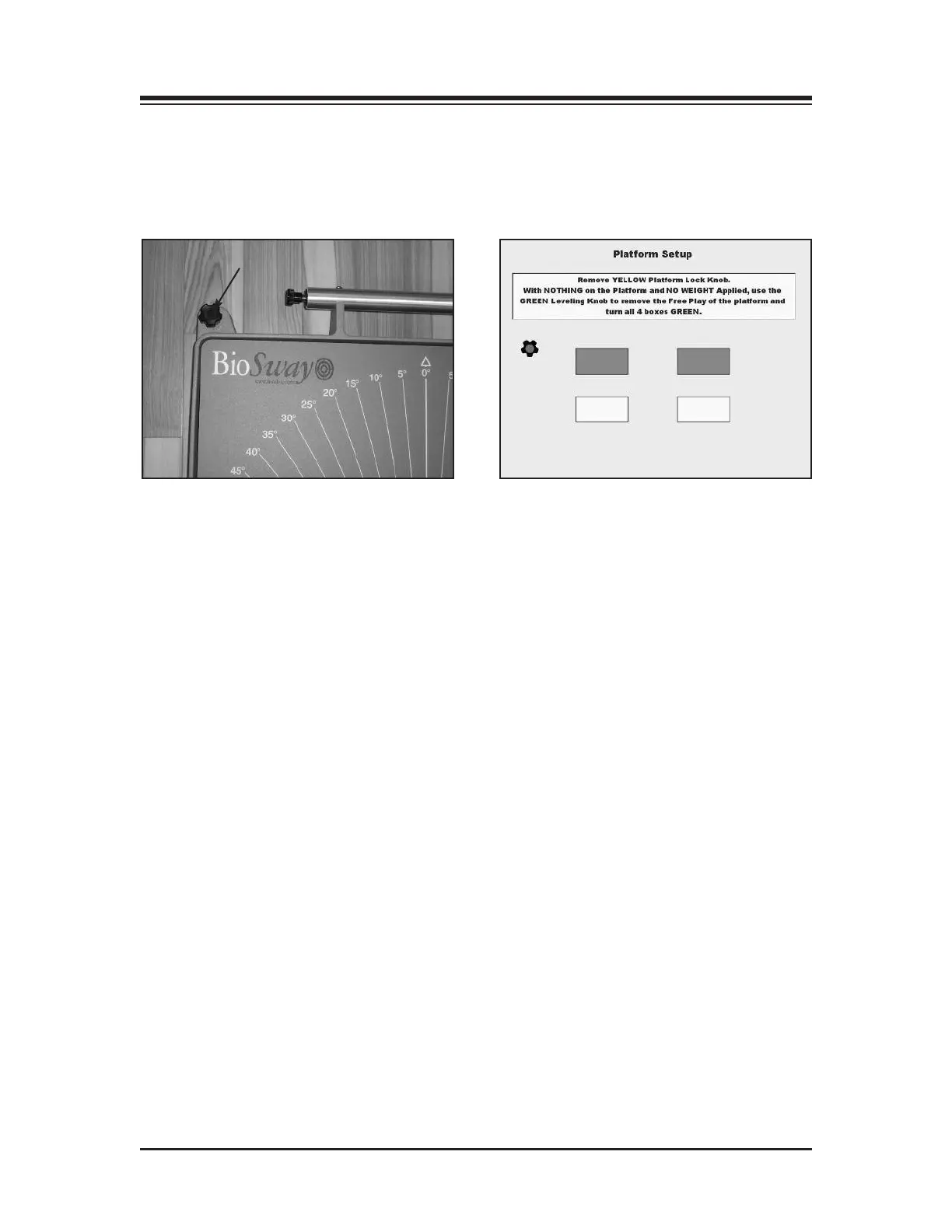

Figure 3.8. Figure 3.9.
Figures 3.8 and 3.9. Use the Adjustment Knob to compensate for floor irregularities when leveling the
platform. When all four boxes on the display are green, the platform is level.
X
CONNECTIONS AND ADJUSTMENTS — 3-4 —
Adjustment Knob
