Item Function
1. LCD Screen Your recorded blood pressure, heart rate and time
are displayed here.
2. USB Port Connect to your PC.
3. AC/DC Socket Connect to adapter.
4. Memory Button
Press to view the previously recorded data.
5. Start/Stop Button
Press to start or stop recording your blood pressure.
6. Time Button
Press to set or view current date and time or to
change the user.
7. Arm Cuff Connection Connect to the upper arm cuff here and place the
cuff around your arm to measure your blood pres-
sure.
8. Battery Compartment Insert the four “AA” batteries here.
9. Upper Arm Cuffs Standard cuff for arm circumference 22-32 cm.
Large cuff for arm circumference 32-42 cm.
(Fits into compartment on unit).

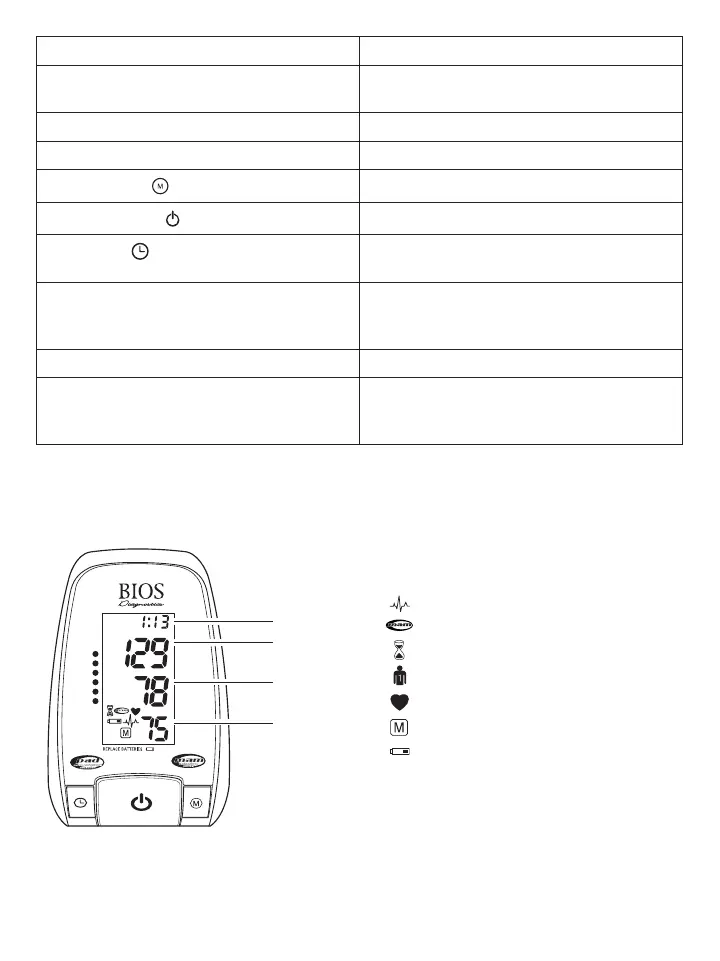

2.2 About the LCD Screen
The LCD screen displays the systolic and diastolic blood pressure measurements along with your heart rate. It
also displays previously recorded measurements and the date and time, when the appropriate button is pressed.
SYS.
mmHg
DIA.
mmHg
PULSE
/min
mmHg
mmHg
Time / Date
Systolic blood
pressure (mmHg)
Diastolic blood
pressure (mmHg)
Pulse rate
(beats/min)
MONTH-
DA
TE
TIME PM
Irregular heartbeat
MAM Averaging
Please wait in between measurements
User number
Heartbeat during measurement
Memory
Low battery
Symbol Guide
