8 | 第二章: 硬件安装
2�2 散热片
<类型A>

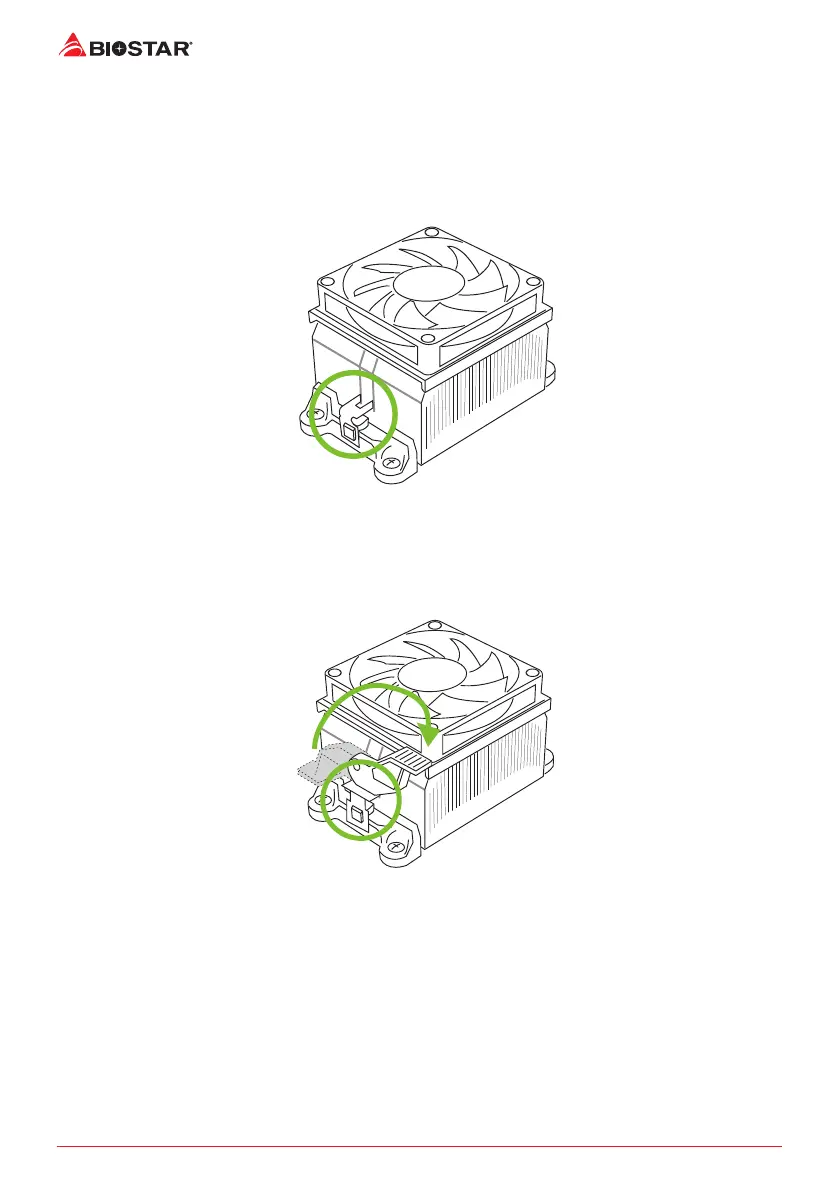

步骤 1: 将散热片和风扇组件放置在支架上。散热片夹对准插座固定凸耳，再将弹簧夹扣
到固定凸耳上。
步骤2: 将另一边的固定夹向下压，扣住支架上的塑胶凸耳。然后固定，使风扇和散热片
扣住支架底座。
