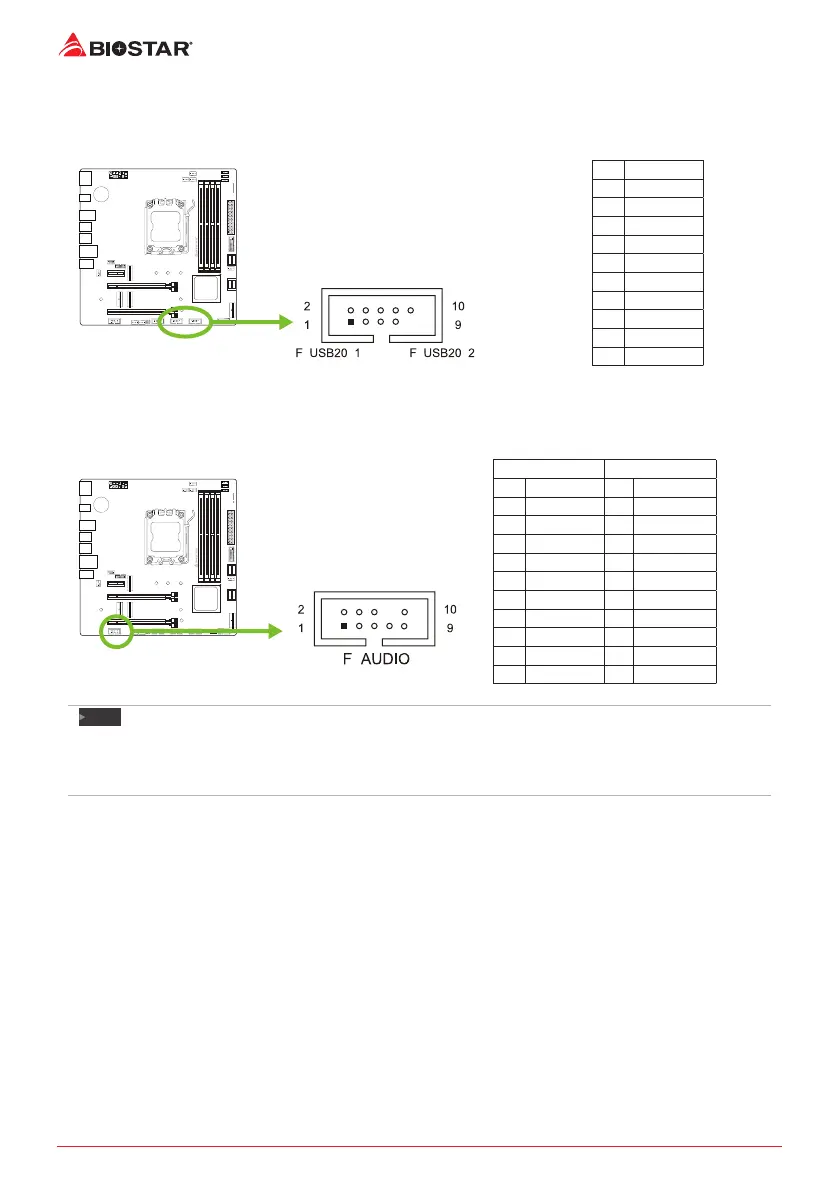

F_USB20_1/ F_USB20_2: Header for USB 2.0 Ports at Front Panel

This header allows user to add addional USB ports on the PC front panel, and also can be

connected with a wide range of external peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

F_AUDIO: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD

and AC’97 audio standards.

HD Audio AC’97

Pin Assignment Pin Assignment

1 Mic Le in 1 Mic In

2 Ground 2 Ground

3 Mic Right in 3 Mic Power

4 GPIO 4 Audio Power

5 Right line in 5 RT Line Out

6 Jack Sense 6 RT Line Out

7 Front Sense 7 Reserved

8 Key 8 Key

9 Le line in 9 LFT Line Out

10 Jack Sense 10 LFT Line Out

Note

It is recommended that you connect a high-denion front panel audio module to this connector to

avail of the motherboard’s high denion audio capability.

Please try to disable the “Front Panel Jack Detecon” if you want to use an AC’97 front audio output

cable. The funcon can be found via O.S. Audio Ulity.
