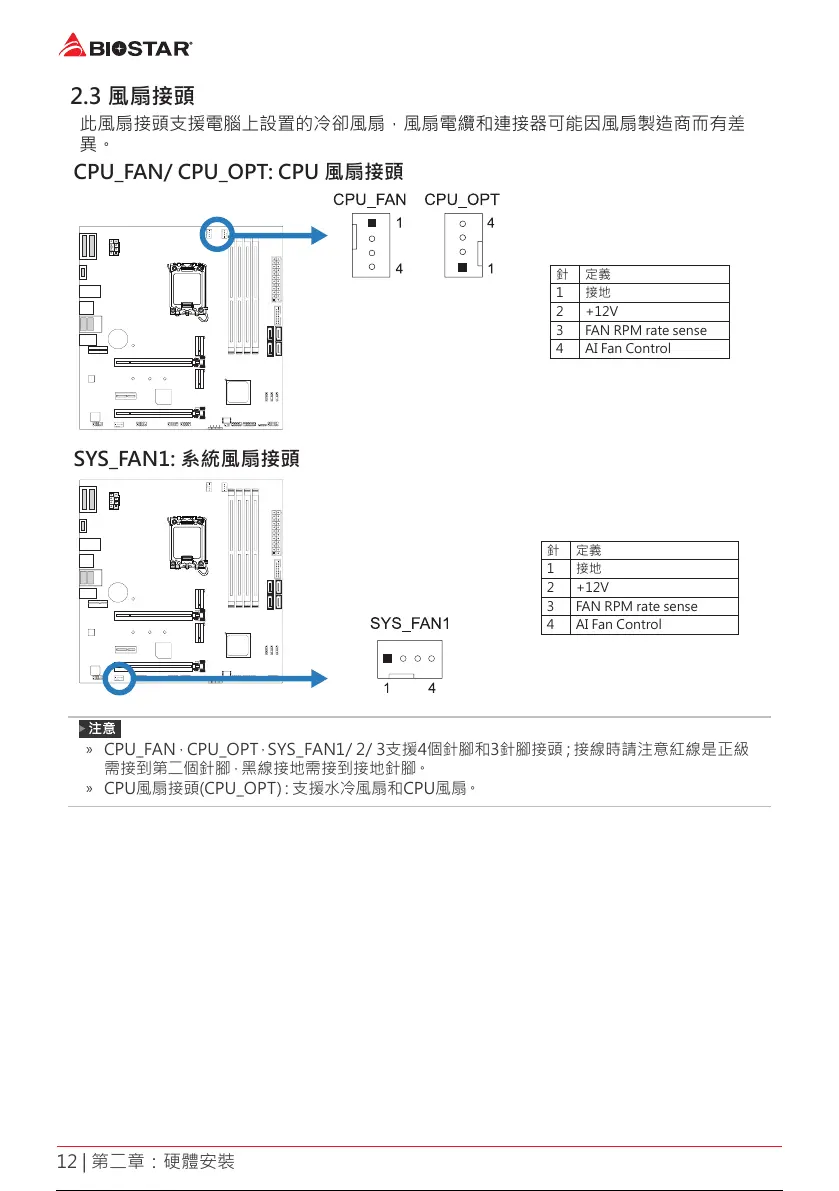

12 | 第二章：硬體安裝
2�3 風扇接頭
此風扇接頭支援電腦上設置的冷卻風扇，風扇電纜和連接器可能因風扇製造商而有差
異。
CPU_FAN/ CPU_OPT: CPU 風扇接頭
針 定義
1 接地
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
SYS_FAN1: 系統風扇接頭
針 定義
1 接地
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
»
CPU_FAN，CPU_OPT，SYS_FAN1/ 2/ 3支援4個針腳和3針腳接頭；接線時請注意紅線是正級
需接到第二個針腳，黑線接地需接到接地針腳。
»
CPU風扇接頭(CPU_OPT)：支援水冷風扇和CPU風扇。
122 / 147
