Biostar B660MX-E PRO User Manual

4 | Chapter 1: Introducon

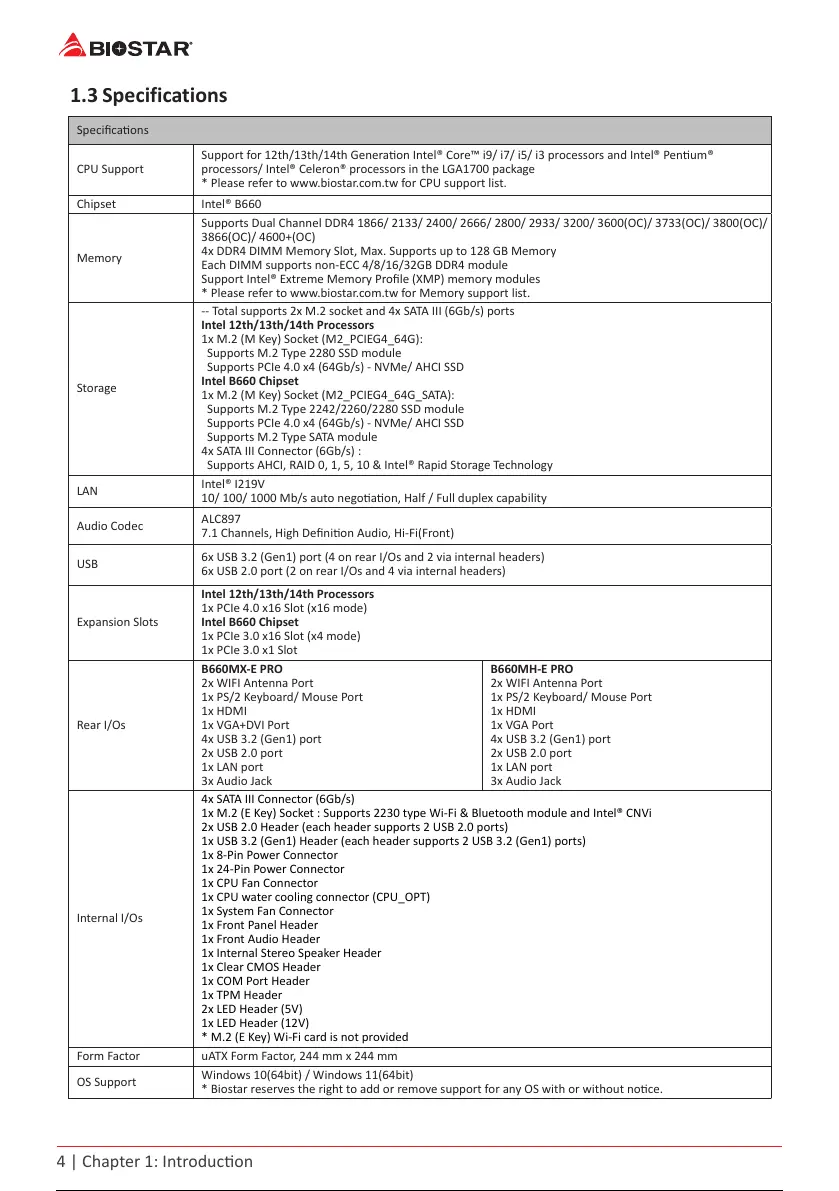

1�3 Specifications
Specicaons
CPU Support
Support for 12th/13th/14th Generaon Intel® Core™ i9/ i7/ i5/ i3 processors and Intel® Penum®
processors/ Intel® Celeron® processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.
Chipset Intel® B660
Memory
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/
3866(OC)/ 4600+(OC)
4x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel® Extreme Memory Prole (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
Storage
-- Total supports 2x M.2 socket and 4x SATA III (6Gb/s) ports
Intel 12th/13th/14th Processors
1x M.2 (M Key) Socket (M2_PCIEG4_64G):
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD
Intel B660 Chipset
1x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):
Supports M.2 Type 2242/2260/2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD
Supports M.2 Type SATA module
4x SATA III Connector (6Gb/s) :
Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology
LAN
Intel® I219V
10/ 100/ 1000 Mb/s auto negoaon, Half / Full duplex capability
Audio Codec
ALC897
7.1 Channels, High Denion Audio, Hi-Fi(Front)
USB
6x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers)
6x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
Expansion Slots
Intel 12th/13th/14th Processors
1x PCIe 4.0 x16 Slot (x16 mode)
Intel B660 Chipset
1x PCIe 3.0 x16 Slot (x4 mode)
1x PCIe 3.0 x1 Slot
Rear I/Os
B660MX-E PRO
2x WIFI Antenna Port
1x PS/2 Keyboard/ Mouse Port
1x HDMI
1x VGA+DVI Port
4x USB 3.2 (Gen1) port
2x USB 2.0 port
1x LAN port
3x Audio Jack
B660MH-E PRO
2x WIFI Antenna Port
1x PS/2 Keyboard/ Mouse Port
1x HDMI
1x VGA Port
4x USB 3.2 (Gen1) port
2x USB 2.0 port
1x LAN port
3x Audio Jack
Internal I/Os
4x SATA III Connector (6Gb/s)
1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x CPU water cooling connector (CPU_OPT)
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Internal Stereo Speaker Header
1x Clear CMOS Header
1x COM Port Header
1x TPM Header
2x LED Header (5V)
1x LED Header (12V)
* M.2 (E Key) Wi-Fi card is not provided
Form Factor uATX Form Factor, 244 mm x 244 mm
OS Support
Windows 10(64bit) / Windows 11(64bit)
* Biostar reserves the right to add or remove support for any OS with or without noce.
