Chapter 2: Hardware installaon | 13
B660MX-E PRO I B660MH-E PRO

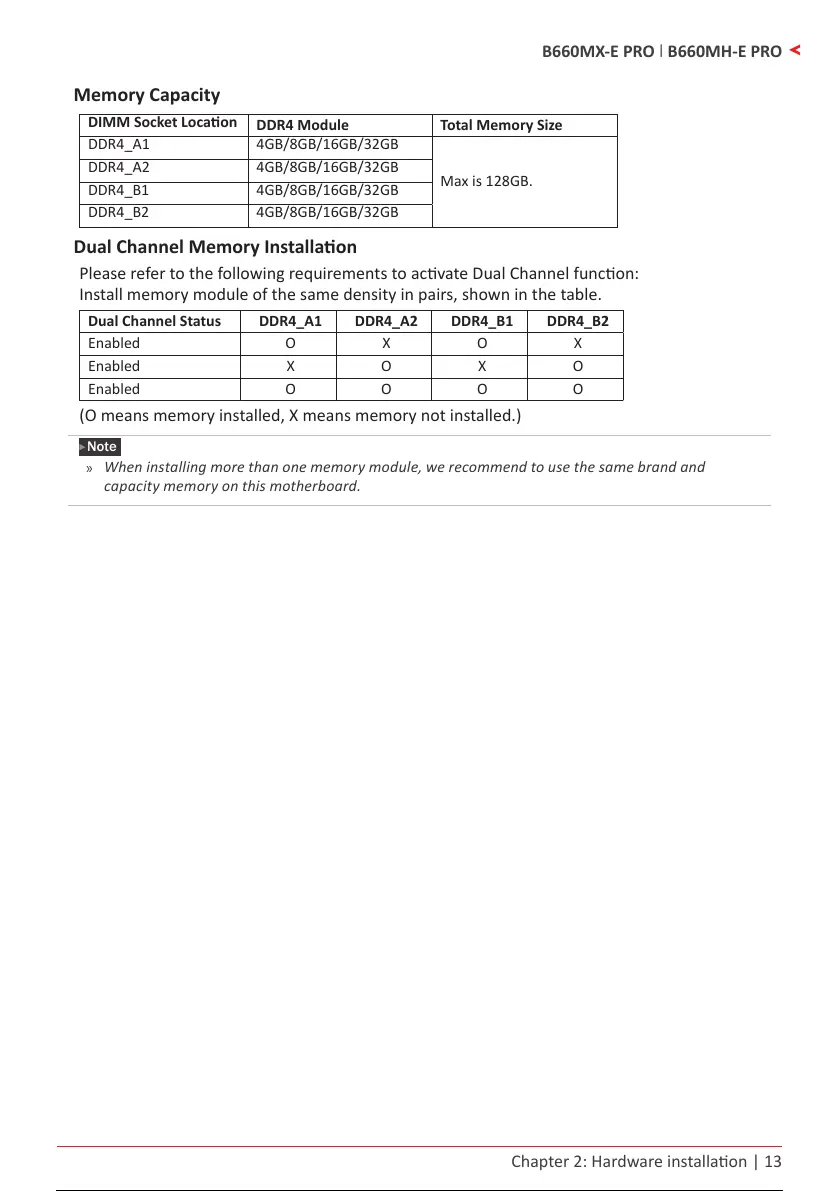

Memory Capacity
DIMM Socket Locaon
DDR4 Module Total Memory Size
DDR4_A1 4GB/8GB/16GB/32GB
Max is 128GB.
DDR4_A2 4GB/8GB/16GB/32GB
DDR4_B1 4GB/8GB/16GB/32GB
DDR4_B2 4GB/8GB/16GB/32GB
Dual Channel Memory Installaon
Please refer to the following requirements to acvate Dual Channel funcon:
Install memory module of the same density in pairs, shown in the table.
Dual Channel Status DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
Enabled O X O X
Enabled X O X O
Enabled O O O O
(O means memory installed, X means memory not installed.)
Note
»
»
When installing more than one memory module, we recommend to use the same brand and
capacity memory on this motherboard.
