Chapter 2: Hardware installaon | 19
B660MX-E PRO I B660MH-E PRO

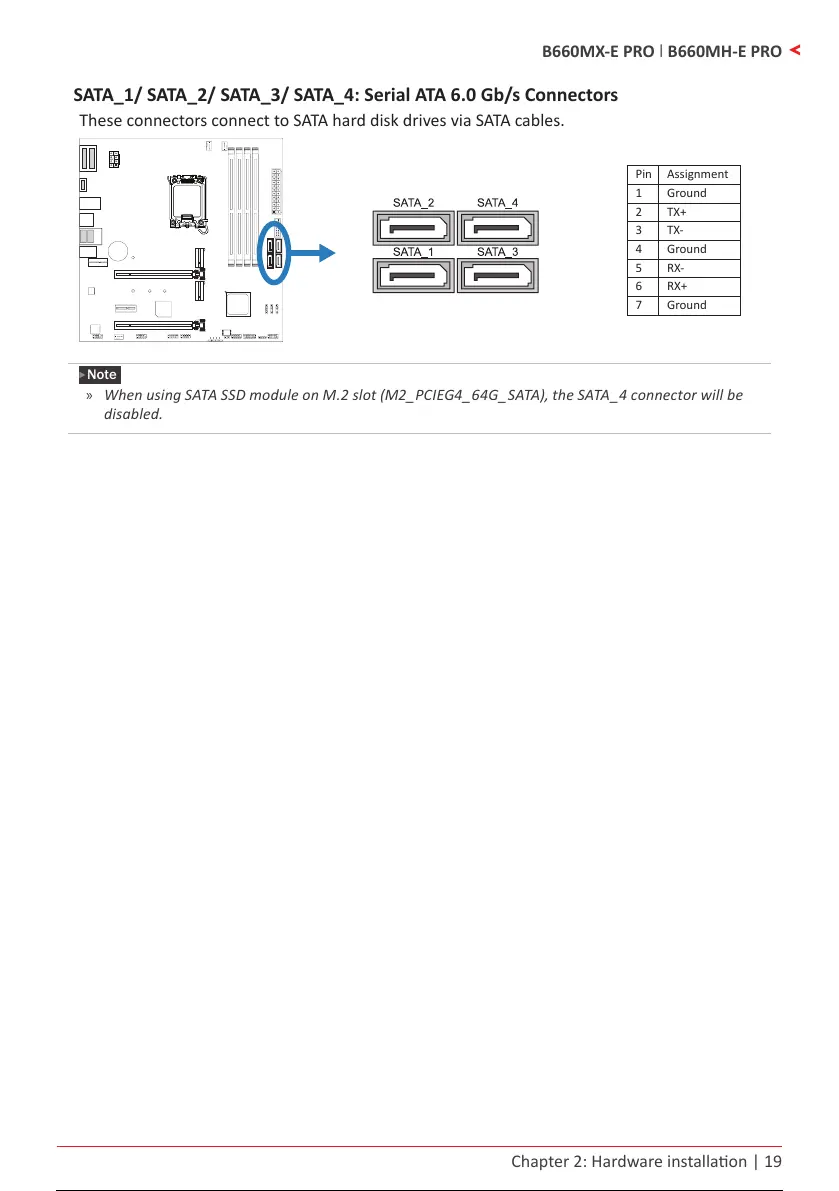

SATA_1/ SATA_2/ SATA_3/ SATA_4: Serial ATA 6.0 Gb/s Connectors
These connectors connect to SATA hard disk drives via SATA cables.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
Note
» 
»
When using SATA SSD module on M.2 slot (M2_PCIEG4_64G_SATA), the SATA_4 connector will be 
disabled.
