User’s Manual
16

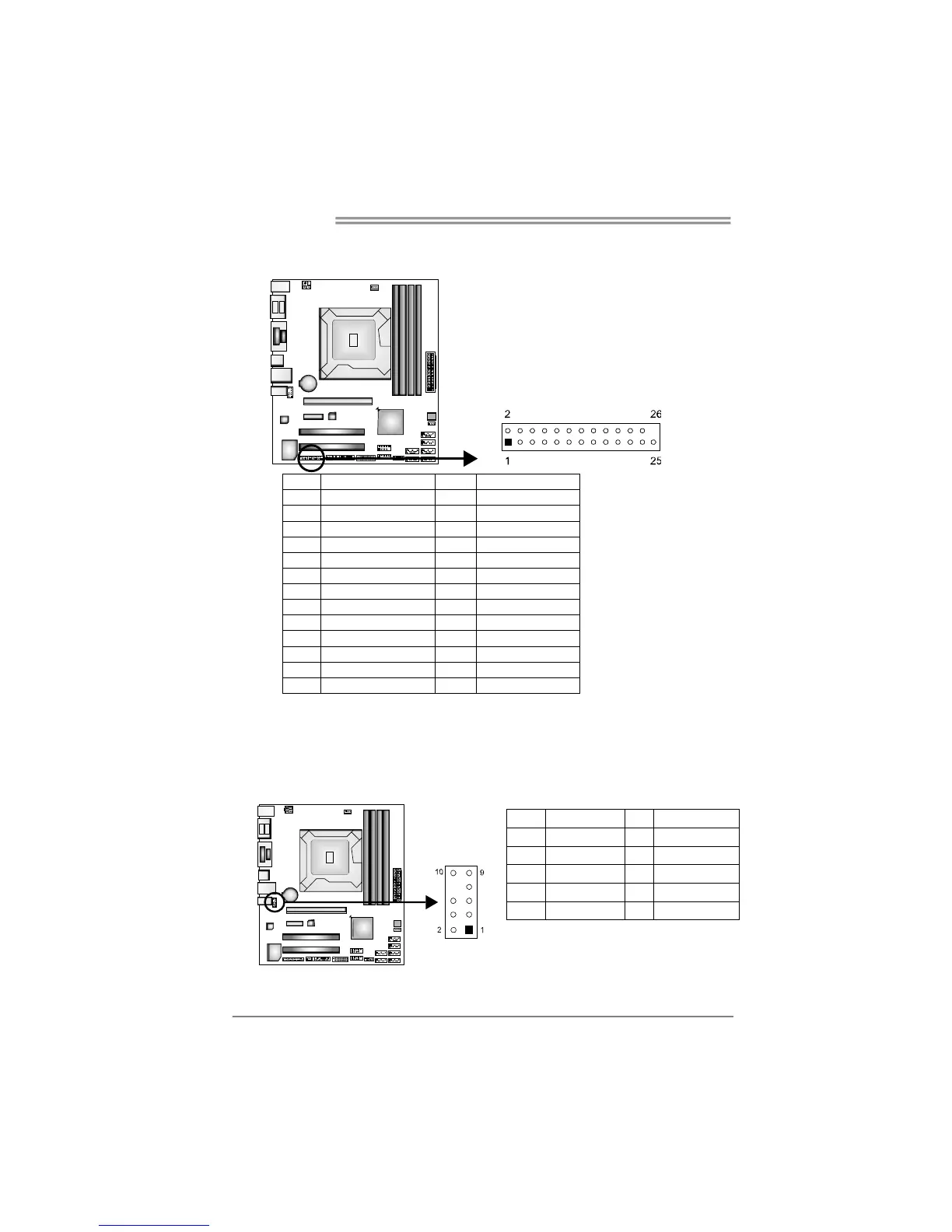

JPRNT1: Printer Port Connector
This header allows you to connect printer port on the PC.
Pin Assignment Pin Assignment
1 -Strobe 2 -ALF
3 Data 0 4 -Error
5 Data 1 6 -Init
7 Data 2 8 -Scltin
9 Data 3 10 Ground
11 Data 4 12 Ground
13 Data 5 14 Ground
15 Data 6 16 Ground
17 Data 7 18 Ground
19 -ACK 20 Ground
21 Busy 22 Ground
23 PE 24 Ground
25 SCLT 26 Key
F_AUDIO1: Front Panel Audio Header
This is an interface for the front panel audio cable that allows convenient
connection and control of audio devices. This header allows only HD audio front
panel connector; AC’97 connector is not acceptable..
Pin Assignment Pin Assignment
1 Mic Left in 2 Ground
3 Mic Right in 4 Present Sense
5 Right line out 6 GND_AUD
7 Front Sense 8 Key
9 Left line out 10 GND_AUD
