Specification
USB2.0 Port x4
USB3.0 Port x2
RJ-45 Port x1
Audio Jack x3
Board Size 220 mm (W) x 244 mm (L) microATX
Operation Temperature 0°C ~ 60°C
Storage Temperature -20°C ~ 80°C
Relative Humidity 10% ~ 90% (non-condensing)
Watchdog Timer Yes (65536 segments)
RoHS Compliant Yes
OS Support
Windows* 7(32/64bit) & embedded, Window XP & XP Embedded,
WinCE, Linux, Intel® Embedded Graphics Drivers Version 10(Support by
Intel EIA IEGD tools)
Biostar reserves the right to add or remove support for any OS with or
without notice.

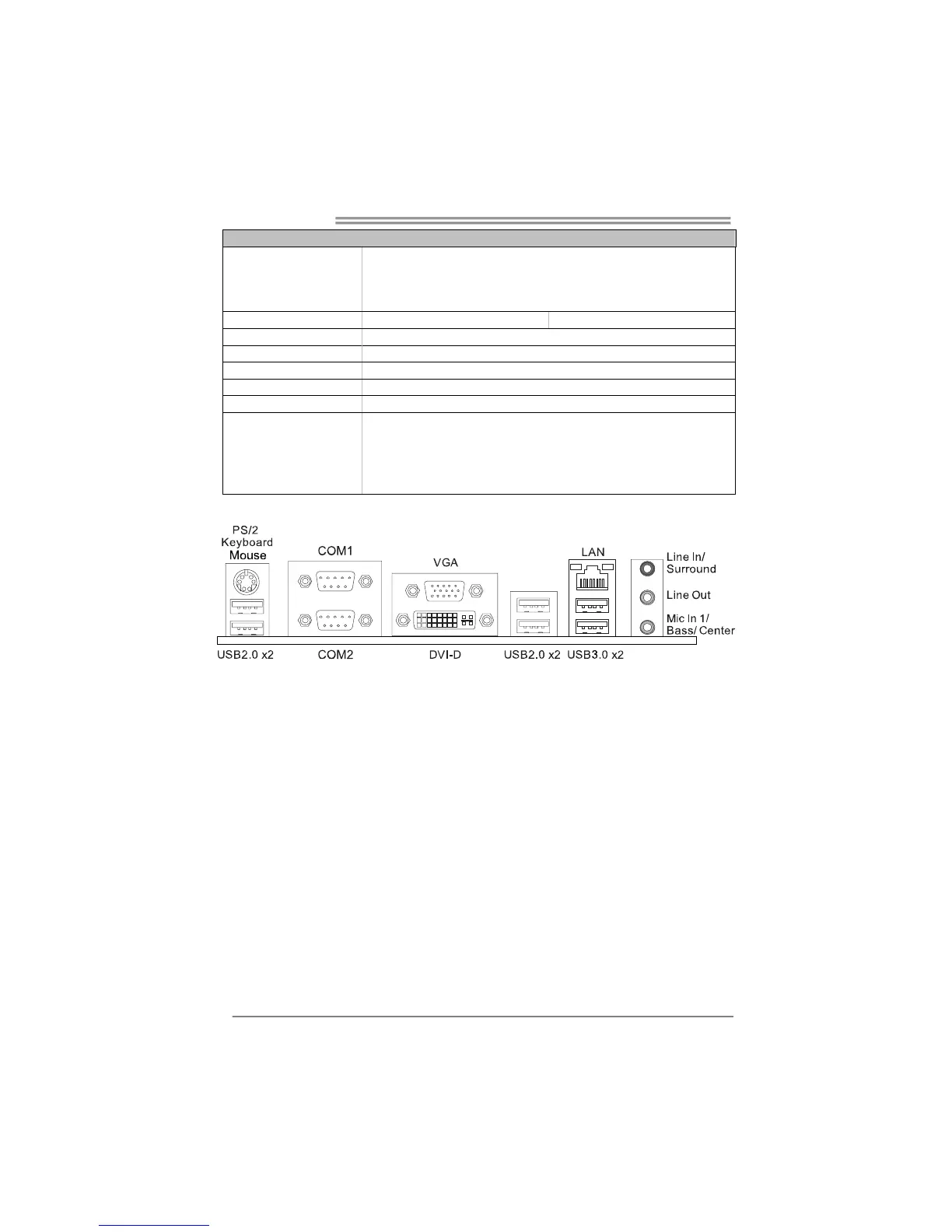

1.4 REAR PANEL CONNECTORS
Note1: DVI-D / VGA Output require an Intel Core family processor with Intel Graphics Technology.
Note2: Since the audio chip supports High Definition Audio Specification, the function of each
audio jack can be defined by software. The input / output function of each audio jack listed
above represents the default setting. However, when connecting external microphone to
the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.
Note3: Maximum resolution:
VGA: 2048 x 1536 @75Hz
DVI: 1920 x 1200 @60Hz
