Biostar G41D3 Setup Manual

Motherboard Manual
14

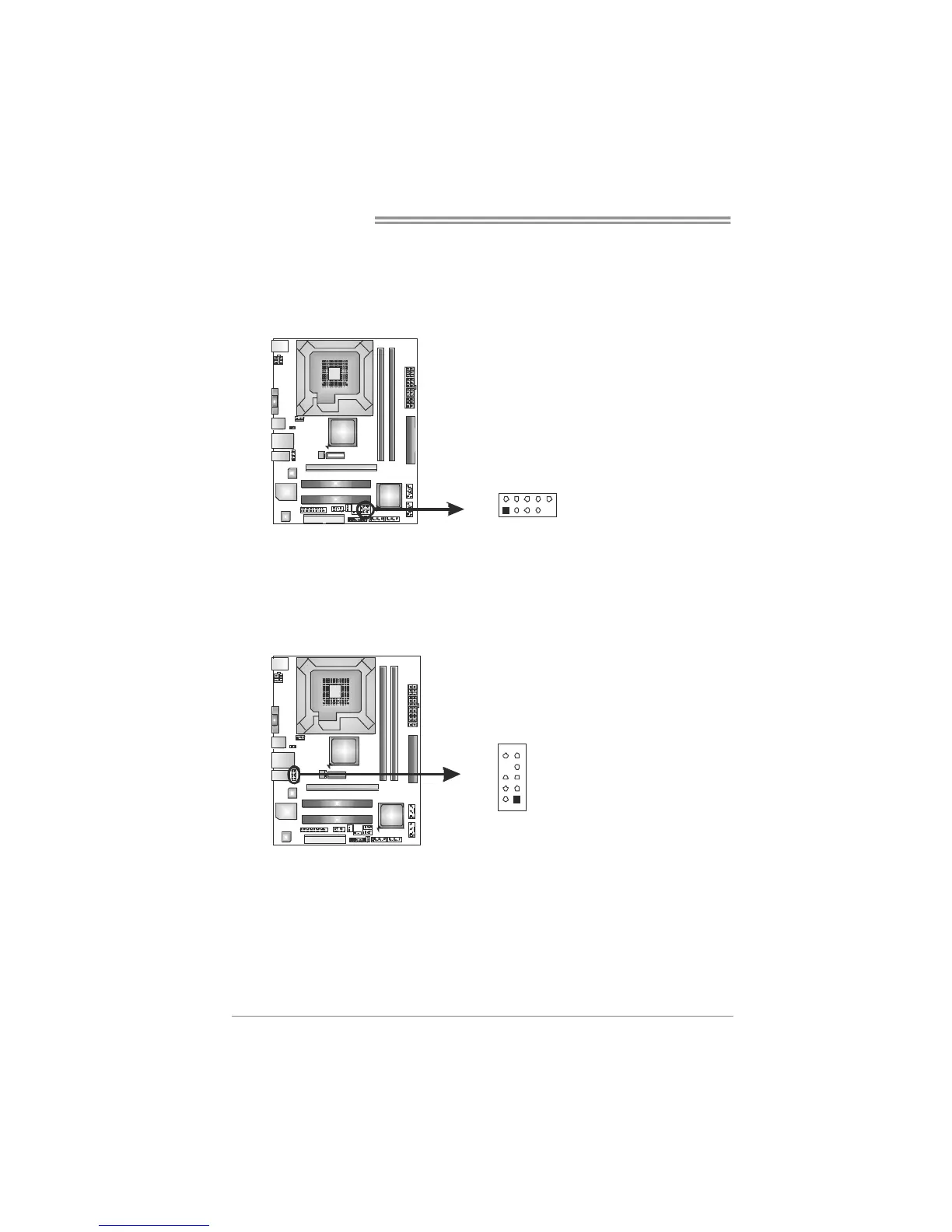

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel
This motherboard provides 2 USB 2.0 headers, which allows user to connect
additional USB cable on the PC front panel, and also can be connected with
internal USB devices, like USB card reader.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
19
210
F_USB1
F_USB2
10 NC
F_AUDIO1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector; AC’97 connector
is not acceptable.
Pin Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
1
9
2
10

Biostar G41D3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
CPU Socket	LGA 775
Memory Type	DDR3
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	Realtek ALC662 6-Channel HD Audio
CPU Support	Intel Core 2 Quad, Core 2 Duo, Pentium Dual-Core, Celeron
Memory Slots	2 x DIMM
Memory Speed	1066/800 MHz
Expansion Slots	1 x PCIe x16, 1 x PCI
Rear Panel I/O Ports	1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x VGA, 4 x USB 2.0, 1 x RJ-45 LAN, 3 x audio jacks
