Biostar G41D3 Setup Manual

G41D3+/G41D3G+
17

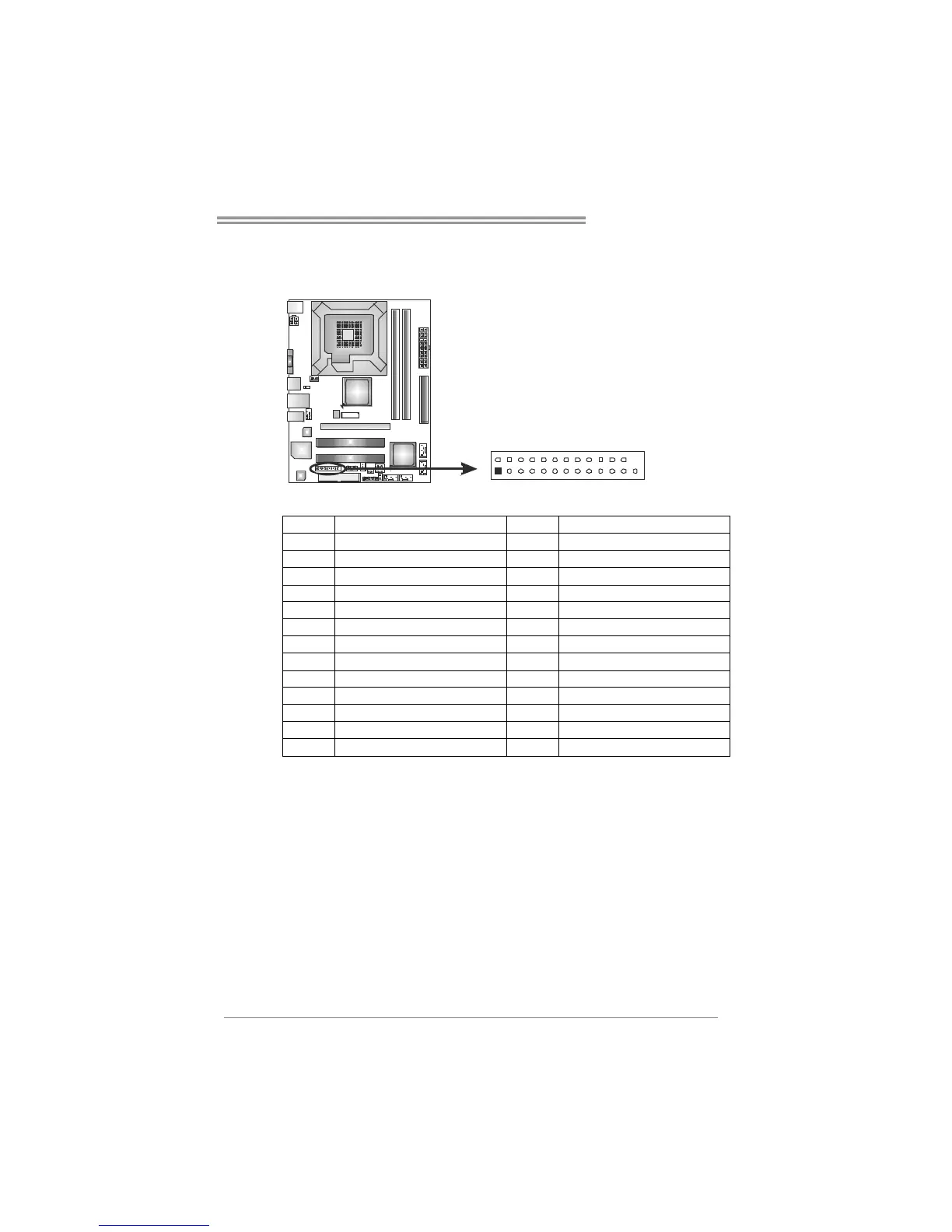

J_PRINT1: Printer Port Connector
This header allows you to connector printer on the PC.
1
2
25
26
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key

Biostar G41D3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
CPU Socket	LGA 775
Memory Type	DDR3
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	Realtek ALC662 6-Channel HD Audio
CPU Support	Intel Core 2 Quad, Core 2 Duo, Pentium Dual-Core, Celeron
Memory Slots	2 x DIMM
Memory Speed	1066/800 MHz
Expansion Slots	1 x PCIe x16, 1 x PCI
Rear Panel I/O Ports	1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x VGA, 4 x USB 2.0, 1 x RJ-45 LAN, 3 x audio jacks
