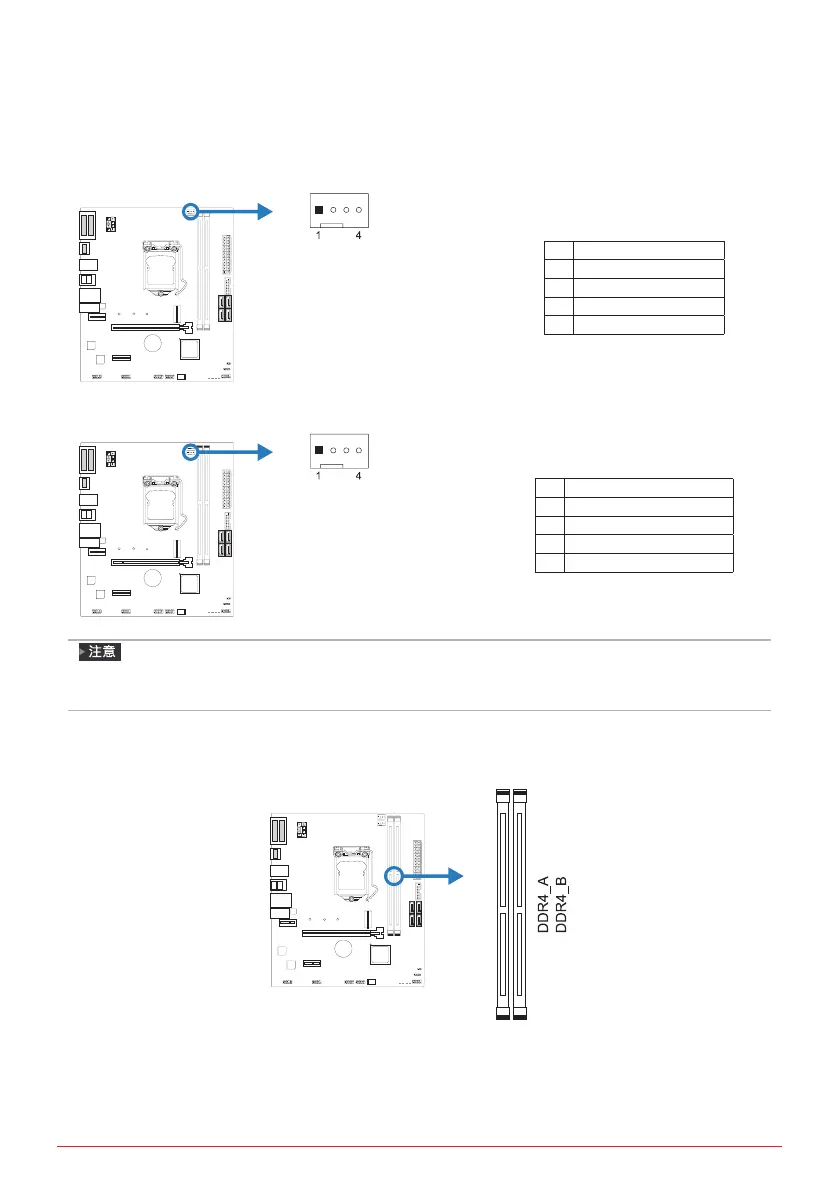

第二章: 硬體安裝 | 13
2�3 風扇接頭
此風扇接頭支援電腦上設置的冷卻風扇,風扇電纜和連接器可能因風扇製造商而有差
異。
CPU_FAN: CPU風扇接頭
定義
1 接地
2 +12V
3 FAN RPM rate sense
4 Fan Control
SYS_FAN1: 系統風扇接頭
定義
1 接地
2 +12V
3 FAN RPM rate sense
4 Fan Control
»
CPU_FANSYS_FAN1支援4個針腳和3針腳接頭接線時請注意紅線是正級需接到第二個針
黑線接地需接到接地針腳
2�4 系統記憶體
DDR4記憶體模組
