Chapter 2: Hardware installaon | 15

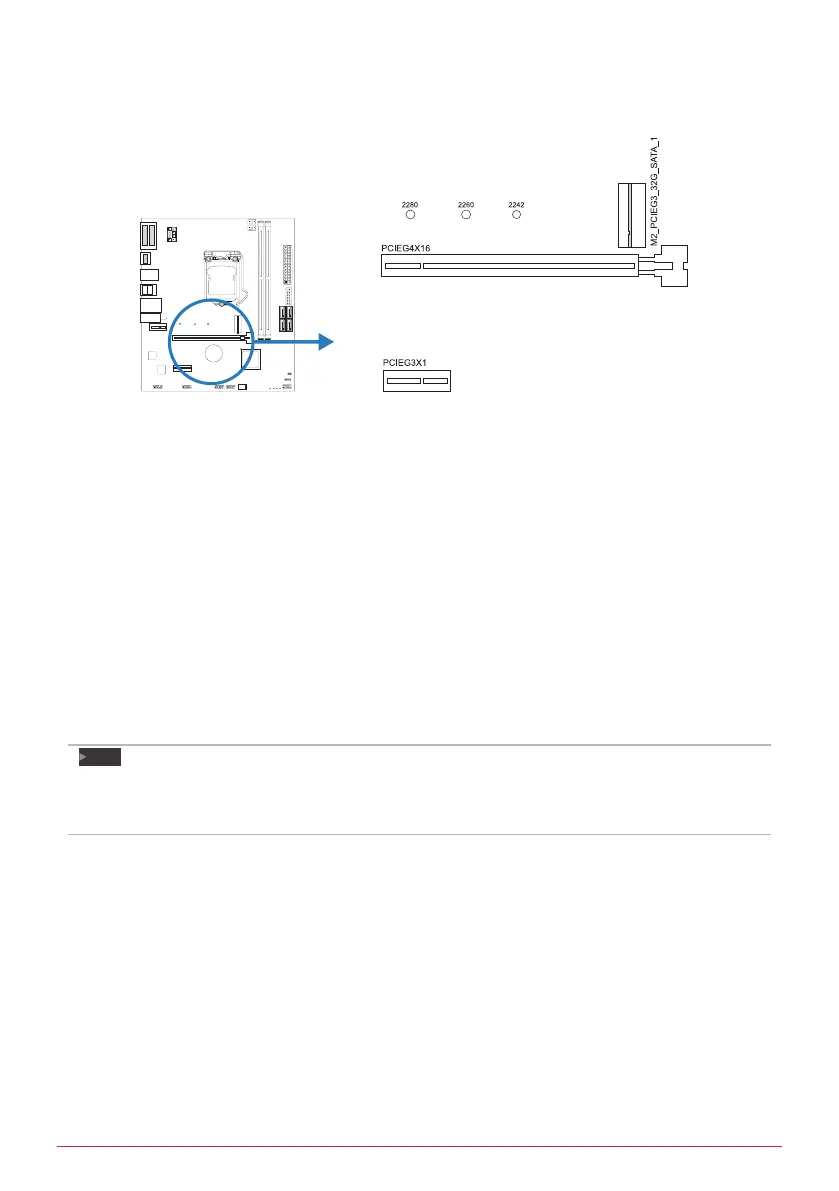

2.5 Expansion Slots
PCIEG4X16: PCI-Express Gen3/ Gen4 x16 Slot (x16 mode)
•  PCI-Express 3.0 compliant.
The maximum bandwidth of the PCIe slot is 32GB/s.
•  PCI-Express 4.0 compliant.
The maximum bandwidth of the PCIe slot is 64GB/s.
PCIEG3X1: PCI-Express Gen3 x1 Slots
•  PCI-Express 3.0 compliant.
•  Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in total.
M2_PCIEG3_32G_SATA_1: M.2 (M Key) Socket
•  The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD
module, please place the screw and hex pillar to correct posion.
•  Supports M.2 SATA III (6Gb/s) module and M.2 PCI Express module up to Gen3 x4
(32Gb/s) - NVMe & AHCI SSD
Note
 
»
ThePCIe4.0onlydependsonRocketLakeCPUs.
 
»
WhenusingSATASSDmoduleonM.2slot(M2_PCIEG3_32G_SATA_1),theSATA_1connectorwillbe
disabled.
