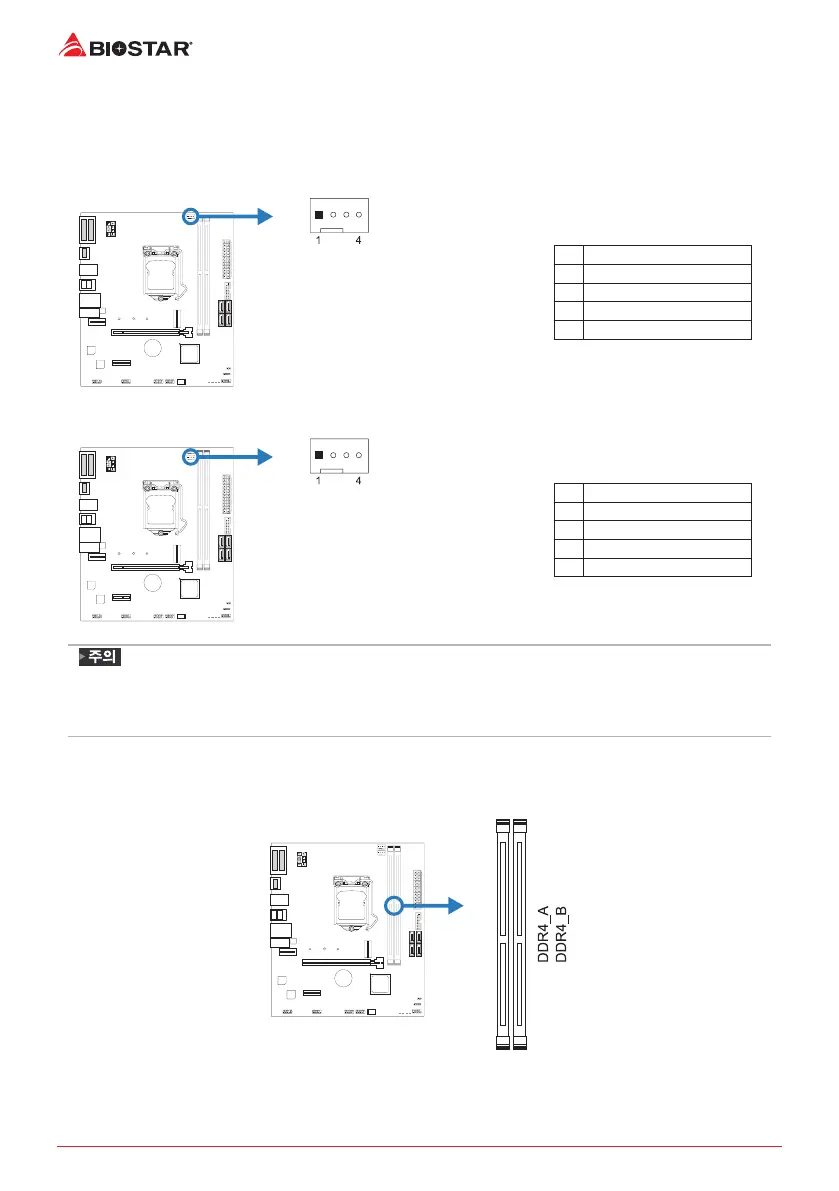

14 | 챕터 2: 하드웨어 설치
2�3 쿨링 팬 연결
쿨링 팬 헤더에 쿨링 팬을 연결하여 컴퓨터에 장착하게 됩니다. 팬 케이블과 커넥터는
팬 제조사에 따라 달라질 수 있습니다.
CPU_FAN: CPU 팬 헤더
배열
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
SYS_FAN1: 시스템 팬 헤더
배열
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
» CPU_FAN/ SYS_FAN1 은4-pin과3-pin 헤드 커터를 지원합. 커에 전선을 연결할 때,
붉은 색 전이 플러스(+)이고 핀#2에 반드시 연록 주의하여 주십오. 검은 색 전
그라운이고 핀#1(GND)에 연야 합니.
2�4 시스템 메모리 설치
DDR4 모듈
