Biostar H61MH User Manual

Motherboard Manual
10

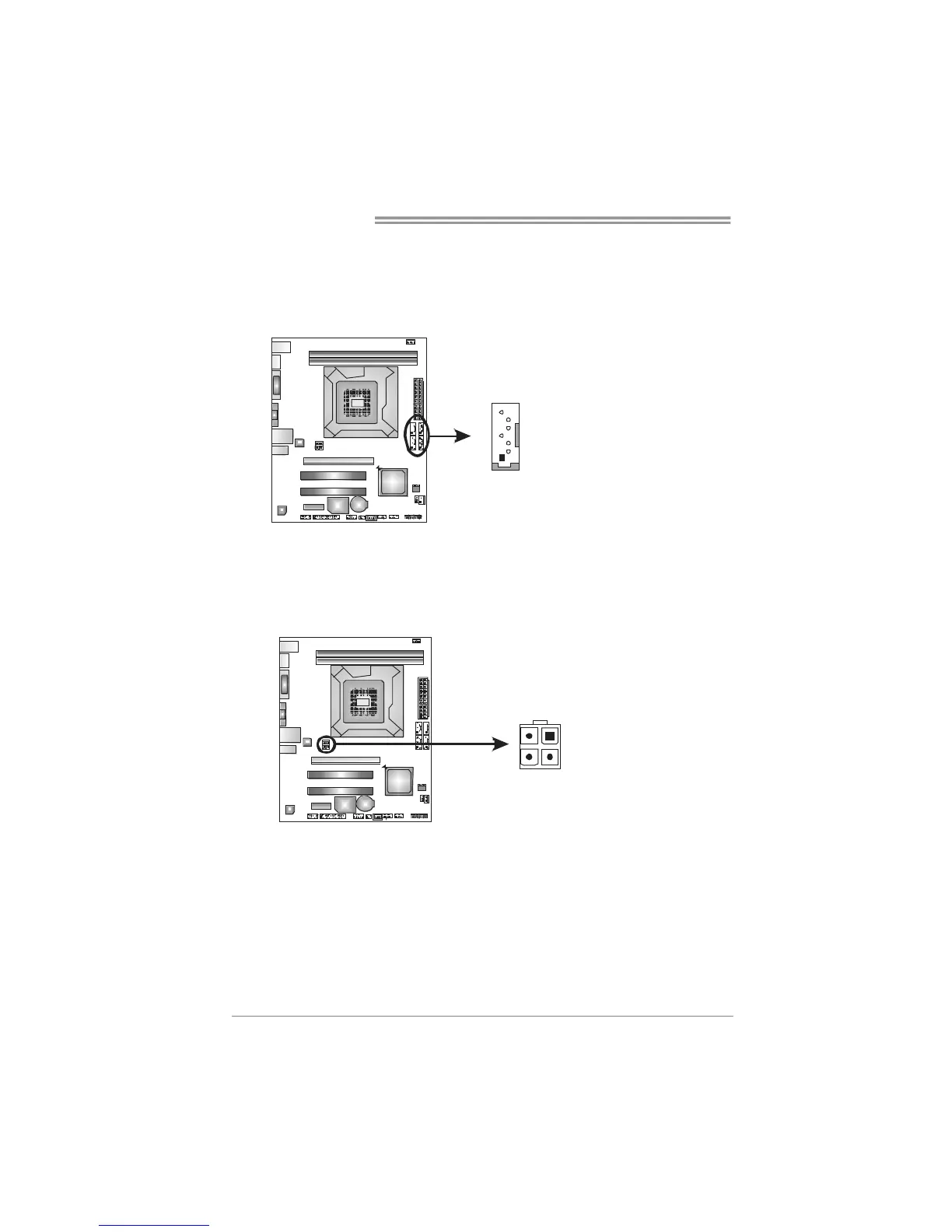

2.4 CONNECTORS AND SLOTS
SATA1~SATA4: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 4channels SATA interface, it
satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
1
4
7
SATA 1 S ATA 3
SATA 2 S ATA 4
7 Ground
ATXPWR2: AT X Power Source Connector
This connector provides +12V to CPU power circuit.
Pin Assignment
1 +12V
2 +12V
3 Ground
12
34
4 Ground

Biostar H61MH Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Maximum Memory	16 GB
Memory Type	DDR3
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC662 6-Channel HD Audio
LAN	Realtek RTL8111E Gigabit LAN
Memory Standard	DDR3 1066/1333
Expansion Slots	1 x PCIe 2.0 x1, 1 x PCI
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Video Outputs	1 x VGA
Power Connector	24-pin ATX
