Biostar H61MLC User Manual

H61MGC / H61MLC
3
H61 MG C H61 MLC
Printer Port Connector x1 Printer Port Connector x1
Serial Port Connector x1 Serial Port Connector x1
SATA Connector x4 SATA Connector x4
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
CPU Fan Header x1 CPU Fan Header x1
System Fan Header x1 System Fan Header x1
Clear C MOS Header x1 Clear CMOS Header x1
USB 2.0 Connector x2 USB 2.0 Connector x2
Power Connector (24pin) x1 Power Connector (24pin) x1
On Board
Connectors
Power Connector (4pin) x1 Power Connector (4pin) x1
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB2.0 Port x4
Audio Jack x3
PS/2 Keyboard x1
PS/2 Mouse x1
VGA Port x1
LAN Port x1
USB2.0 Port x4
Audio Jack x3
Board Size
175 (W) x 226 (L) mm 175 (W) x 226 (L) mm
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS with or without notice
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS with or without notice

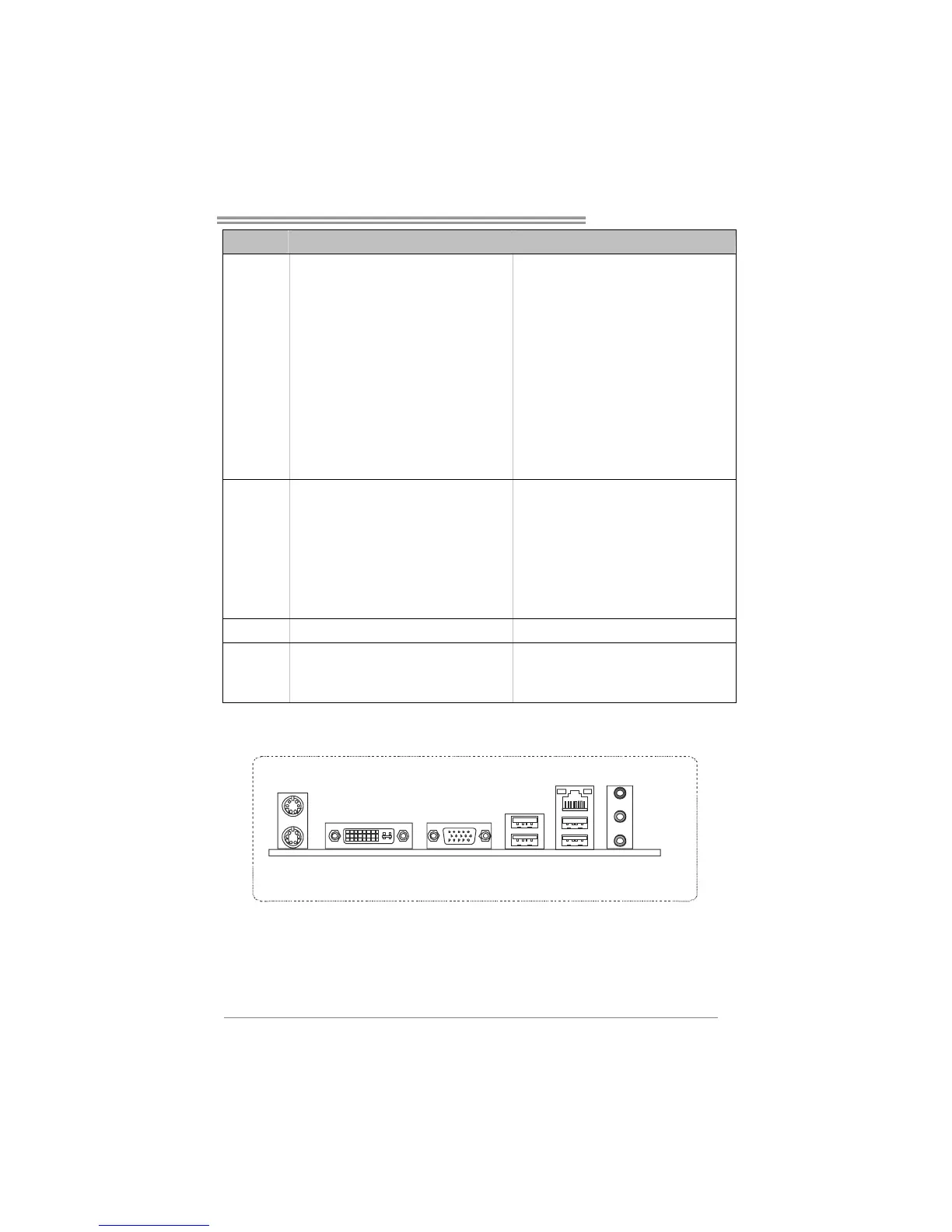

1.4 REAR PANEL CONNECTORS
USB2.0X2
LA N
VGADVI-D
Line In/
Surround
Line Out
Mic In 1 /
Bass/ Center
P S/2
Mouse
PS/2
Keyboard
USB2.0X2
(For H61MGC)
NOTE: DVI-D / VGA Output require an Intel Core family processor with Intel Graphics Technology.
NOTE: Maximum resolution:
DVI: 1920 x 1200 @60Hz
VGA: 2048 x 1536 @75Hz

Biostar H61MLC Specifications

General

Memory channels	Dual-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Power fan connector	Yes
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Audio chip	VIA VT1708B
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP, Vista, 7
Supported storage drive interfaces	SATA II
Cables included	SATA
Parallel processing technology support	Not supported
PCI Express slots version	2.0
LAN controller	Realtek RTL8105E
Networking features	Fast Ethernet
BIOS type	-

Weight and Dimensions

Depth	175 mm
Width	226 mm
