6
2-4 Memory Installation
The motherboards provide two 240-pin DDRIII DUAL INLINE MEMORY MODULES
(DIMM) sites for DDRIII memory expansion to maximum memory size of 8GB DDRIII
SDRAM.
Valid Memory Configurations
Bank 240-Pin DIMM PCS Maximum Capacity
DIMM1 DDRIII 800/DDRIII 1066/DDRIII 1333 X1 4GB
DIMM2 DDRIII 800/DDRIII 1066/DDRIII 1333 X1 4GB
Total System Memory (Max.4GB) 2 8GB
Recommend DIMM Module Combination
1.
One DIMM Memory Module ----Plug in DIMM1
2.
Two DIMM Memory Modules---Plug in DIMM1 and DIMM2 for Dual channel
function
Dual channel Limited!
1. Dual channel function only supports when 2 DIMM Modules plug in both DIMM1
& DIMM2.
2. Memory modules plugged in DIMM1 & DIMM2 must be of the same type, same
size, and same frequency for dual channel function.

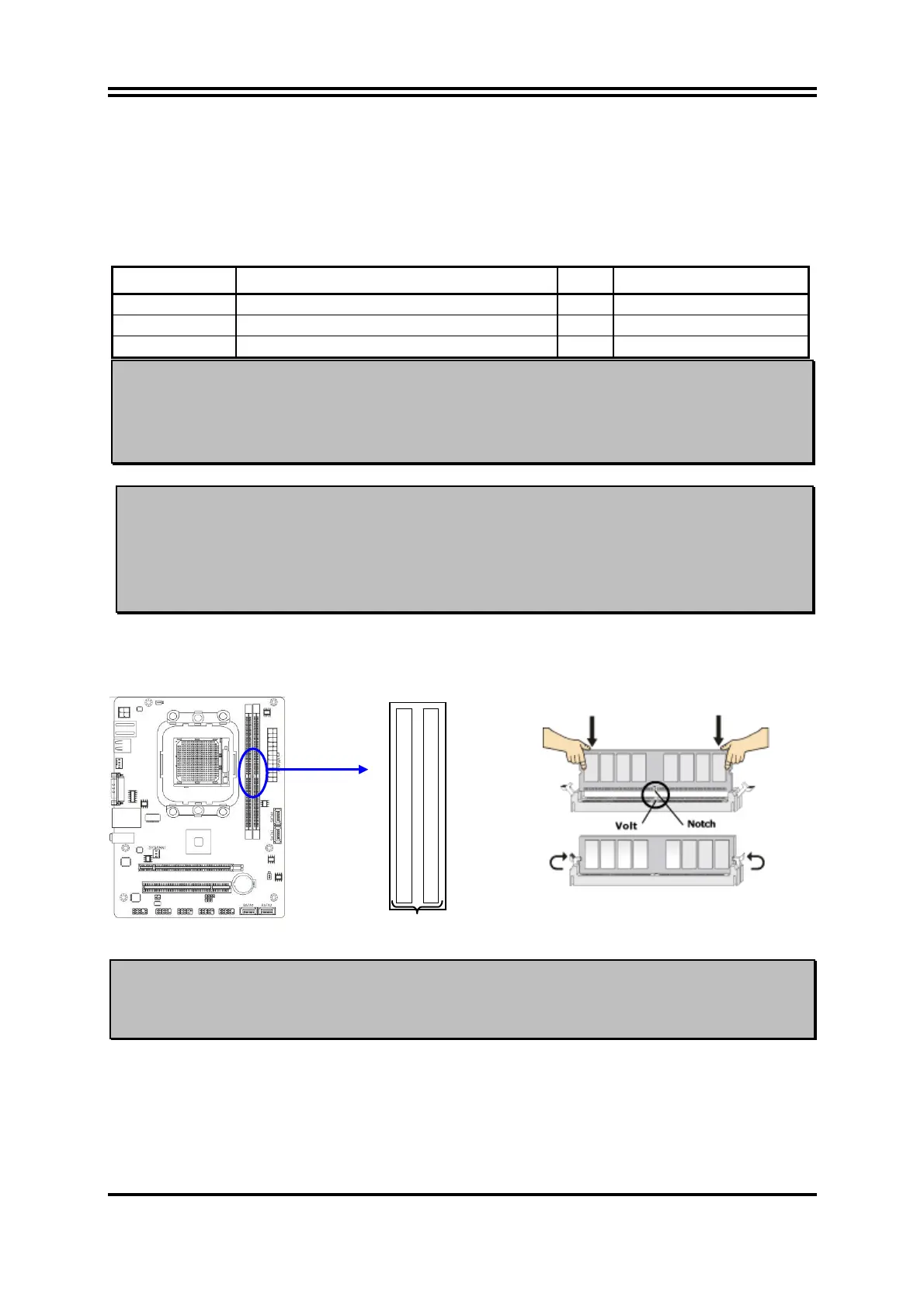

Generally, installing DDRIII modules to your motherboard is very easy, you can refer
to figure 2-4 to see what a 240-Pin DDRIII 800/DDRIII 1066/DDRIII 1333 SDRAM
module looks like.
NOTE!
When you install DIMM module fully into the DIMM socket the eject
tab should be locked into the DIMM module very firmly and fit into its
indention on both sides.
Fi
ure 2-4
DIMM2 (BANK2+BANK3)
DIMM1 (BANK0+BANK1)
DIMM1&DIMM2
For Dual Channel
