Biostar MCP6PB M2+ User Manual

MCP6PB M2+
13

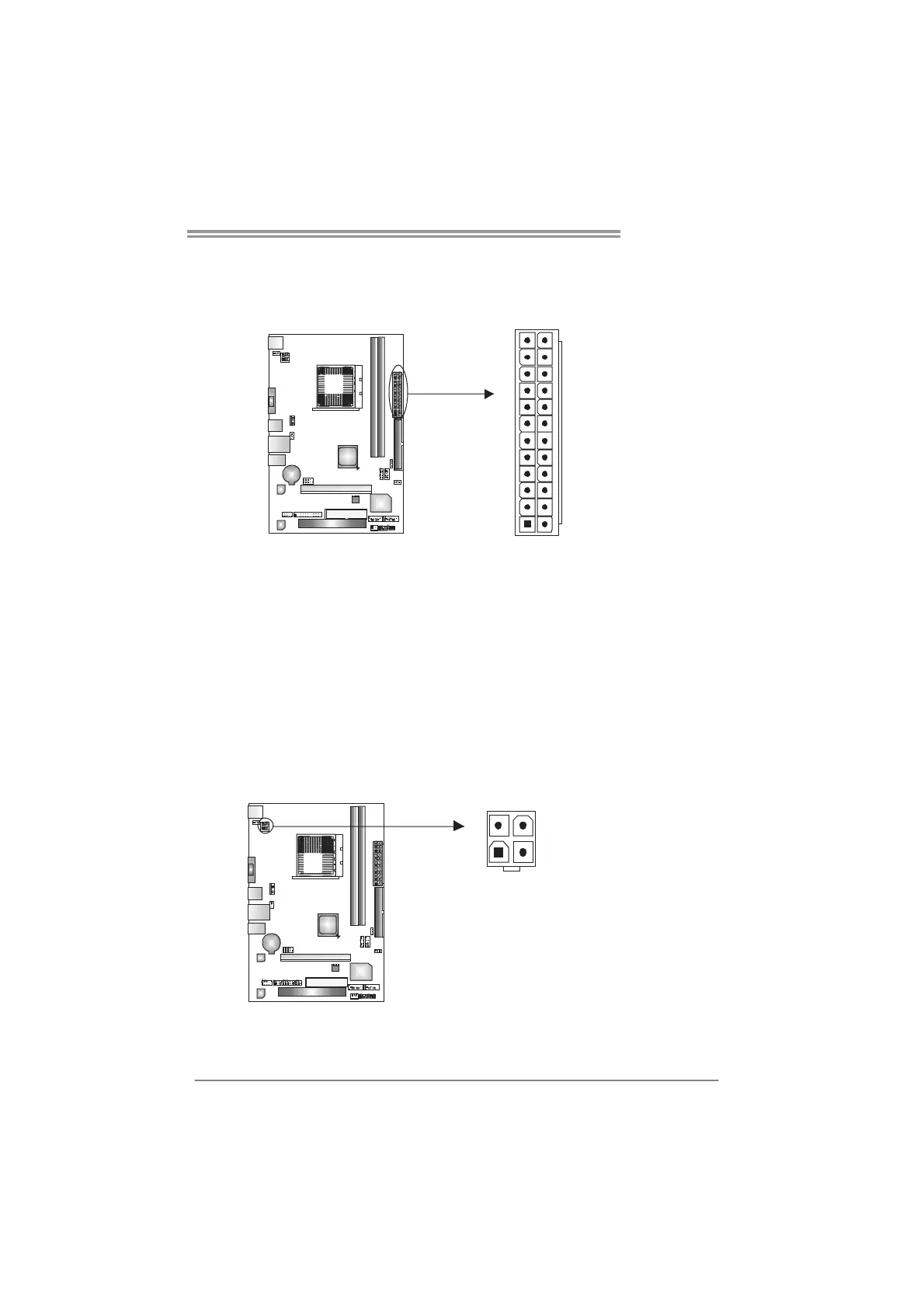

JATXPWR1: ATX Power Source Connector
This connector allows user to connect 24-pin power connector on the ATX
power supply.
24
13
12
1
Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
JATXPWR2: ATX Power Source Connector
By connecting this connector, it will provide +12V to CPU power circuit.
Pin Assignment
1 +12V
2 +12V
3 Ground
2
34
1
4 Ground
Note:
Before power on the system, please make sure that both JATXPWR1 and JATXPWR2
connectors have been plugged-in.

Biostar MCP6PB M2+ Specifications

General

Number of memory slots	2
Maximum internal memory	4 GB
Supported memory clock speeds	533, 667, 800 MHz
Processor socket	Socket AM2
Processor manufacturer	AMD
Power fan connector	Yes
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	4
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Certification	RoHS
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP/Vista
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8201CL
Networking features	Fast Ethernet
BIOS type	-

Weight and Dimensions

Depth	170 mm
Width	235 mm
